- Part number
- ZB4BA4
- Model no
- ZB4
- UL
- CSA
Harmony XB4Schneider Electric ZB4BA4 Harmony XB4 Push Button Head Metal Flush Red 22 mm Spring Return Push Button
Schneider Electric Harmony XB4 push button head, metal, red, 22 mm, spring return.
Description
About the ZB4
About the ZB4

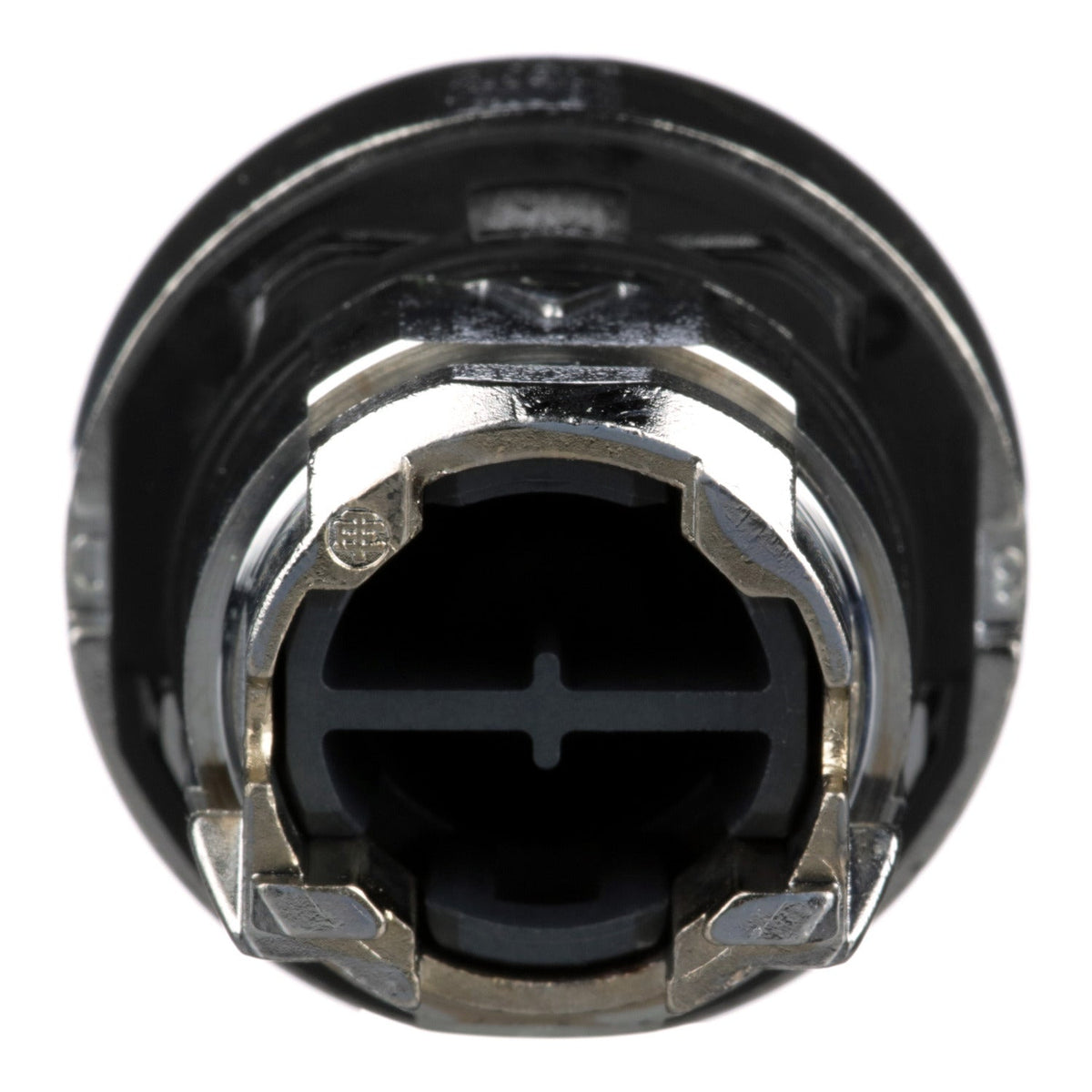

The Schneider Electric ZB4BA4 is a Harmony XB4 flush push-button head with a red chromium-plated metal bezel, unmarked, for a 22 mm panel cutout. It operates on a spring return action and snaps onto a Harmony XB4/ZB4 contact block, letting panel builders colour-code an operator function without buying a separate legend.
Certifications & Standards
- BV
- CSA
- DNV
- LROS
- UL Listed
- IEC 60947-1
- JIS C8201-5-1
- UL 508
- IEC 60947-5-1
- IEC 60947-5-4
- CSA C22.2 No 14
- IEC 60947-5-5
- JIS C8201-1
Selection Notes
The ZB4BA4's red bezel is unmarked, so it suits functions that are identified by panel layout or a separate legend plate rather than a moulded legend. It mounts on the same metal contact-block body as the rest of the XB4 colour range, so stocking several colours of this head covers multiple functions from one contact-block part number.
Specification
Full specification
Main 11
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush, unmarked |
| Cap/operator or lens colour | Red |
Complementary 6
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.1 in (28 mm) |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting |
| Device presentation | Basic element |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, JIS C8201-1 |
| Product Certifications | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB4BA4 |
|---|---|
| Type designation | ZB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887471 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.029 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
