Schneider Electric ZB4BA3 Harmony XB4 Push Button Head Metal Flush Green 22 mm Spring Return Push Button

% $-4.29

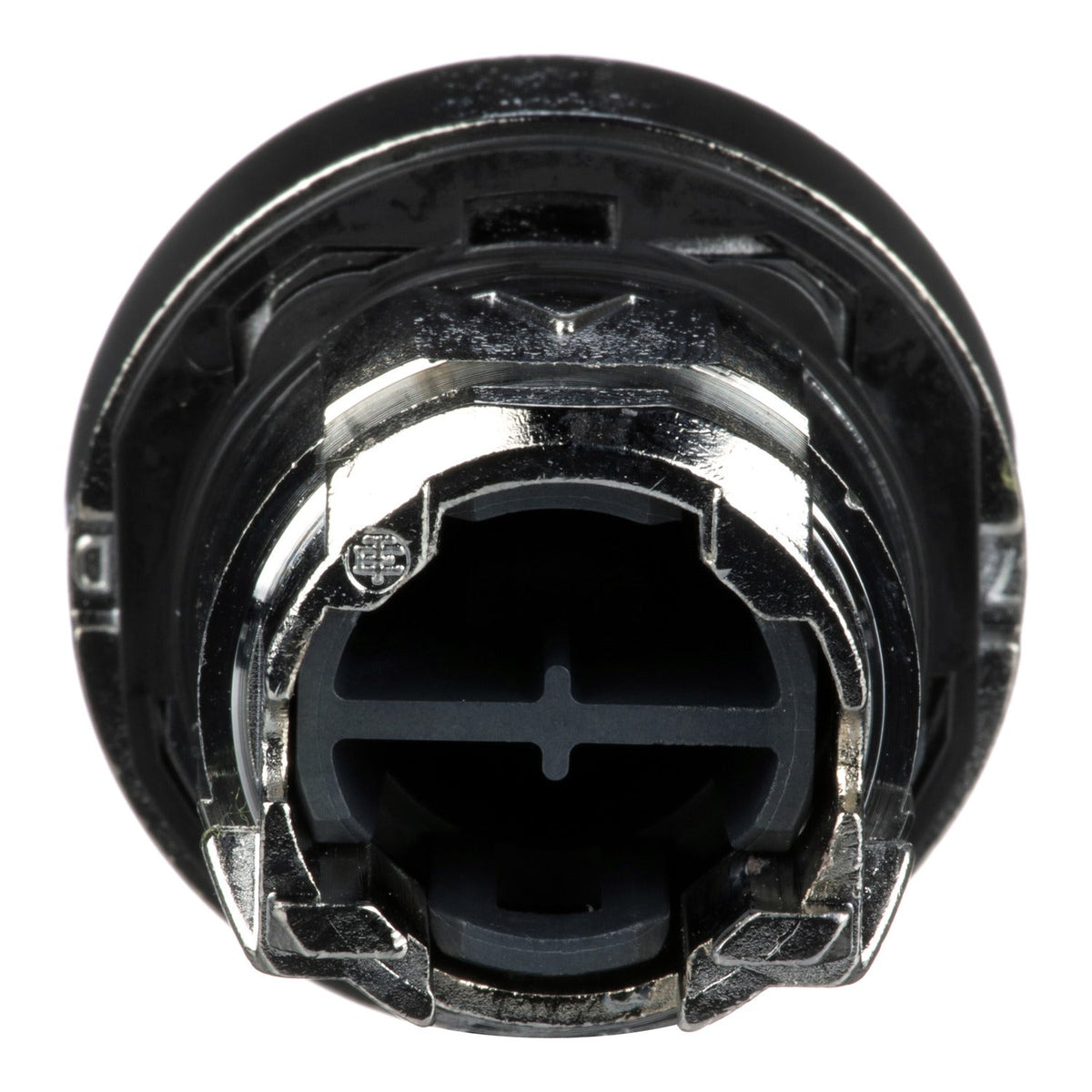

Schneider Electric ZB4BA3 Harmony XB4 push button head green
Schneider Electric ZB4BA3 Harmony XB4 push button head green

Schneider Electric ZB4BA3 Harmony XB4 Push Button Head Metal Flush Green 22 mm Spring Return Push Button

Brand: Schneider Electric
Reference No: ZB4BA3
Catalog No: ZB4BA3
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB4BA3 is a Harmony XB4 flush push-button head with a green chromium-plated metal bezel, unmarked, for a 22 mm panel cutout. It operates on a spring return action and snaps onto a Harmony XB4/ZB4 contact block, letting panel builders colour-code an operator function without buying a separate legend.

Technical Specifications

Reference ZB4BA3
Brand Schneider Electric
Range Harmony XB4
GTIN 3389110895742
Product or Component Type Head for non-illuminated push-button
Bezel Material Chromium plated metal
Mounting Diameter 22.5 mm
Type of Operator Spring return
Operator Profile Green flush, unmarked
CAD Overall Dimensions 29 x 29 x 28 mm (W x H x D)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
Enclosure Type UL type 4X/13
IK Degree of Protection IK06
Ambient Air Temperature for Operation -40… 70 °C

Certifications & Standards

  • BV
  • CSA
  • DNV
  • LROS
  • UL Listed
  • IEC 60947-1
  • JIS C8201-5-1
  • UL 508
  • IEC 60947-5-1
  • IEC 60947-5-4
  • CSA C22.2 No 14
  • IEC 60947-5-5
  • JIS C8201-1

Selection Notes

The ZB4BA3's green bezel is unmarked, so it suits functions that are identified by panel layout or a separate legend plate rather than a moulded legend. It mounts on the same metal contact-block body as the rest of the XB4 colour range, so stocking several colours of this head covers multiple functions from one contact-block part number.

Technical Details

Short Description
Schneider Electric Harmony XB4 push button head, metal, green, 22 mm, spring return.
Mounting Type
22 mm panel cutout, snap-fit onto ZB2/ZBE contact block
Protection Type
IP66 / IP67 / IP69 / IP69K
Catalog No
ZB4BA3
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
