Harmony XB4Schneider Electric ZB4BA0 Harmony XB4 Push Button Head Metal Flush 22 mm Spring Return Without Cap Push Button
Schneider Electric Harmony XB4 push button head, metal, 22 mm, spring return, without cap.
Description
About the ZB4
About the ZB4

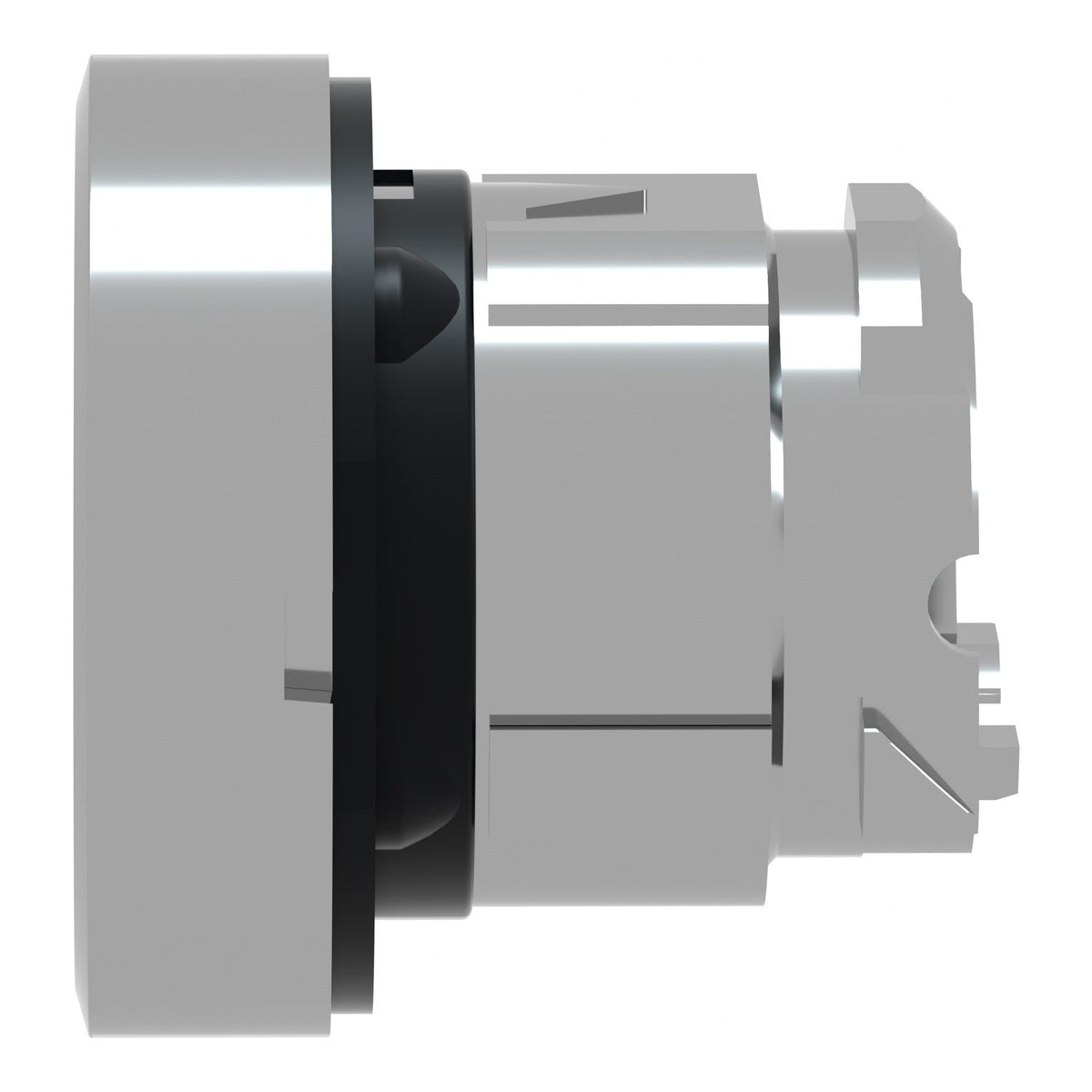

The Schneider Electric ZB4BA0 is a Harmony XB4 flush push-button head without a cap, sold bare so the panel builder can fit any compatible colour cap separately. It has a chromium-plated metal bezel, a 22 mm mounting diameter and a spring return action, and snaps onto a Harmony XB4/ZB4 contact block to form a complete pushbutton.
Certifications & Standards
- BV
- CSA
- DNV
- LROS
- UL Listed
- IEC 60947-1
- JIS C8201-5-1
- UL 508
- IEC 60947-5-1
- IEC 60947-5-4
- CSA C22.2 No 14
- IEC 60947-5-5
- JIS C8201-1
Selection Notes
The ZB4BA0 is the bare head with no cap fitted, so it only becomes a working pushbutton once a colour cap is pressed on and a ZB2/ZBE contact block is snapped onto the back — it suits stock programs where the colour is decided at assembly rather than at order time. Its chromium-plated metal bezel and IP66/IP67/IP69/IP69K sealing match the rest of the XB4 metal range for washdown duty.
Specification
Full specification
Main 10
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | without cap |
Complementary 5
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.1 in (28 mm) |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-1, JIS C8201-5-1, UL 508, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-1 |
| Product Certifications | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 40 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB4BA0 |
|---|---|
| Type designation | ZB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887440 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.027 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
