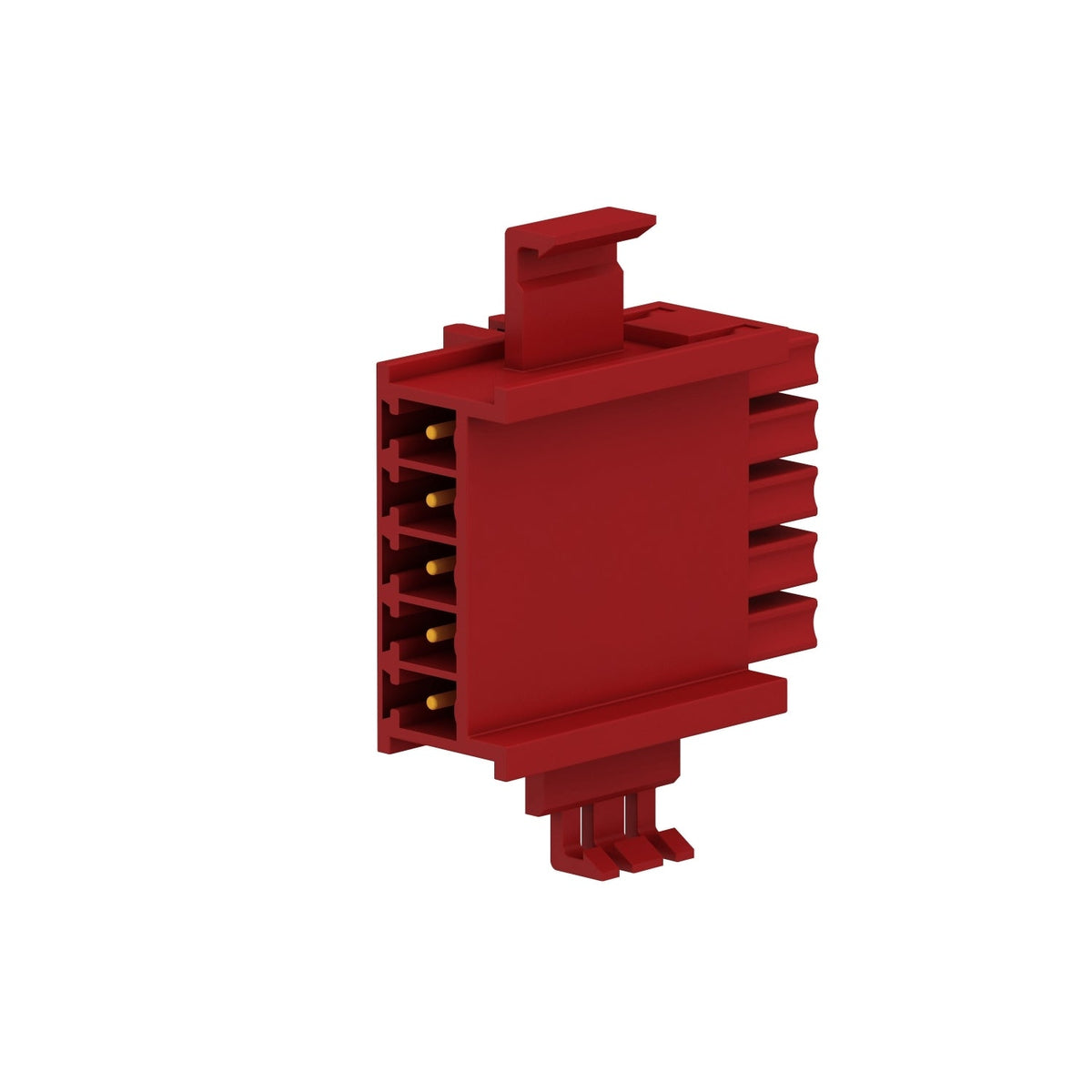

The Schneider Electric XPSMCMCN0000SG is a backplane expansion connector for the Preventa XPS MCM safety controller system, linking a safety controller CPU to its expansion modules, or linking expansion modules to each other, on a single backplane. It has one male and one female 5-pin plug-in connector and mounts on the same Omega 35 mm DIN rail as the modules it joins, keeping the backplane data and power connections intact across the full module lineup without separate wiring between units.
One XPSMCMCN0000SG is needed between each pair of adjacent units on the backplane, so the quantity required scales with the number of expansion modules added to an XPSMCMCP0802 or XPSMCMC10804 controller.
| Range of Product | Preventa Safety automation |
|---|---|
| Accessory / separate part category | Expansion bus connector |
| Accessory / Separate Part Type | Backplane expansion bus connector |
| Product Compatibility | Logic controller, Extension modules |
| Accessory / separate part destination | For modular device |
| Electrical connection | 1 male + 1 female connectors - 5-pin rear panel plug-in connector |
|---|---|
| Quantity per Set | 1 |
| Mounting support | Omega 35 mm DIN rail IEC 60715 |
| Net Weight | 0.02 lb(US) (0.01 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | XPSMCMCN0000SG |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480748325 |
| Country of origin | DE |
|---|---|
| Shipping weight | 0.01 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for XPSMCMCN0000SG is 853890.
The EAN (GTIN) of XPSMCMCN0000SG is 3606480748325.
XPSMCMCN0000SG ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
