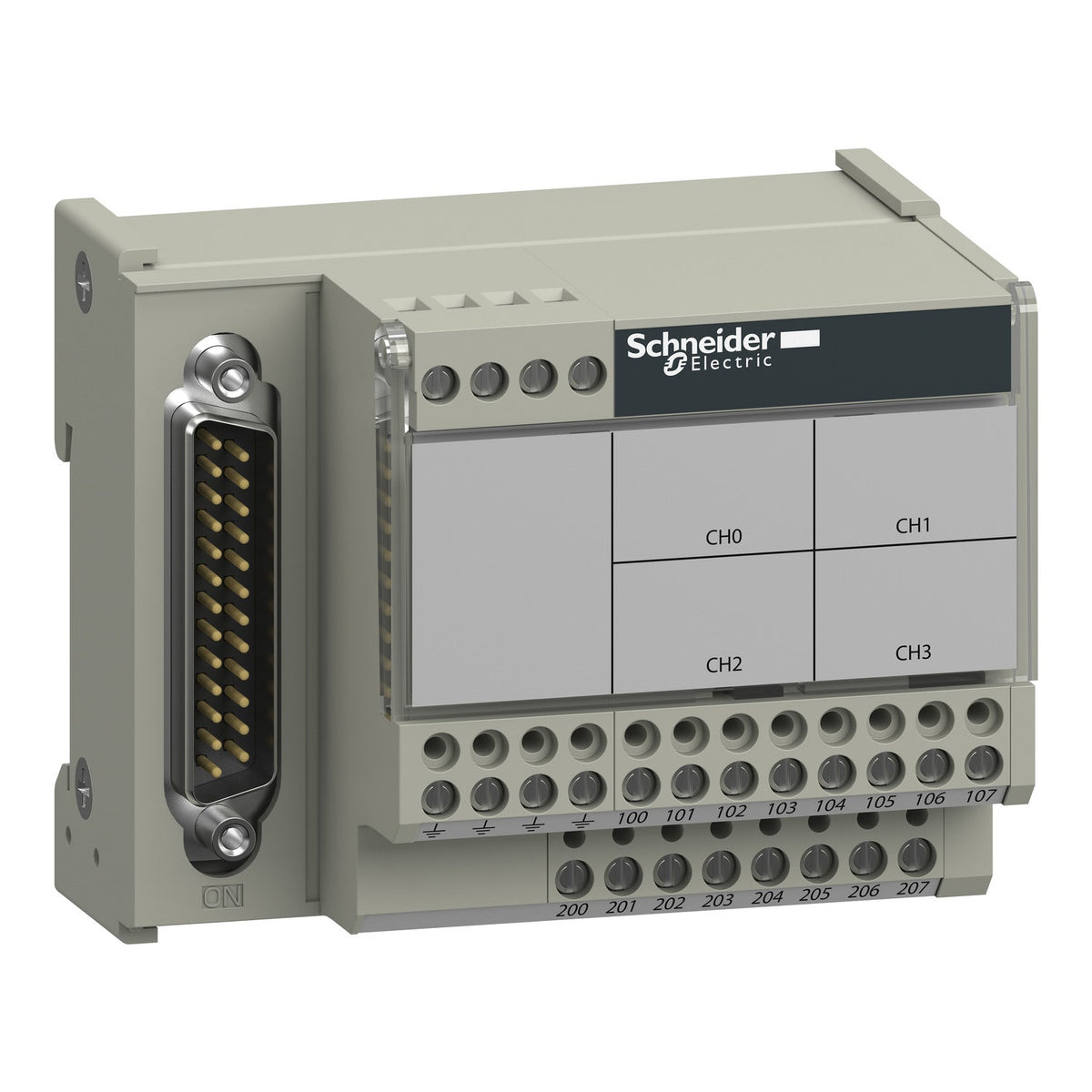

The Schneider Electric ABE7CPA412 is a Modicon ABE7 Telefast connection sub-base that distributes 4 isolated thermocouple channels to a Modicon M340 analog input module through a 25-way SUB-D connector. It integrates a converter for isolated sensor power and built-in cold-junction compensation, terminates each channel on screw-type terminals, and carries an IP20 rating.
Choose the ABE7CPA412 when routing four thermocouple channels from field wiring into a Modicon M340 low-level analog input module — its built-in cold-junction compensation and isolated sensor power supply remove the need for a separate CJC reference at the input card. The SUB-D 25 connector keeps the module-side wiring as one pre-formed cable run instead of individual screw terminals at the card itself, which shortens commissioning time on multi-channel thermocouple racks.
| Range of Product | Modicon ABE7 |
|---|---|
| Product or Component Type | Connection sub-base for analogue channels |
| Number of Channels | 4 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid |
| Function of module | Distribution of 4 thermocouples Modicon M340 |
|---|---|
| Product compatibility | Modicon M340 BMXART0414, Modicon M340 BMXART0814 |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Net Weight | 0.40 lb(US) (0.18 kg) |
| Product Certifications | GL, CSA, UL, DNV |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Resistance to incandescent wire | 1382 °F (750 °C) 30 s IEC 60695-2-11 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -40…176 °F (-40…80 °C) IEC 61131-2 |
| Pollution degree | 2 IEC 60664-1 |
| Part number | ABE7CPA412 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863914696 |
| Warranty (in months) | 18 |
|---|
| Country of origin | LV |
|---|---|
| Shipping weight | 0.18 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
