Schneider Electric XD5PA24 Harmony XB5 Joystick Controller Plastic 4 Directions Spring Return 1NO Control Unit

% $-53.75
Schneider Electric XD5PA24 Harmony XB5 plastic joystick controller 4 directions spring return
Schneider Electric XD5PA24 Harmony XB5 plastic joystick controller 4 directions spring return

Schneider Electric XD5PA24 Harmony XB5 Joystick Controller Plastic 4 Directions Spring Return 1NO Control Unit

Brand: Schneider Electric
Reference No: XD5PA24
Catalog No: XD5PA24
Series: Harmony XB5
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$53.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

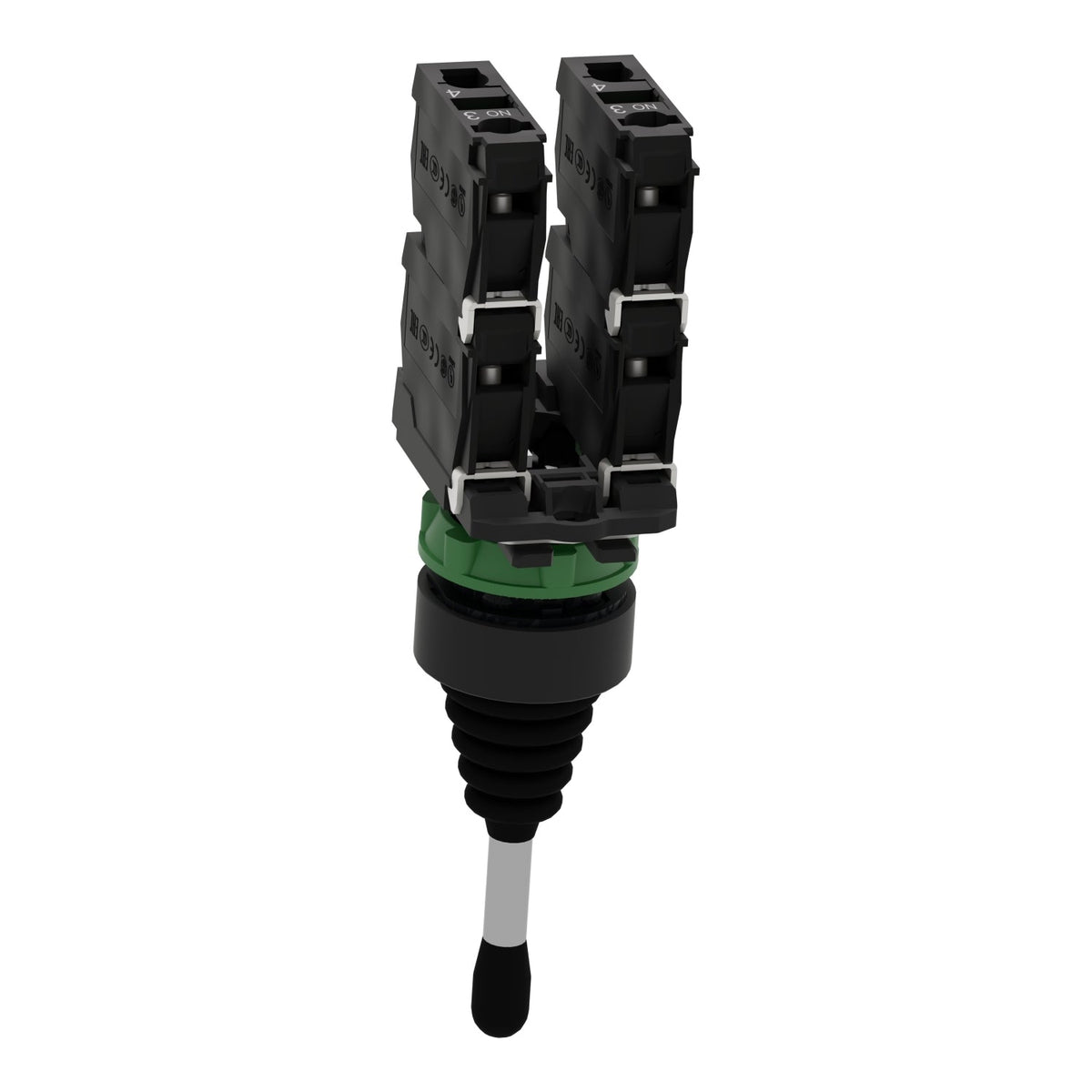

The Schneider Electric XD5PA24 is a Harmony XB5 joystick controller with a plastic bezel and collar, 22 mm mounting diameter, and a spring-return-to-zero mechanism across 4 directions, giving 1 NO contact per direction. It mounts into a standard 22 mm panel cut-out and is rated IP66, recentering automatically for two-axis momentary jog control with Class II double insulation.

Technical Specifications

SKU XD5PA24
Brand Schneider Electric
Range Harmony XB5
Product type Joystick controller
Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22 mm
Type of operator Spring return to 0 position, 54 mm long operating shaft
Directions 4
Positions 5
Contacts 1 NO per direction
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
Electrical shock protection class Class II
IP degree of protection IP66
IK degree of protection IK03
Ambient temperature, operation -25...70 °C
Height / Width / Depth 47 mm / 30 mm / 132 mm
Net weight 0.077 kg
Country of origin FR

Certifications & Standards

  • UL Listed
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-1
  • BV
  • DNV

Selection Notes

Four directions with spring return gives true two-axis dead-man control in the lighter plastic-bodied XB5 line, for installations where the metal-bezelled XD4PA24 is not required. The stay-put XD5PA14 covers the same 4 directions where the lever should hold position instead of recentering.

Technical Details

Short Description
Harmony XB5 plastic joystick controller, 22mm, 4 directions, spring return, 1NO per direction.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66
Catalog No
XD5PA24
Delivery Date (Days)
30 days
Model Number
XD5
Tariff Code
853690
