- Part number
- XD5PA14
- Model no
- XD5
- UL
- CSA

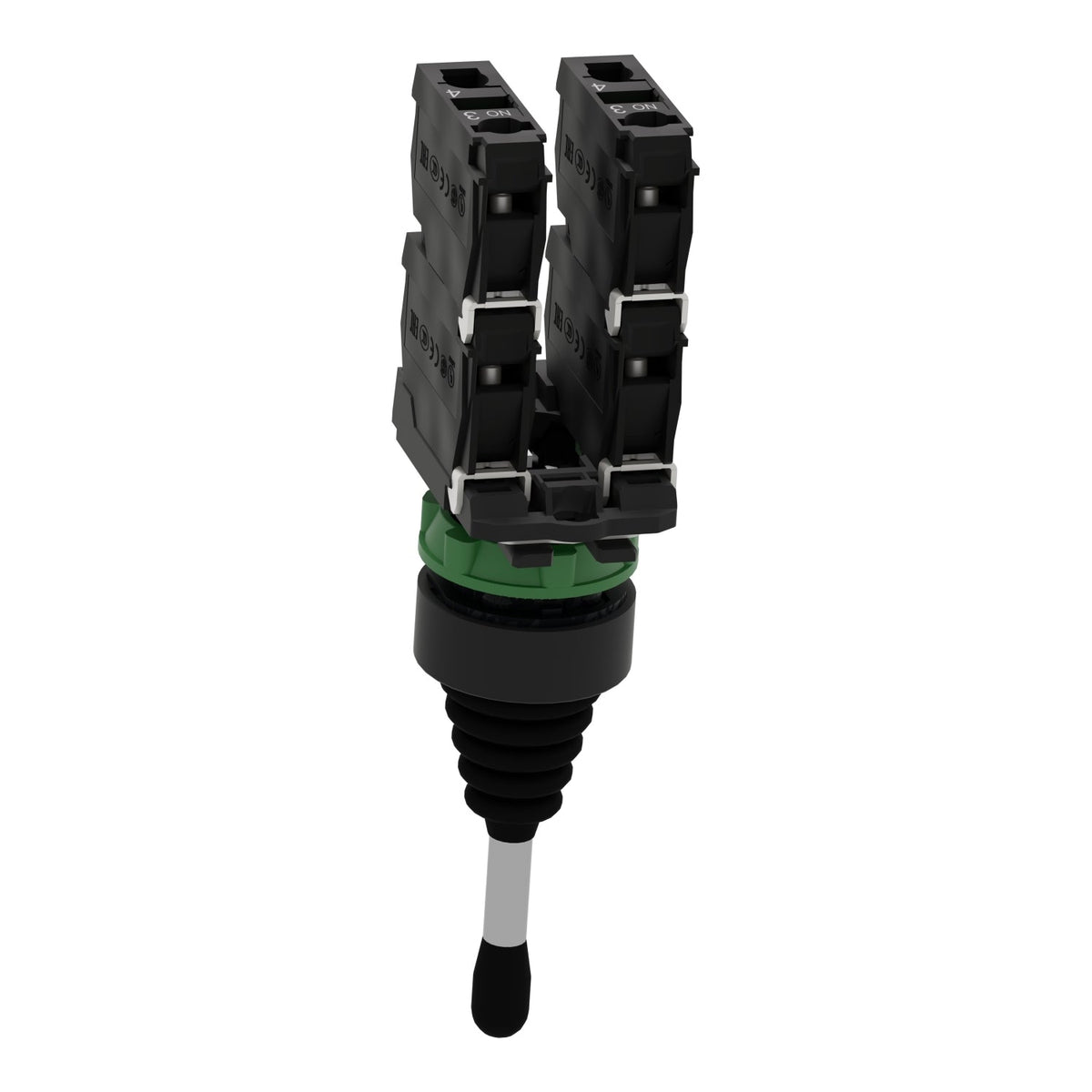

Harmony XB5Schneider Electric XD5PA14 Harmony XB5 Joystick Controller Plastic 4 Directions Stay Put 1NO Control Unit
Harmony XB5 plastic joystick controller, 22mm, 4 directions, stay put, 1NO per direction.
Description
About the XD5
About the XD5
The Schneider Electric XD5PA14 is a Harmony XB5 joystick controller with a plastic bezel and collar, 22 mm mounting diameter, and a stay-put mechanism across 4 directions, giving 1 NO contact per direction. It mounts into a standard 22 mm panel cut-out and is rated IP66, giving two-axis manual positioning control with Class II double insulation.
Certifications & Standards
- UL Listed
- CSA
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-1
- BV
- DNV
Selection Notes
Four directions from a plastic, double-insulated body cover two-axis positioning without the metal bezel of the XD4PA14. Where only a single axis needs control, the 2-direction XD5PA12 uses the same construction with fewer contacts to wire.
Specification
Full specification
Main 13
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Joystick controller |
| Device short name | XD5 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | 54 mm long operating shaft |
| Operator position information | 5 positions |
| Operator direction information | 4 directions |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Complementary 22
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 5.2 in (132 mm) |
| Net Weight | 0.170 lb(US) (0.077 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Notch per direction | 1 |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Contacts usage | Standard |
| Positive opening | Without |
| Mechanical durability | 1000000 cycles |
| Device presentation | Complete product |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529 |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, UL 508, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XD5PA14 |
|---|---|
| Type designation | XD5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110904284 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.077 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XD5PA14
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- IEC 60947-1
- CSA C22.2 No 14
- IEC 60947-5-1
- JIS C8201-5-1
- IEC 60947-5-4
- UL 508
- JIS C8201-1
Quick answers
Questions about the XD5
What is the HS code of XD5 for customs?
The tariff (HS) code on file for XD5 is 853690.
What is the EAN of XD5?
The EAN (GTIN) of XD5 is 3389110904284.
Where does XD5 ship from, and how fast?
XD5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
