Schneider Electric XD5PA12 Harmony XB5 Joystick Controller Plastic 2 Directions Stay Put 1NO Control Unit

% $-37.59

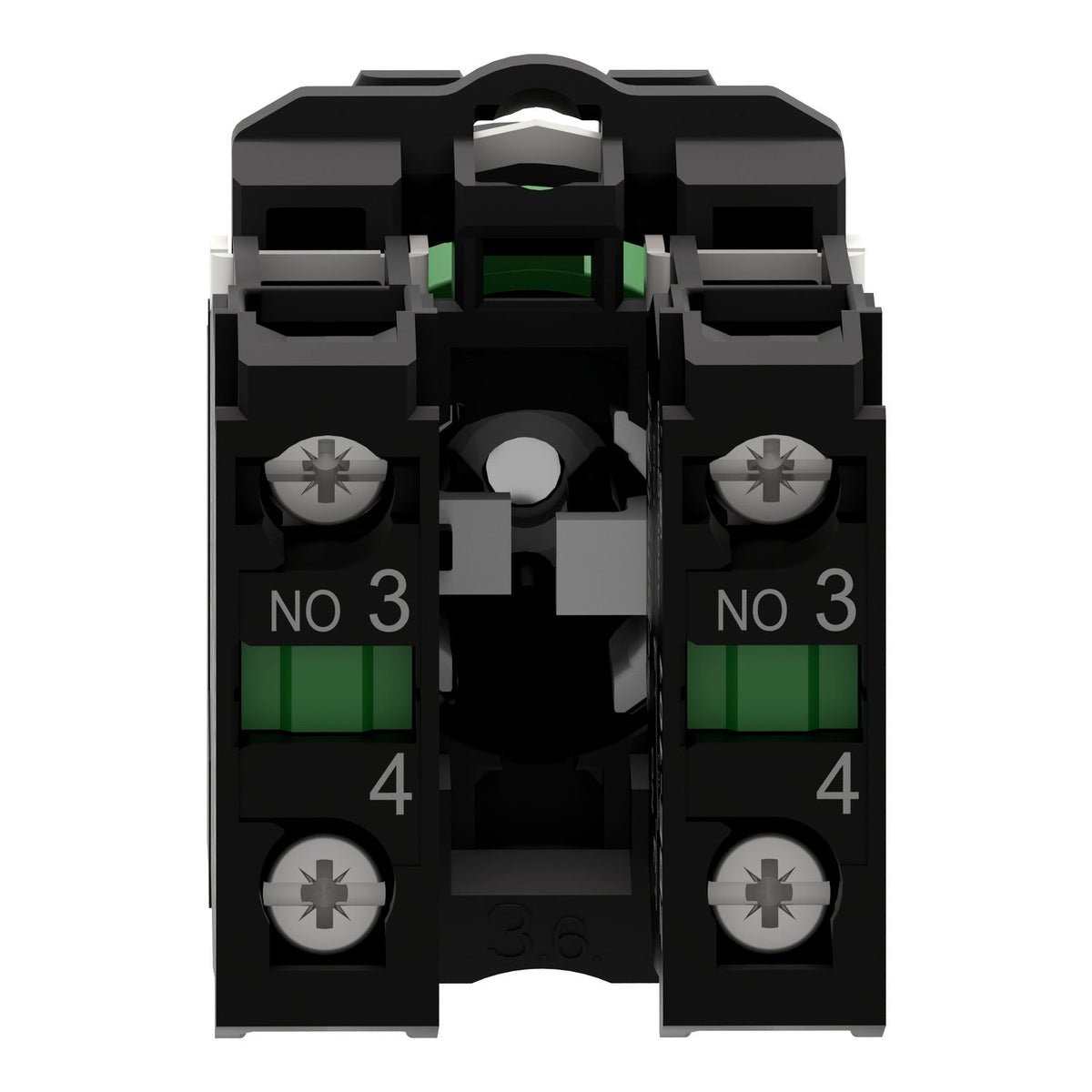

Schneider Electric XD5PA12 Harmony XB5 plastic joystick controller 2 directions
Schneider Electric XD5PA12 Harmony XB5 plastic joystick controller 2 directions

Schneider Electric XD5PA12 Harmony XB5 Joystick Controller Plastic 2 Directions Stay Put 1NO Control Unit

Brand: Schneider Electric
Reference No: XD5PA12
Catalog No: XD5PA12
Series: Harmony XB5
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XD5PA12 is a Harmony XB5 joystick controller with a plastic bezel and collar, 22 mm mounting diameter, and a stay-put mechanism across 2 directions, giving 1 NO contact. It mounts into a standard 22 mm panel cut-out and is rated IP66, providing an ergonomic double-insulated control point for general-purpose machine panels.

Technical Specifications

SKU XD5PA12
Brand Schneider Electric
Range Harmony XB5
Product type Joystick controller
Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22 mm
Type of operator Stay put, 54 mm long operating shaft
Directions 2
Positions 3
Contacts 1 NO
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
Electrical shock protection class Class II
IP degree of protection IP66
IK degree of protection IK03
Ambient temperature, operation -25...70 °C
Height / Width / Depth 47 mm / 30 mm / 108 mm
Country of origin FR

Certifications & Standards

  • UL Listed
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-1
  • BV
  • DNV

Selection Notes

The plastic bezel gives Class II double insulation, a reason to prefer this over the metal-bezelled XD4PA12 when the installation benefits from chemical resistance and no separate earth bond. For two-axis control in the same plastic construction, the XD5PA14 extends to 4 directions.

Technical Details

Short Description
Harmony XB5 plastic joystick controller, 22mm, 2 directions, stay put, 1NO.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66
Catalog No
XD5PA12
Delivery Date (Days)
30 days
Model Number
XD5
Tariff Code
853690
