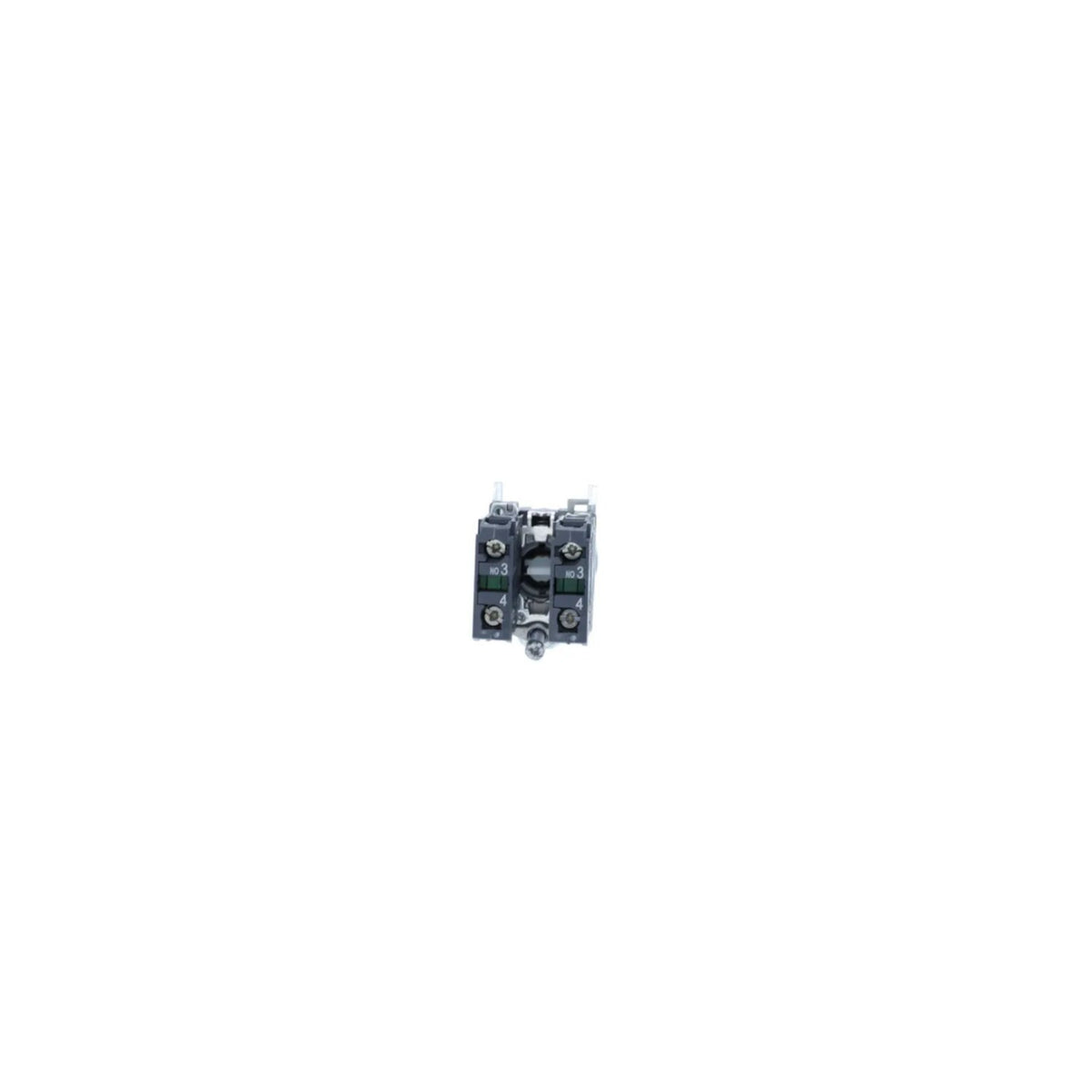

Harmony XDASchneider Electric XD4PA24 Harmony XB4 Joystick Controller Metal 4 Directions Spring Return 1NO Control Unit
Harmony XB4 metal joystick controller, 22mm, 4 directions, spring return, 1NO per direction.
Description
About the XD4
About the XD4
The Schneider Electric XD4PA24 is a Harmony XB4 joystick controller with a chromium-plated metal bezel, 22.5 mm mounting diameter, and a spring-return-to-zero mechanism across 4 directions, giving 1 NO contact per direction. It mounts into a standard 22 mm panel cut-out and is rated IP66, recentering automatically for two-axis momentary jog control.
Certifications & Standards
- UL Listed
- CSA
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-5-4
- BV
- DNV
Selection Notes
Combining 4-direction travel with spring return gives true two-axis dead-man control, the layout to specify for cranes and hoists that must stop moving as soon as the operator releases the lever. The stay-put XD4PA14 covers the same 4 directions where the lever should hold its position instead.
Specification
Full specification
Main 13
| Range of Product | Harmony XDA |
|---|---|
| Product or Component Type | Joystick controller |
| Device short name | XD4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Type of operator | Spring return to 0 position, long operating shaft 2.1 in (54 mm) |
| Operator position information | 5 positions |
| Operator direction information | 4 directions |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
Complementary 21
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 1.8 in (46.5 mm) |
| CAD overall depth | 5.2 in (133 mm) |
| Net Weight | 0.293 lb(US) (0.133 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Shape of signaling unit head | Round |
| Notch per direction | 1 |
| Contacts usage | Standard |
| Positive opening | Without |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529 |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-1, UL 508, IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-4, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XD4PA24 |
|---|---|
| Type designation | XD4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887433 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.133 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
