Schneider Electric XD4PA22 Harmony XB4 Joystick Controller Metal 2 Directions Spring Return 1NO Control Unit

% $-54.67
Schneider Electric XD4PA22 Harmony XB4 metal joystick controller spring return
Schneider Electric XD4PA22 Harmony XB4 metal joystick controller spring return

Schneider Electric XD4PA22 Harmony XB4 Joystick Controller Metal 2 Directions Spring Return 1NO Control Unit

Brand: Schneider Electric
Reference No: XD4PA22
Catalog No: XD4PA22
Series: Harmony XDA
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$54.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

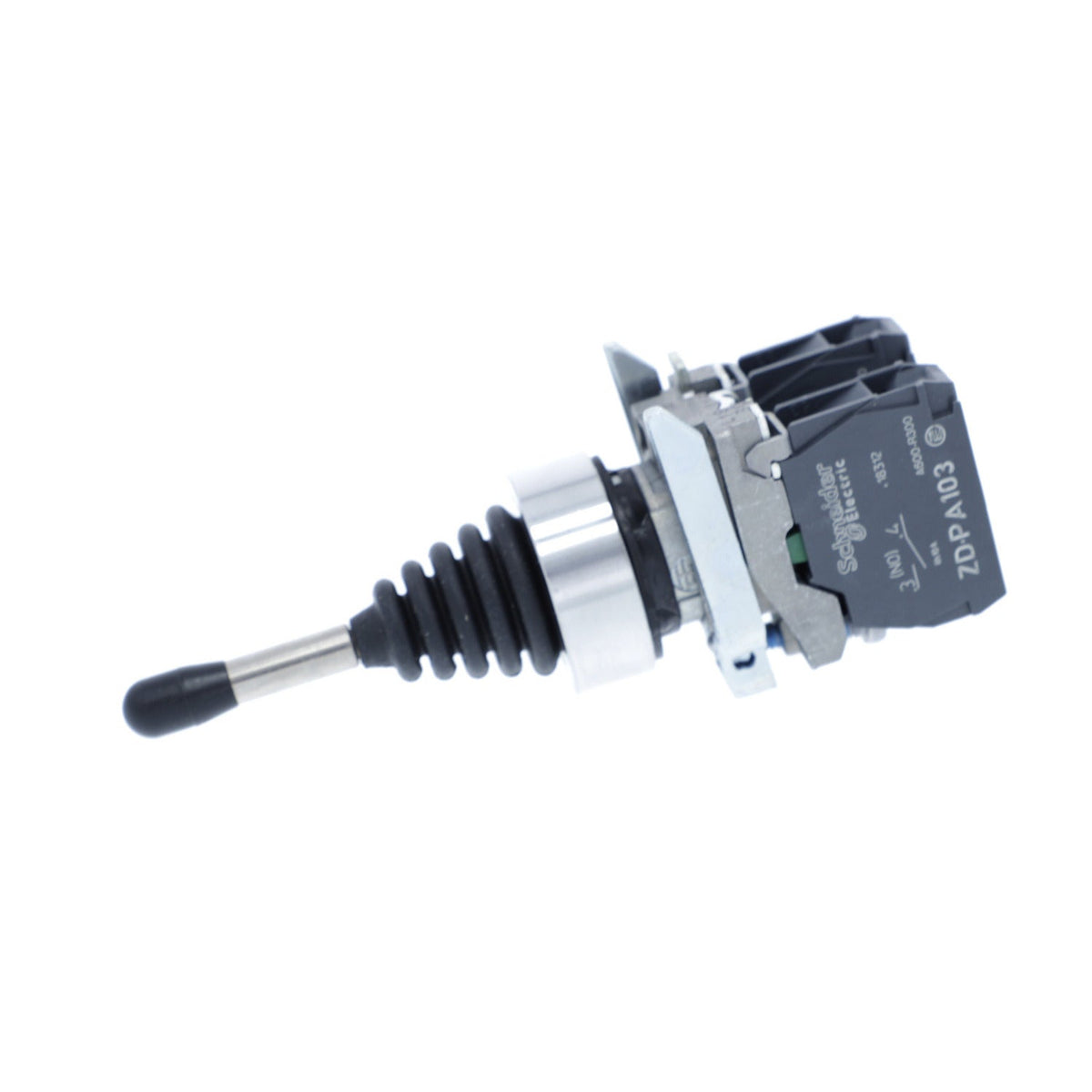

The Schneider Electric XD4PA22 is a Harmony XB4 joystick controller with a chromium-plated metal bezel, 22.5 mm mounting diameter, and a spring-return-to-zero mechanism across 2 directions, giving 1 NO contact per direction. It mounts into a standard 22 mm panel cut-out and is rated IP66, returning to center automatically when released for momentary single-axis commands.

Technical Specifications

SKU XD4PA22
GTIN 3389110887419
Brand Schneider Electric
Range Harmony XDA
Product type Joystick controller
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 22.5 mm
Type of operator Spring return to 0 position, long operating shaft 54 mm
Directions 2
Positions 3
Contacts 1 NO per direction
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66
IK degree of protection IK03
Ambient temperature, operation -25...70 °C
Overall depth 109 mm
Net weight 0.116 kg
Country of origin FR

Certifications & Standards

  • UL Listed
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • BV
  • DNV

Selection Notes

Spring return to zero makes this the dead-man variant: release the lever and it recenters, cutting the drive signal automatically, which is preferable to the stay-put XD4PA12 wherever momentary jog control is safer than a held command. For two-axis spring-return control, the XD4PA24 extends the mechanism to 4 directions.

Technical Details

Short Description
Harmony XB4 metal joystick controller, 22mm, 2 directions, spring return, 1NO per direction.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66
Catalog No
XD4PA22
Delivery Date (Days)
30 days
Model Number
XD4
Tariff Code
853690
