Schneider Electric XD4PA12 Harmony XB4 Joystick Controller Metal 22 mm 2 Directions Stay Put 1NO Control Unit

% $-54.67

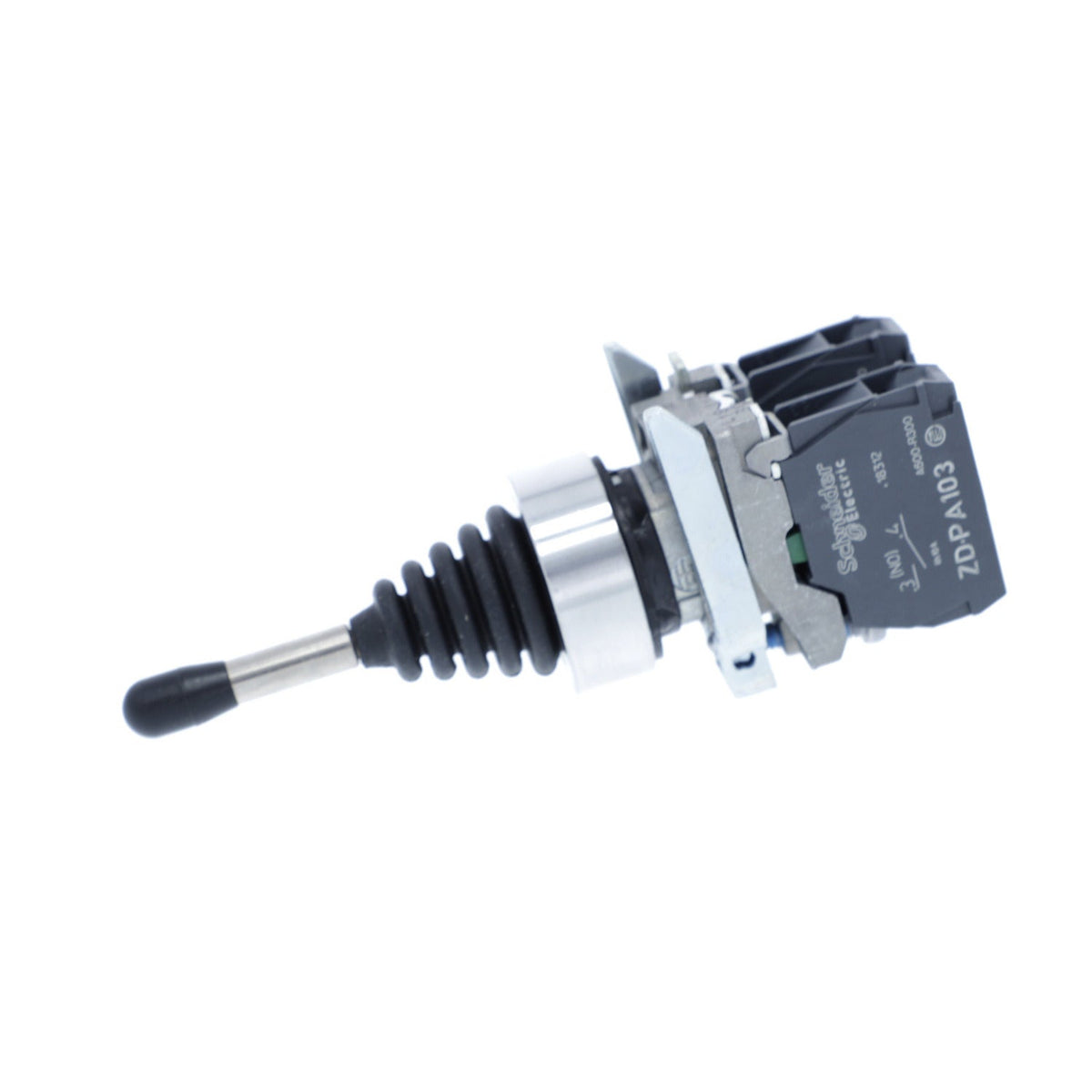

Schneider Electric XD4PA12 Harmony XB4 metal joystick controller 2 directions
Schneider Electric XD4PA12 Harmony XB4 metal joystick controller 2 directions

Schneider Electric XD4PA12 Harmony XB4 Joystick Controller Metal 22 mm 2 Directions Stay Put 1NO Control Unit

Brand: Schneider Electric
Reference No: XD4PA12
Catalog No: XD4PA12
Series: Harmony XDA
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$54.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XD4PA12 is a Harmony XB4 joystick controller with a chromium-plated metal bezel, 22.5 mm mounting diameter, and a stay-put mechanism across 2 directions, giving 1 NO contact per direction. It mounts into a standard 22 mm panel cut-out and is rated IP66, suiting manual positioning control on cranes, hoists and material-handling machines.

Technical Specifications

SKU XD4PA12
GTIN 3389110887402
Brand Schneider Electric
Range Harmony XDA
Product type Joystick controller
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 22.5 mm
Type of operator Stay put, long operating shaft 54 mm
Directions 2
Positions 3
Contacts 1 NO per direction
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66
IK degree of protection IK03
Ambient temperature, operation -25...70 °C
Overall depth 109 mm
Net weight 0.116 kg
Country of origin FR

Certifications & Standards

  • UL Listed
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • BV
  • DNV

Selection Notes

Stay-put operation holds the lever in whichever position the operator sets it, which suits continuous-motion controls like travel speed selection rather than momentary commands. The 2-direction layout covers single-axis motion; for a second axis in the same stay-put mechanism, the XD4PA14 adds two more directions.

Technical Details

Short Description
Harmony XB4 metal joystick controller, 22mm, 2 directions, stay put, 1NO per direction.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66
Catalog No
XD4PA12
Delivery Date (Days)
30 days
Model Number
XD4
Tariff Code
853690
