Schneider Electric XB7NW3361 Harmony XB7 Illuminated Push Button Green Projecting 22 mm Push Button

% $-8.77
Schneider Electric XB7NW3361 Harmony XB7 green illuminated push button - 22 mm BA9s bulb 230 V AC
Schneider Electric XB7NW3361 Harmony XB7 green illuminated push button - 22 mm BA9s bulb 230 V AC

Schneider Electric XB7NW3361 Harmony XB7 Illuminated Push Button Green Projecting 22 mm Push Button

Brand: Schneider Electric
Reference No: XB7NW3361
Catalog No: XB7NW3361
Series: Harmony XB7
Tariff Code (HS): 853650
Rated Voltage: 230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8.77

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

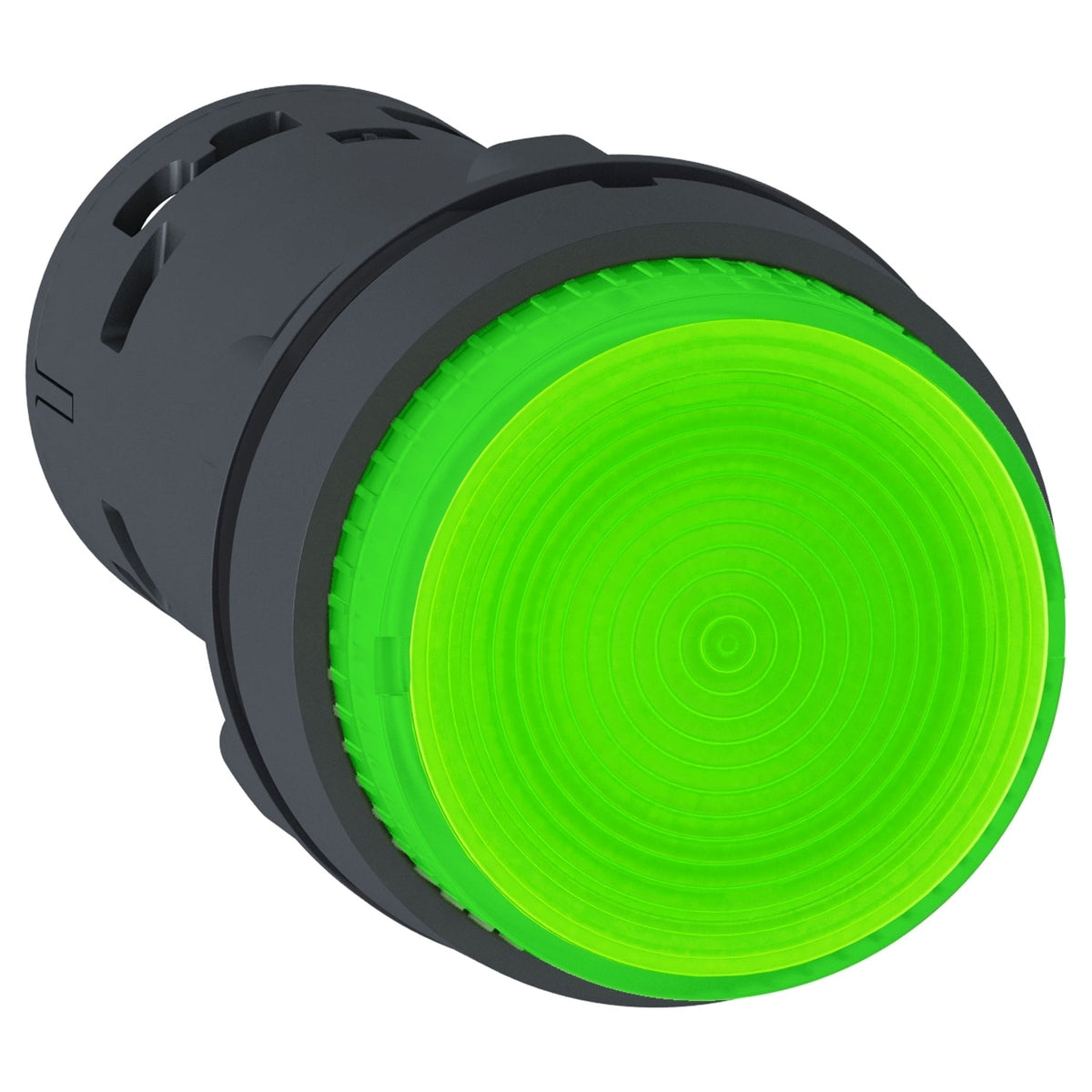

The Schneider Electric XB7NW3361 is a Harmony XB7 illuminated push button for 22 mm panel cutouts, with a green projecting operator that returns by spring and lights through a BA9s incandescent bulb (not included) supplied at 230 V AC. It switches a 1 NO contact through screw-clamp terminals, and the IP65-rated plastic body suits dusty or washdown-duty control panels.

Technical Specifications

Reference XB7NW3361
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Illuminated push-button
Device presentation Monolithic product
Mounting diameter 22 mm
Operator profile Green projecting, unmarked
Type of operator Spring return
Contacts type and composition 1 NO
Contact operation Slow-break
Light source Incandescent (bulb not included)
Bulb base BA 9s
[Us] rated supply voltage 230 V AC
Supply voltage limits 195...264 V AC
Short-circuit protection 4 A cartridge fuse gG
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Screw clamp, ≤ 2 x 1.5 mm² with cable end / 1 x 0.34...2 x 2.5 mm² without
Dimensions (H x W x D) 29 x 29 x 57.5 mm
Net weight 0.022 kg (0.049 lb)
IP degree of protection IP20 rear / IP65 front (IEC 60529)
Enclosure Type UL type 3/12

Certifications & Standards

  • UL 508
  • IEC 60947-5-1
  • JIS C8201-5-1
  • IEC 60947-1
  • CSA C22.2 No 14
  • JIS C8201-1

Selection Notes

The XB7NW3361 takes a separately stocked BA9s incandescent bulb rather than a sealed LED module, which suits panels where bulb replacement is handled as routine maintenance rather than whole-unit swap. Its 230 V AC supply wires directly off line voltage without a 24 V DC control transformer, at the cost of a lower UL type 3/12 enclosure rating than the LED versions in the same body.

Technical Details

Short Description
Harmony XB7 22mm green illuminated push button, BA9s bulb, 230 V AC, 1NO, IP65.
Rated Voltage (VAC)
230 V AC
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP65
Catalog No
XB7NW3361
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
