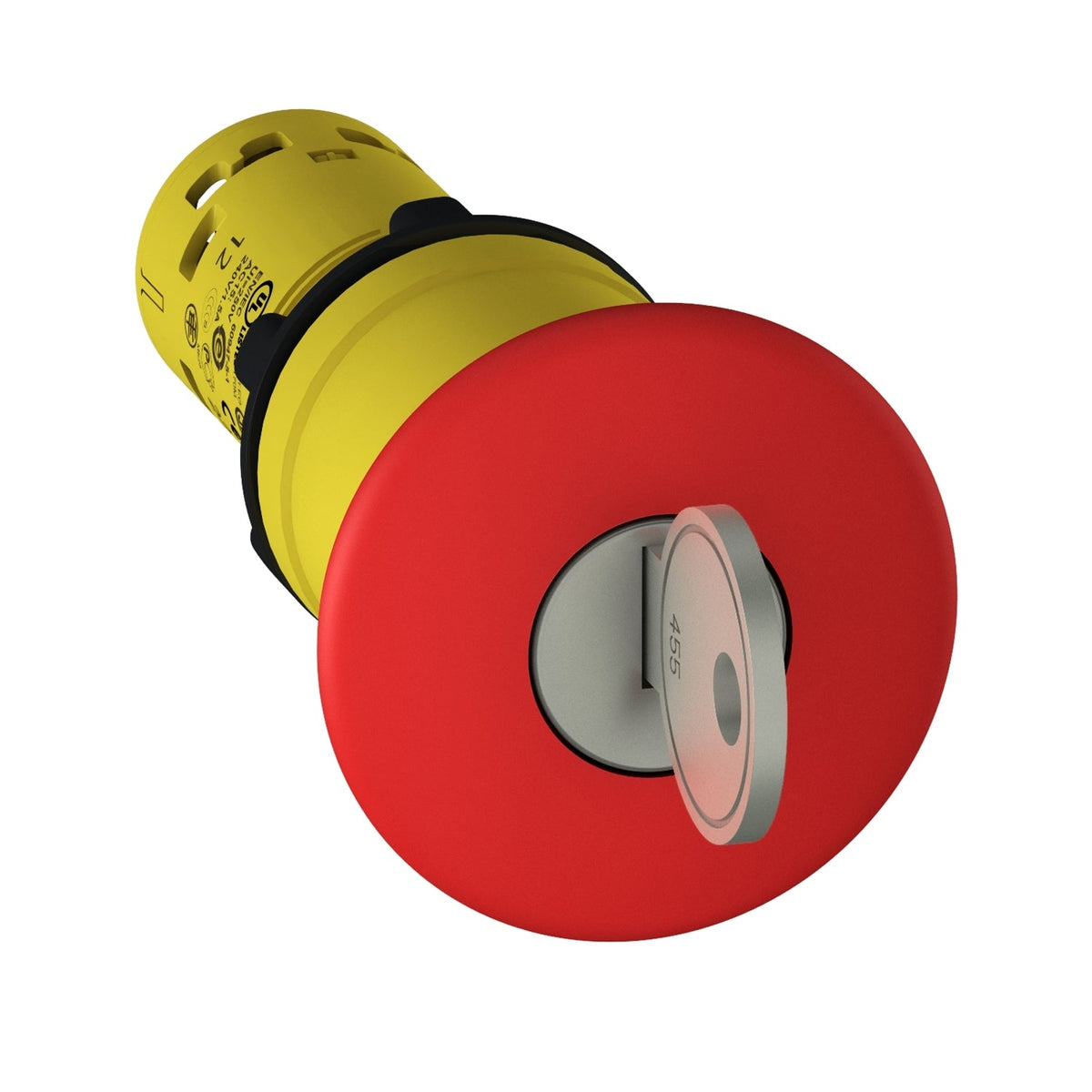

Schneider Electric XB7NS9445 Harmony XB7 Emergency Stop Red Mushroom 40 mm 22 mm Emergency Stop Push Button

Harmony XB7 22mm emergency stop, red mushroom 40mm, key release, 1 NO + 1 NC, IP65.

Range of Product
Harmony XB7
Product or Component Type
Emergency stop push-button
Device short name
XB7
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
10
Shape of signaling unit head
Round
EAN
3606480465659
Description

About the XB7

The Schneider Electric XB7NS9445 is a Harmony XB7 emergency stop push button for 22 mm panel cutouts, with a red 40 mm mushroom head that latches on press and releases with key no. 455. It switches a 1 NO + 1 NC contact through screw-clamp terminals, and the IP65-rated plastic body meets ISO 13850 and IEC 60947-5-5 for machine emergency-stop duty.

Certifications & Standards

  • CCC
  • GOST
  • IEC 60947-5-5
  • IEC 60364-5-53
  • ISO 13850
  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60204-1

Selection Notes

The key-release mechanism on the XB7NS9445 means the stop condition can only be cleared by a keyholder, which suits a process where a supervisor must verify it is safe before the line restarts — unlike the plain turn-to-release version, which any operator can reset. Its 1 NO + 1 NC contact block also gives a feedback signal to the PLC alongside the hard-wired stop circuit.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony XB7
Product or Component Type Emergency stop push-button
Device short name XB7
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 10
Shape of signaling unit head Round
Type of operator latching
Reset Key release
Operator profile Red mushroom Ø 40 mm, unmarked
Type of Keylock Key 455
Contacts type and composition 1 NO + 1 NC
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Device presentation Monolithic product

Complementary 20

CAD overall width 1.6 in (40 mm)
CAD overall height 1.6 in (40 mm)
CAD overall depth 2.8 in (72 mm)
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Net Weight 0.077 lb(US) (0.035 kg)
Device mounting Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1
Fixing center >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm)
Fixing mode Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m)
Contact operation Snap action
Contacts usage Standard
Positive opening With IEC 60947-5-1 appendix K
Mechanical durability 100000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Short-circuit protection 4 A cartridge fuse gG IEC 60947-5-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
[Ie] rated operational current 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.75 A 240 V, AC-15, C300 IEC 60947-5-1, 1.5 A 120 V, AC-15, C300 IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4

Environment 10

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II conforming to IEC 60536
IP degree of protection IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Enclosure Type UL type 3/12
Standards IEC 60947-5-5, IEC 60364-5-53, ISO 13850, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60204-1
Product Certifications CCC, GOST
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
