Schneider Electric XB7NS8442 Harmony XB7 Emergency Stop Red Mushroom 40 mm 22 mm Emergency Stop Push Button

% $-9.64

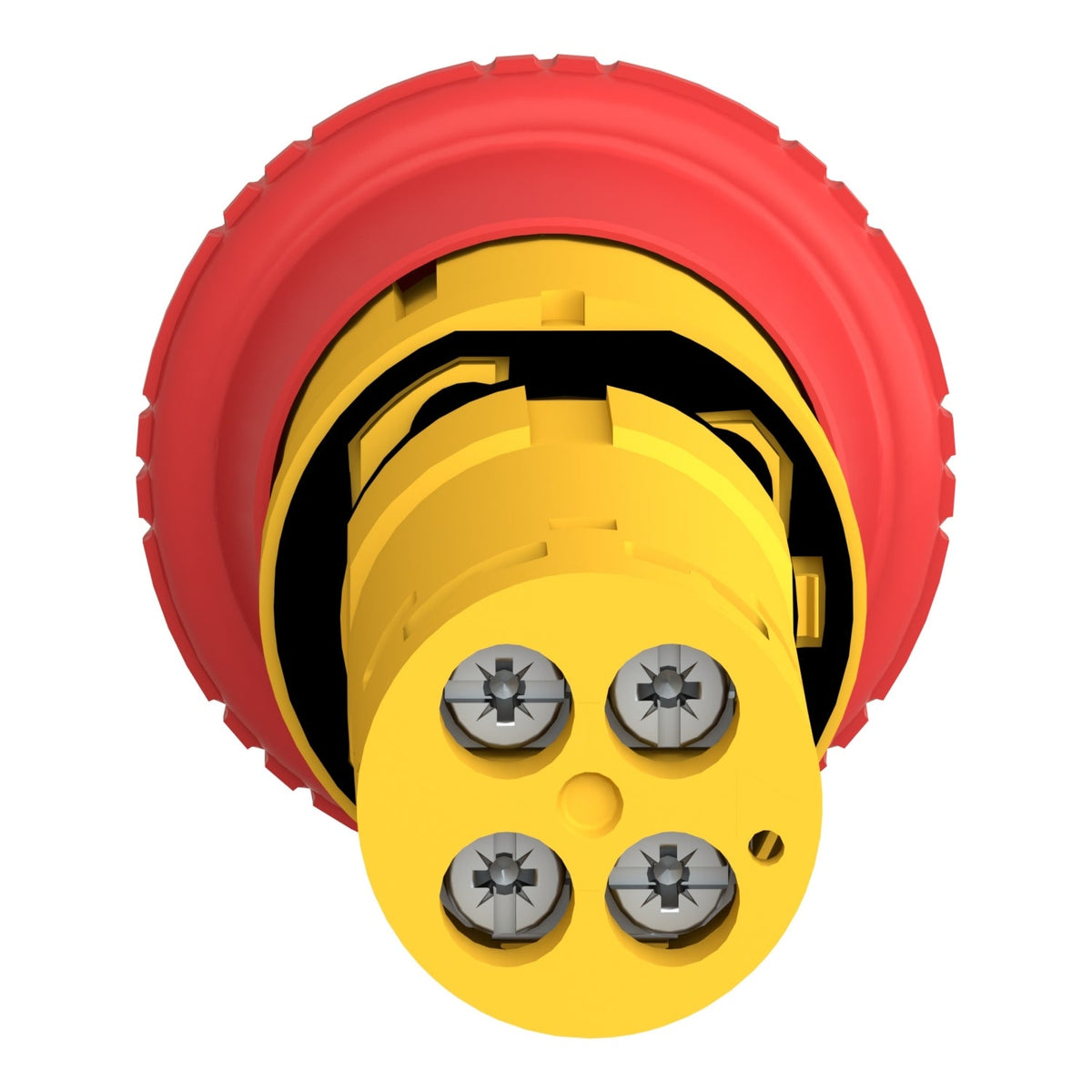

Schneider Electric XB7NS8442 Harmony XB7 emergency stop - red mushroom 40 mm turn to release 1 NC
Schneider Electric XB7NS8442 Harmony XB7 emergency stop - red mushroom 40 mm turn to release 1 NC

Schneider Electric XB7NS8442 Harmony XB7 Emergency Stop Red Mushroom 40 mm 22 mm Emergency Stop Push Button

Brand: Schneider Electric
Reference No: XB7NS8442
Catalog No: XB7NS8442
Series: Harmony XB7
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB7NS8442 is a Harmony XB7 emergency stop push button for 22 mm panel cutouts, with a red 40 mm mushroom head that latches on press and turns to release. It switches a 1 NC contact through screw-clamp terminals, and the IP65-rated plastic body meets ISO 13850 and IEC 60947-5-5 for machine emergency-stop duty.

Technical Specifications

Reference XB7NS8442
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Emergency stop push-button
Device presentation Monolithic product
Mounting diameter 22 mm
Operator profile Red mushroom Ø 40 mm, unmarked
Type of operator Latching
Reset Turn to release
Contacts type and composition 1 NC
Contact operation Snap action
Positive opening With (IEC 60947-5-1 appendix K)
Short-circuit protection 4 A cartridge fuse gG
[Ie] rated operational current 1.5 A 120 V AC-15 | 0.75 A 240 V AC-15 | 0.22 A 125 V DC-13 | 0.1 A 250 V DC-13
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Screw clamp, ≤ 2 x 1.5 mm² with cable end / 1 x 0.34...2 x 2.5 mm² without
Dimensions (H x W x D) 40 x 40 x 72 mm
Net weight 0.035 kg (0.077 lb)
IP degree of protection IP20 rear / IP65 front (IEC 60529)
Enclosure Type UL type 3/12
Ambient air temperature, storage -40...70 °C
GTIN 3606480465581

Certifications & Standards

  • CCC
  • GOST
  • IEC 60947-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-5
  • IEC 60364-5-53
  • IEC 60204-1
  • ISO 13850

Selection Notes

The turn-to-release reset on the XB7NS8442 lets any operator at the panel clear the stop condition once the hazard is gone, without needing a key — appropriate where local reset authority is acceptable. Its single 1 NC contact is sized for direct wiring into a safety relay or safety-rated PLC input rather than switching motor load current.

Technical Details

Short Description
Harmony XB7 22mm emergency stop, red mushroom 40mm, turn to release, 1 NC, IP65.
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP65
Catalog No
XB7NS8442
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
853650
