Schneider Electric XB7NH31 Harmony XB7 Monolithic Push Button Green Flush 22 mm Push Button

% $-6.41

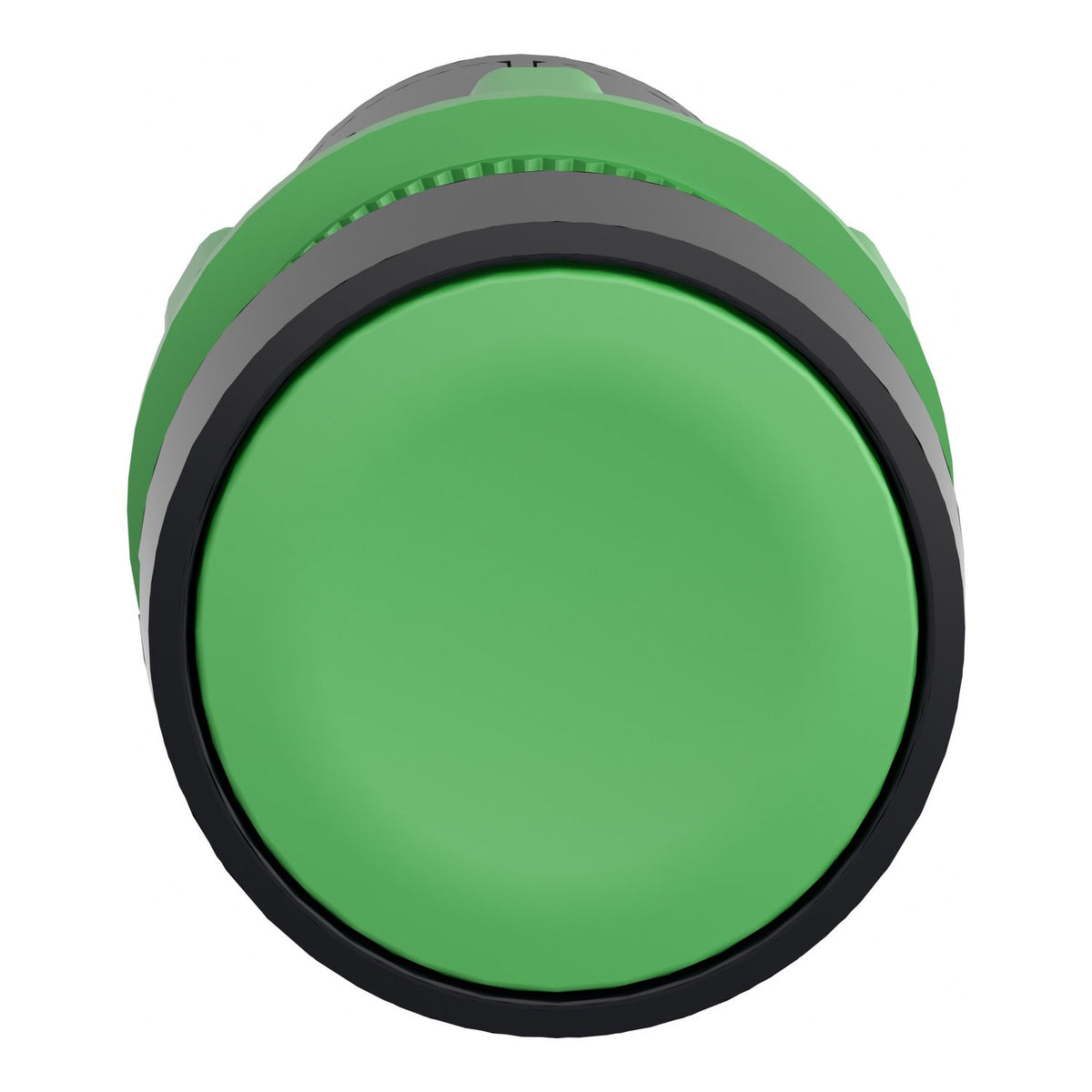

Schneider Electric XB7NH31 Harmony XB7 Green push button - 22 mm latching 1 NO
Schneider Electric XB7NH31 Harmony XB7 Green push button - 22 mm latching 1 NO

Schneider Electric XB7NH31 Harmony XB7 Monolithic Push Button Green Flush 22 mm Push Button

Brand: Schneider Electric
Reference No: XB7NH31
Catalog No: XB7NH31
Series: Harmony XB7
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB7NH31 is a Harmony XB7 monolithic push button for 22 mm panel cutouts, with a green flush operator that latches on push and releases on a second push rather than springing back. It switches a 1 NO contact through screw-clamp terminals, and the IP65-rated plastic body (UL type 3/12) holds up on dusty or washdown-duty panels.

Technical Specifications

Reference XB7NH31
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Push-button
Device presentation Monolithic product
Mounting diameter 22 mm
Operator profile Green flush
Type of operator Push and push-to-release
Contacts type and composition 1 NO
Contact operation Slow-break
Positive opening With NC contact (IEC 60947-5-1 appendix K)
Short-circuit protection 4 A cartridge fuse gG
[Ie] rated operational current 0.6 A 120 V AC-14 | 0.3 A 240 V AC-14 | 0.22 A 125 V DC-13 | 0.1 A 250 V DC-13
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Screw clamp, ≤ 2 x 1.5 mm² with cable end / 1 x 0.34...2 x 2.5 mm² without
Dimensions (H x W x D) 29 x 29 x 51.5 mm
Net weight 0.021 kg (0.046 lb)
IP degree of protection IP20 rear / IP65 front (IEC 60529)
Enclosure Type UL type 3/12
GTIN 3606480470318

Certifications & Standards

  • GOST
  • CCC
  • IEC 60947-1
  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • JIS C8201-1

Selection Notes

Because the XB7NH31 latches mechanically, it holds its switched state without a separate latching relay or PLC rung, which suits a local on/off or enable function at the panel itself. The 1 NO contact block gives a single normally-open signal, and the green cap keeps it visually distinct from the spring-return buttons on the same panel.

Technical Details

Short Description
Harmony XB7 22mm green latching push button, 1 NO, IP65.
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP65
Catalog No
XB7NH31
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
853650
