Part number
XB7NG21
Model no
XB7
$15.94 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB7

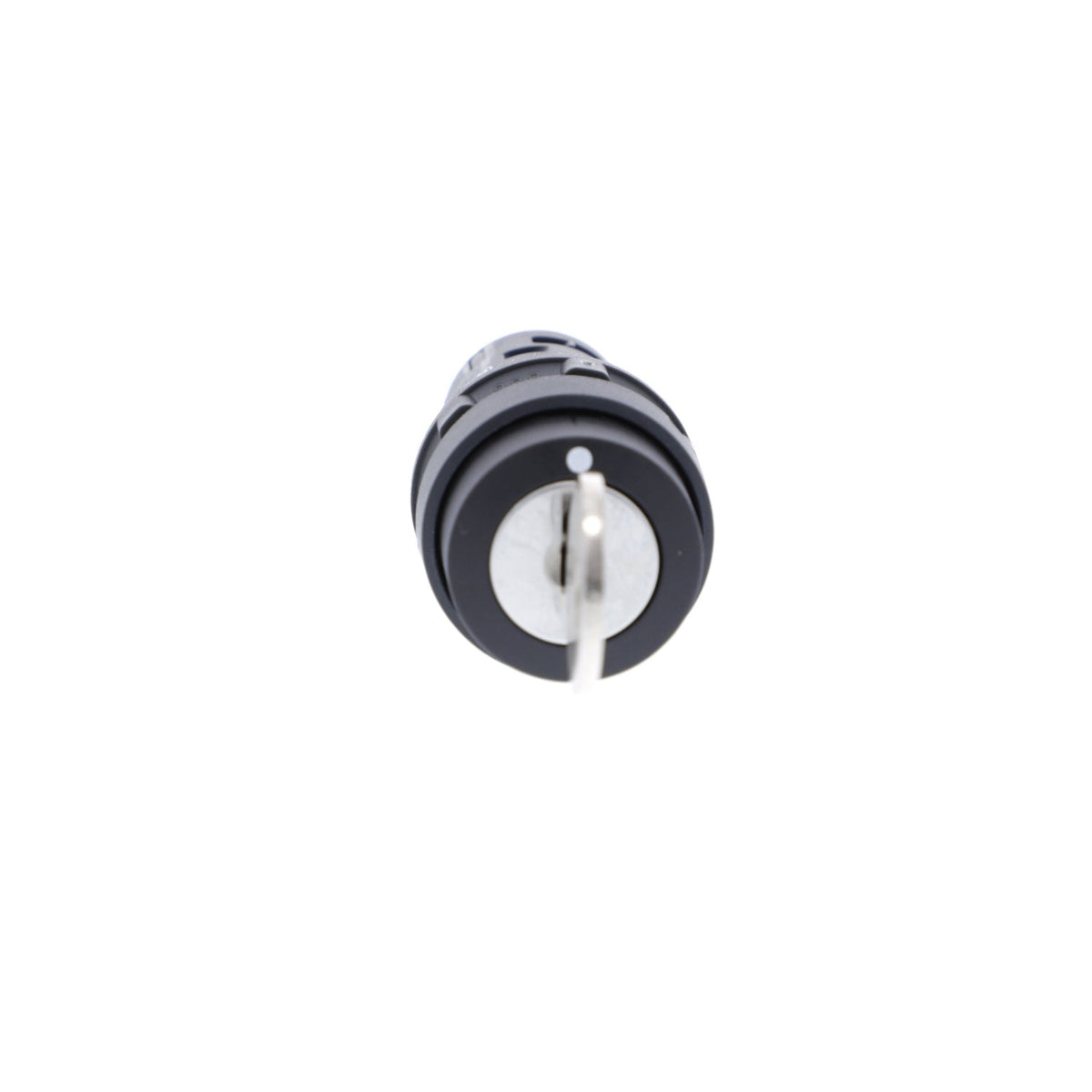

Schneider Electric XB7NG21 Harmony XB7 Monolithic Key Selector Switch Black 22 mm Key 455 Selector Switch

Harmony XB7 22mm key selector switch, key 455, 2 positions, 1NO, IP65.

Range of Product
Harmony XB7
Product or Component Type
Selector switch
Device short name
XB7
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
10
Net Weight
0.11 lb(US) (0.05 kg)
EAN
3606480470271
Description

About the XB7

The Schneider Electric XB7NG21 is a Harmony XB7 monolithic key selector switch for 22 mm panel cutouts, using key no. 455 to restrict a stay-put 2-position, 90-degree, 1 NO circuit to authorized operators. The key withdraws from the left-hand position, and screw-clamp terminals plus an IP65-rated plastic body (UL type 3/12) suit industrial control panels.

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • UL 508
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • JIS C8201-1

Selection Notes

Choose the XB7NG21 over a standard (non-keyed) XB7ND21 stay-put selector when the 2-position function must stay locked out from unauthorized operators between shift changes; the key 455 profile only withdraws from the left-hand position, so the circuit stays in that state once the key is removed. The single 1 NO contact suits an enable/permissive signal to a PLC input rather than switching line power directly.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 14

Range of Product Harmony XB7
Product or Component Type Selector switch
Device short name XB7
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 10
Net Weight 0.11 lb(US) (0.05 kg)
IP degree of protection IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Shape of signaling unit head Round
Type of operator stay put
Operator position information 2 positions 90°
Type of Keylock Key 455
Key withdrawal position Left-hand
Contacts type and composition 1 NO
Positive opening Without

Complementary 18

CAD overall width 1.1 in (29 mm)
CAD overall height 1.1 in (29 mm)
CAD overall depth 3.3 in (83 mm)
Terminals description ISO n°1 (13-14)NO
Device mounting Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1
Fixing center >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm)
Fixing mode Fixing nut 17.7…21.2 lbf.in (2…2.4 N.m)
Contact operation Slow-break
Mechanical durability 300000 cycles
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Short-circuit protection 4 A cartridge fuse gG IEC 60947-5-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
[Ie] rated operational current 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.3 A 240 V, AC-14, D300 IEC 60947-5-1, 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4

Environment 8

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II conforming to IEC 61140
Enclosure Type UL type 3/12
Standards IEC 60947-1, IEC 60947-5-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB7NG21
Type designation XB7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480470271

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB7NG21

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-1
  • IEC 60947-5-1
  • UL 508
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • JIS C8201-1
Quick answers

Questions about the XB7

What is the HS code of XB7 for customs?

The tariff (HS) code on file for XB7 is 853650.

What is the EAN of XB7?

The EAN (GTIN) of XB7 is 3606480470271.

Where does XB7 ship from, and how fast?

XB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
