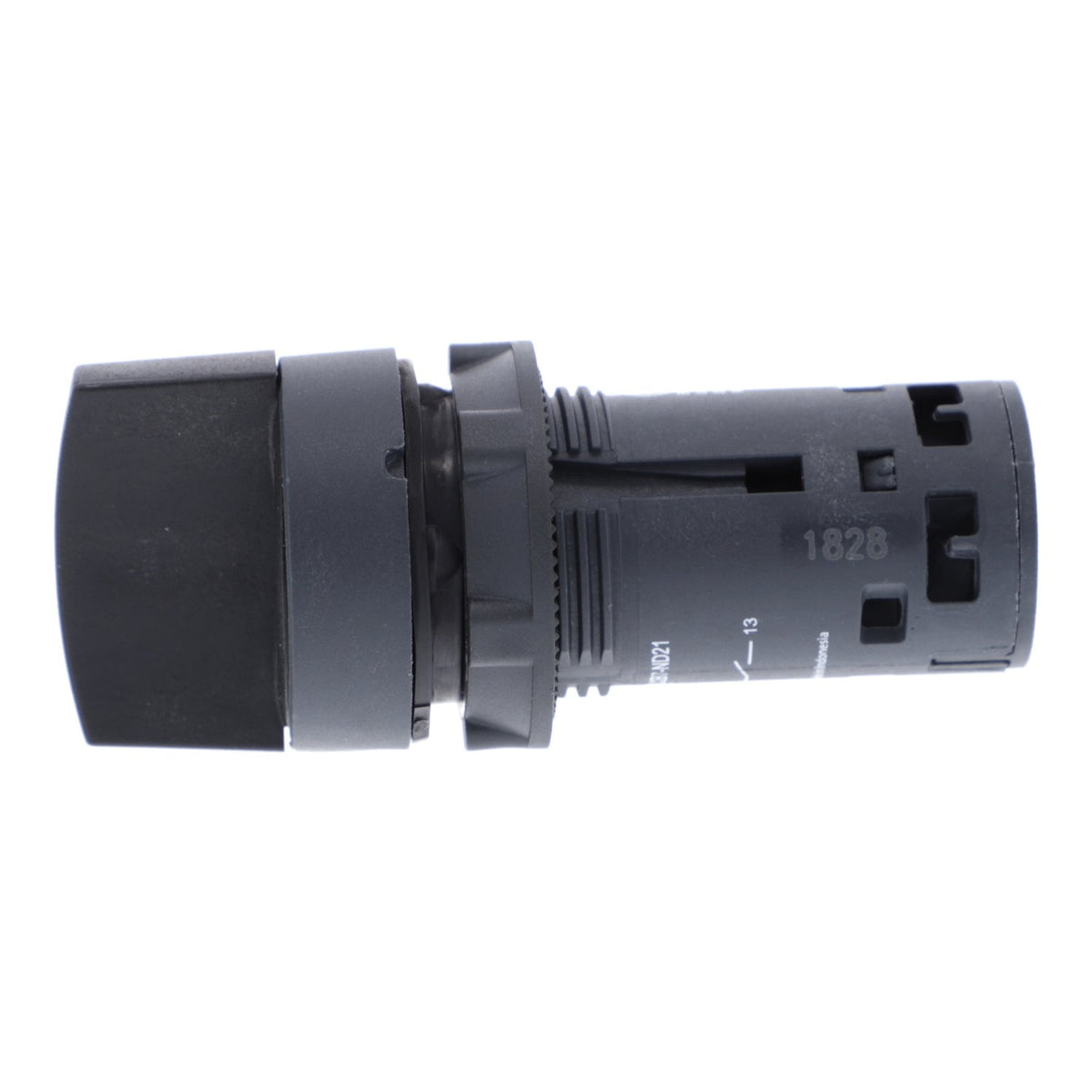

Schneider Electric XB7ND25 Harmony XB7 Monolithic Selector Switch Black Handle 22 mm Stay Put Selector Switch

Harmony XB7 22mm 2-position selector switch, 1 NO + 1 NC, stay put, IP65.

Range of Product
Harmony XB7
Product or Component Type
Selector switch
Device short name
XB7
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
10
Net Weight
0.057 lb(US) (0.026 kg)
EAN
3606480470257
Description

About the XB7

The Schneider Electric XB7ND25 is a Harmony XB7 monolithic selector switch for 22 mm panel cutouts, giving operators a stay-put 2-position black handle wired to a 1 NO + 1 NC contact block. Screw-clamp terminals and an IP65-rated plastic body (UL type 3/12) let it switch between machine or process modes on panels exposed to dust and washdown.

Certifications & Standards

  • JIS C8201-5-1
  • IEC 60947-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • JIS C8201-1

Selection Notes

The 1 NO + 1 NC contact block sets how many separate circuits the XB7ND25 switches per handle position, so it should be matched to the number of modes the machine logic actually needs rather than over-specified. Because the operator is stay-put rather than spring-return, the selected position holds without the operator continuing to hold the handle, which suits mode-selection duty (manual/auto, local/remote) rather than a momentary command.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony XB7
Product or Component Type Selector switch
Device short name XB7
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 10
Net Weight 0.057 lb(US) (0.026 kg)
IP degree of protection IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
Shape of signaling unit head Round
Type of operator stay put
Operator profile Black standard handle
Operator position information 2 positions 90°
Contacts type and composition 1 NO + 1 NC
Positive opening With IEC 60947-5-1 appendix K

Complementary 18

CAD overall width 1.1 in (29 mm)
CAD overall height 1.1 in (29 mm)
CAD overall depth 2.7 in (68.5 mm)
Terminals description ISO n°1 (13-14)NO, (21-22)NC
Device mounting Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1
Fixing center >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm)
Fixing mode Fixing nut 17.7…21.2 lbf.in (2…2.4 N.m)
Contact operation Slow-break
Mechanical durability 300000 cycles
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Short-circuit protection 4 A cartridge fuse gG IEC 60947-5-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
[Ie] rated operational current 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.3 A 240 V, AC-14, D300 IEC 60947-5-1, 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4

Environment 8

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II conforming to IEC 61140
Enclosure Type UL type 3/12
Standards JIS C8201-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Show all 53 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB7ND25
Type designation XB7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480470257

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.026 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
