Schneider Electric XB7NA42 Harmony XB7 Monolithic Push Button Red Flush 22 mm Spring Return Push Button

% $-5.47
Schneider Electric XB7NA42 Harmony XB7 Red push button - 22 mm spring return 1 NC
Schneider Electric XB7NA42 Harmony XB7 Red push button - 22 mm spring return 1 NC

Schneider Electric XB7NA42 Harmony XB7 Monolithic Push Button Red Flush 22 mm Spring Return Push Button

Brand: Schneider Electric
Reference No: XB7NA42
Catalog No: XB7NA42
Series: Harmony XB7
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

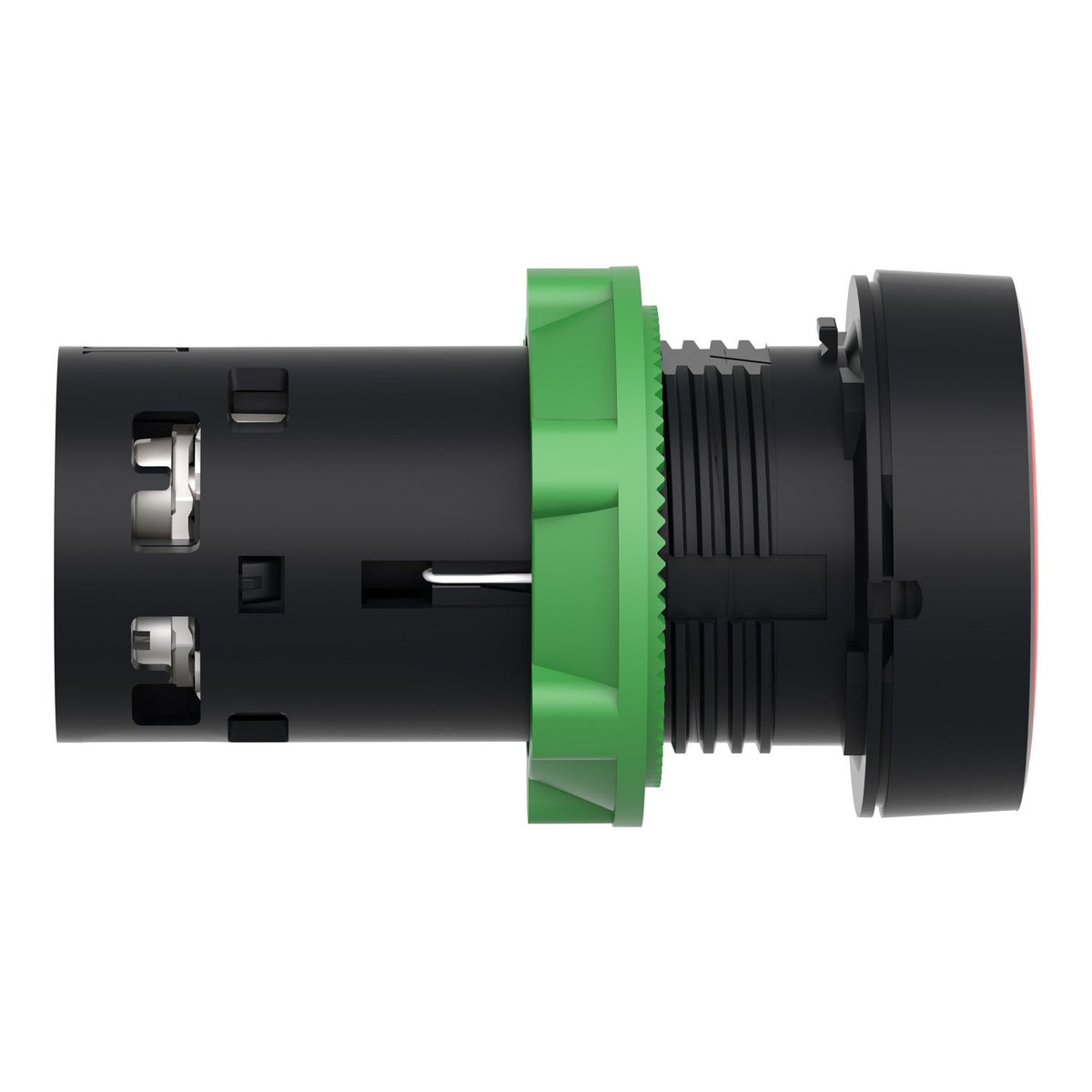

The Schneider Electric XB7NA42 is a Harmony XB7 monolithic push button for 22 mm panel cutouts on machine control stations. The red flush unmarked operator returns by spring, switches a 1 NC slow-break contact, and wires through screw-clamp terminals, with an IP65-rated plastic body (UL type 3/12) for dusty or washdown environments.

Technical Specifications

Reference XB7NA42
Brand Schneider Electric
Range of Product Harmony XB7
Product or Component Type Push-button
Device presentation Monolithic product
Mounting diameter 22 mm
Operator profile Red flush, unmarked
Type of operator Spring return
Contacts type and composition 1 NC
Contact operation Slow-break
Short-circuit protection 4 A cartridge fuse gG
[Ie] rated operational current 0.6 A 120 V AC-14 | 0.3 A 240 V AC-14 | 0.22 A 125 V DC-13 | 0.1 A 250 V DC-13
Electrical reliability Λ ≤ 10exp(-6) at 17 V, 5 mA (IEC 60947-5-4)
[Ui] rated insulation voltage 250 V (IEC 60947-1)
[Uimp] rated impulse withstand voltage 4 kV (IEC 60947-1)
Connections - terminals Screw clamp, ≤ 2 x 1.5 mm² with cable end / 1 x 0.34...2 x 2.5 mm² without
Dimensions (H x W x D) 29 x 29 x 51.5 mm
Net weight 0.021 kg (0.046 lb)
IP degree of protection IP20 rear / IP65 front (IEC 60529)
Enclosure Type UL type 3/12
GTIN 3606480470127

Certifications & Standards

  • GOST
  • CCC
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • JIS C8201-1

Selection Notes

The 1 NC contact fits the XB7NA42 for a stop or interlock circuit that must open on operator press, and the red cap follows Harmony's usual colour convention for that function. Its screw-clamp terminals accept field wiring without crimped Faston tabs, which simplifies retrofits into panels already wired with ferruled leads, and the flush profile keeps the button recessed to resist accidental actuation on crowded control stations.

Technical Details

Short Description
Harmony XB7 22mm red push button, spring return, 1 NC, IP65.
Mounting Type
Panel mount, 22 mm cutout
Protection Type
IP65
Catalog No
XB7NA42
Delivery Date (Days)
30 days
Model Number
Harmony XB7
Tariff Code
853650
