- Part number
- XB7NA31
- Model no
- XB7
- CCC

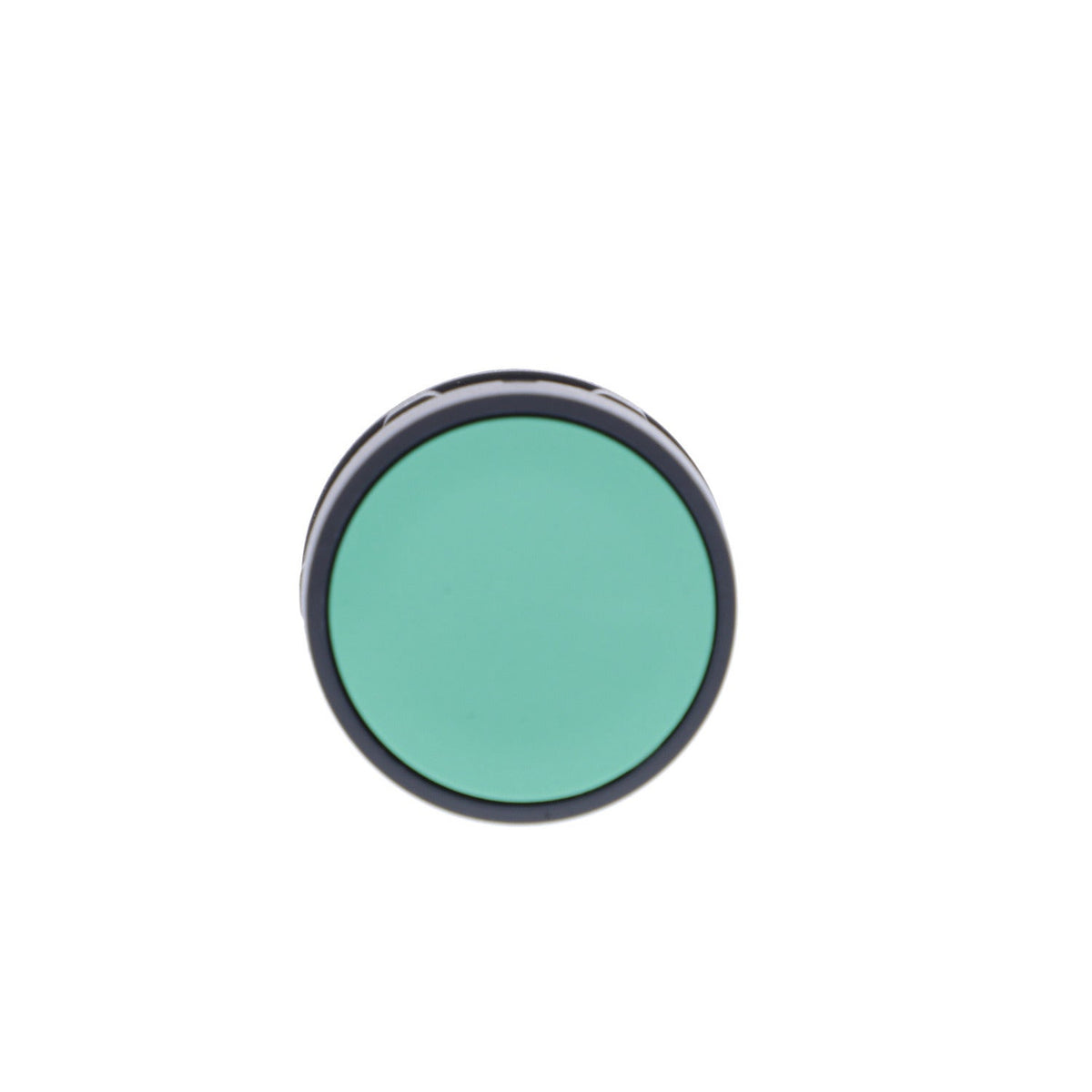

Harmony XB7Schneider Electric XB7NA31 Harmony XB7 Monolithic Push Button Green Flush 22 mm Spring Return Push Button
Harmony XB7 22mm green push button, spring return, 1 NO, IP65.
Description
About the XB7
About the XB7
The Schneider Electric XB7NA31 is a Harmony XB7 monolithic push button for 22 mm panel cutouts on machine control stations. The green flush unmarked operator returns by spring, switches a 1 NO slow-break contact, and wires through screw-clamp terminals, with an IP65-rated plastic body (UL type 3/12) for dusty or washdown environments.
Certifications & Standards
- GOST
- CCC
- UL 508
- JIS C8201-5-1
- IEC 60947-5-1
- CSA C22.2 No 14
- IEC 60947-1
- JIS C8201-1
Selection Notes
The 1 NO contact fits the XB7NA31 for a standard start/run command circuit, and the green cap follows Harmony's usual colour convention for that function. Its screw-clamp terminals accept field wiring without crimped Faston tabs, which simplifies retrofits into panels already wired with ferruled leads, and the flush profile keeps the button recessed to resist accidental actuation on crowded control stations.
Specification
Full specification
Main 12
| Range of Product | Harmony XB7 |
|---|---|
| Product or Component Type | Push-button |
| Device short name | XB7 |
| Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 |
| IP degree of protection | IP20 IEC 60529 rear face), IP65 IEC 60529 front face) |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush, unmarked |
| Contacts type and composition | 1 NO |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1 |
| Device presentation | Monolithic product |
Complementary 19
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 2.03 in (51.5 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.046 lb(US) (0.021 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1 |
| Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Contact operation | Slow-break |
| Positive opening | With (only NO) |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Short-circuit protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.3 A 240 V, AC-14, D300 IEC 60947-5-1, 0.6 A 120 V, AC-14, D300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4 |
Environment 9
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 61140 |
| Enclosure Type | UL type 3/12 |
| Standards | UL 508, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-1, JIS C8201-1 |
| Product Certifications | GOST, CCC |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB7NA31 |
|---|---|
| Type designation | XB7 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480470011 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.021 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB7NA31
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CCC
- UL 508
- CSA C22.2 No 14
- JIS C8201-5-1
- IEC 60947-5-1
- IEC 60947-1
- JIS C8201-1
Quick answers
Questions about the XB7
What is the HS code of XB7 for customs?
The tariff (HS) code on file for XB7 is 853650.
What is the EAN of XB7?
The EAN (GTIN) of XB7 is 3606480470011.
Where does XB7 ship from, and how fast?
XB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
