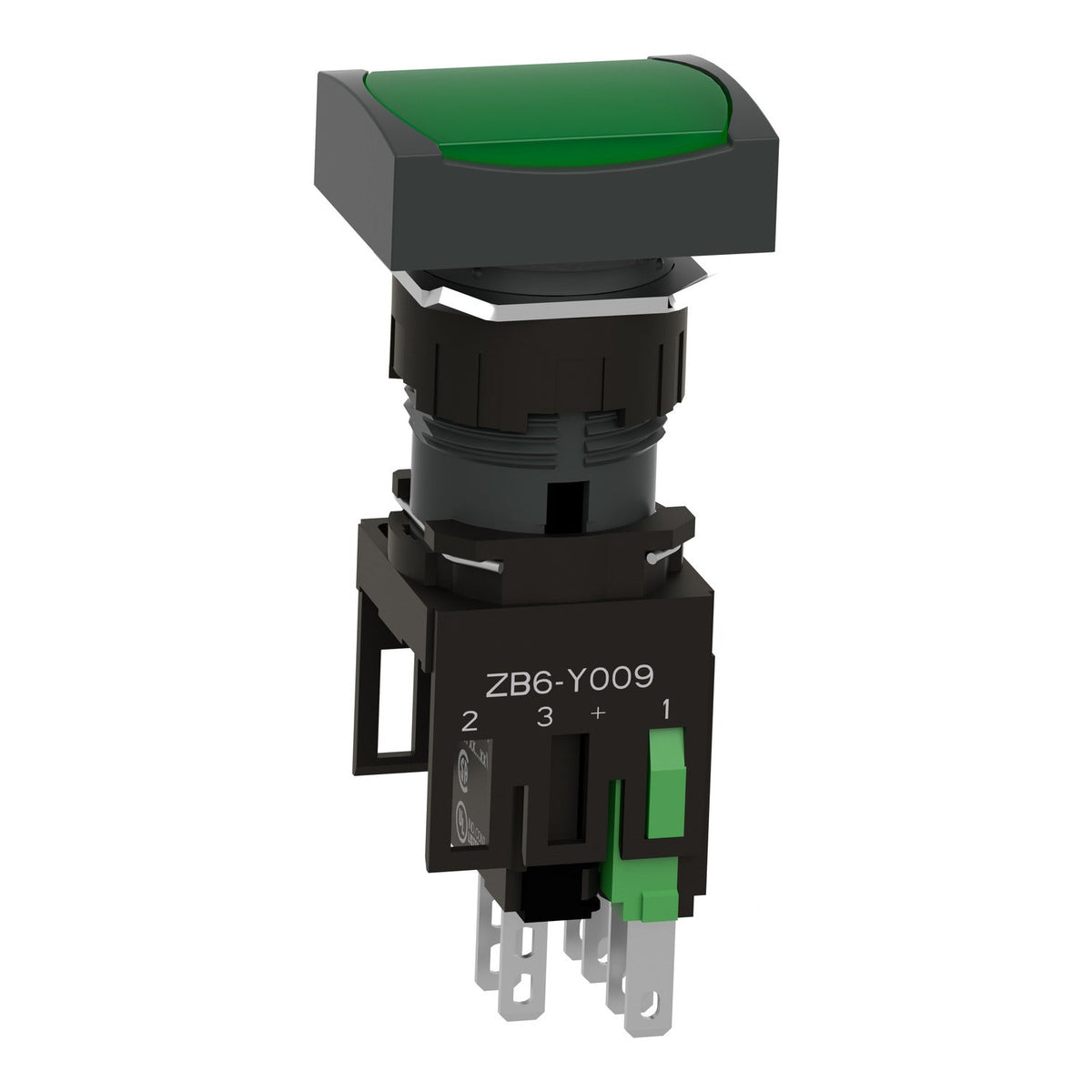

Harmony XB6Schneider Electric XB6DW3B1B Harmony XB6 Illuminated Push Button Green Flush 16 mm Spring Return Push Button
Harmony XB6 16mm green illuminated push button, 1 NO, 12-24V AC/DC LED, IP65.
Description
About the XB6
About the XB6
The Schneider Electric XB6DW3B1B is a Harmony XB6 complete illuminated push button sized for 16 mm panel cutouts on small machines and compact control boards. The green flush operator carries a 1 NO slow-break contact, a 12-24 V AC/DC integral LED, and Faston 2.8 x 0.5 mm terminals, with an IP65-rated plastic body rated NEMA 4, 4X and 13.
Certifications & Standards
- UL
- CCC
- GOST
- CSA
- JIS C 852
- IEC 60947-5-5
- IEC 60947-5-1
- JIS C 4520
- IEC 60947-1
- CSA C22.2 No 14
Selection Notes
The 1 NO contact and green lens follow Harmony's standard start/stop colour coding, so the XB6DW3B1B drops into existing XB6 panel layouts without a wiring-diagram change. Its 12-24 V AC/DC LED runs off the same low-voltage control supply as the plant's PLC I/O, and the 16 mm mounting diameter suits enclosure doors too small for a 22 mm Harmony XB7 illuminated push button.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | Green flush, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
Complementary 20
| CAD overall width | 0.9 in (24 mm) |
|---|---|
| CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.049 lb(US) (0.022 kg) |
| Operating position | Any position |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NO changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 3.5 N NO changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
Environment 14
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | JIS C 852, IEC 60947-5-5, IEC 60947-5-1, JIS C 4520, IEC 60947-1, CSA C22.2 No 14 |
| Product Certifications | UL, CCC, GOST, CSA |
| Vibration resistance | +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6DW3B1B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110763782 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.022 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
