- Part number
- XB6DW1B1B
- Model no
- XB6
- UL
- CSA
- CCC

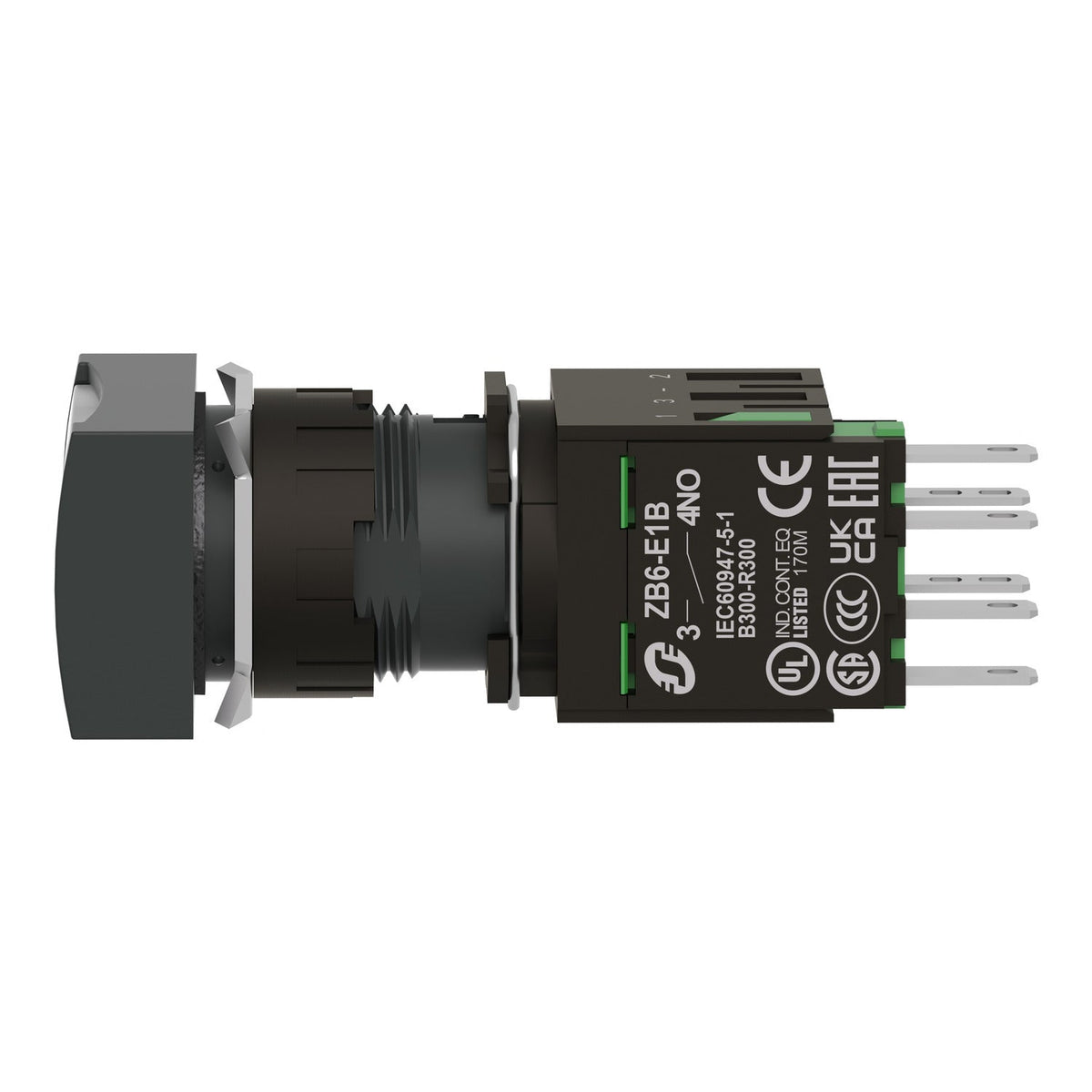

Harmony XB6Schneider Electric XB6DW1B1B Harmony XB6 Illuminated Push Button White Flush 16 mm Spring Return Push Button
Harmony XB6 16mm white illuminated push button, 1 NO, 12-24V AC/DC LED, IP65.
Description
About the XB6
About the XB6
The Schneider Electric XB6DW1B1B is a Harmony XB6 complete illuminated push button sized for 16 mm panel cutouts on small machines and compact control boards. The white flush operator carries a 1 NO slow-break contact, a 12-24 V AC/DC integral LED, and Faston 2.8 x 0.5 mm terminals, with an IP65-rated plastic body rated NEMA 4, 4X and 13.
Certifications & Standards
- CCC
- GOST
- CSA
- UL
- JIS C 4520
- JIS C 852
- IEC 60947-5-1
- IEC 60947-1
- CSA C22.2 No 14
- IEC 60947-5-5
Selection Notes
The 1 NO contact and white lens follow Harmony's standard start/stop colour coding, so the XB6DW1B1B drops into existing XB6 panel layouts without a wiring-diagram change. Its 12-24 V AC/DC LED runs off the same low-voltage control supply as the plant's PLC I/O, and the 16 mm mounting diameter suits enclosure doors too small for a 22 mm Harmony XB7 illuminated push button.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | White flush, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
Complementary 20
| CAD overall width | 0.9 in (24 mm) |
|---|---|
| CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.049 lb(US) (0.022 kg) |
| Operating position | Any position |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NO changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 3.5 N NO changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
Environment 14
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | JIS C 4520, JIS C 852, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-5 |
| Product Certifications | UL, CCC, GOST, CSA |
| Vibration resistance | +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6DW1B1B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110763720 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.022 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB6DW1B1B
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CCC
- JIS C 4520
- JIS C 852
- IEC 60947-5-1
- IEC 60947-1
- CSA C22.2 No 14
- IEC 60947-5-5
Quick answers
Questions about the XB6
Which supply voltage is XB6 rated for?
The rated operational voltage of XB6 is 12–24–DC V DC.
What is the HS code of XB6 for customs?
The tariff (HS) code on file for XB6 is 853650.
What is the EAN of XB6?
The EAN (GTIN) of XB6 is 3389110763720.
Where does XB6 ship from, and how fast?
XB6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
