- Part number
- XB6DGC5B
- Model no
- XB6
Description
About the XB6
About the XB6

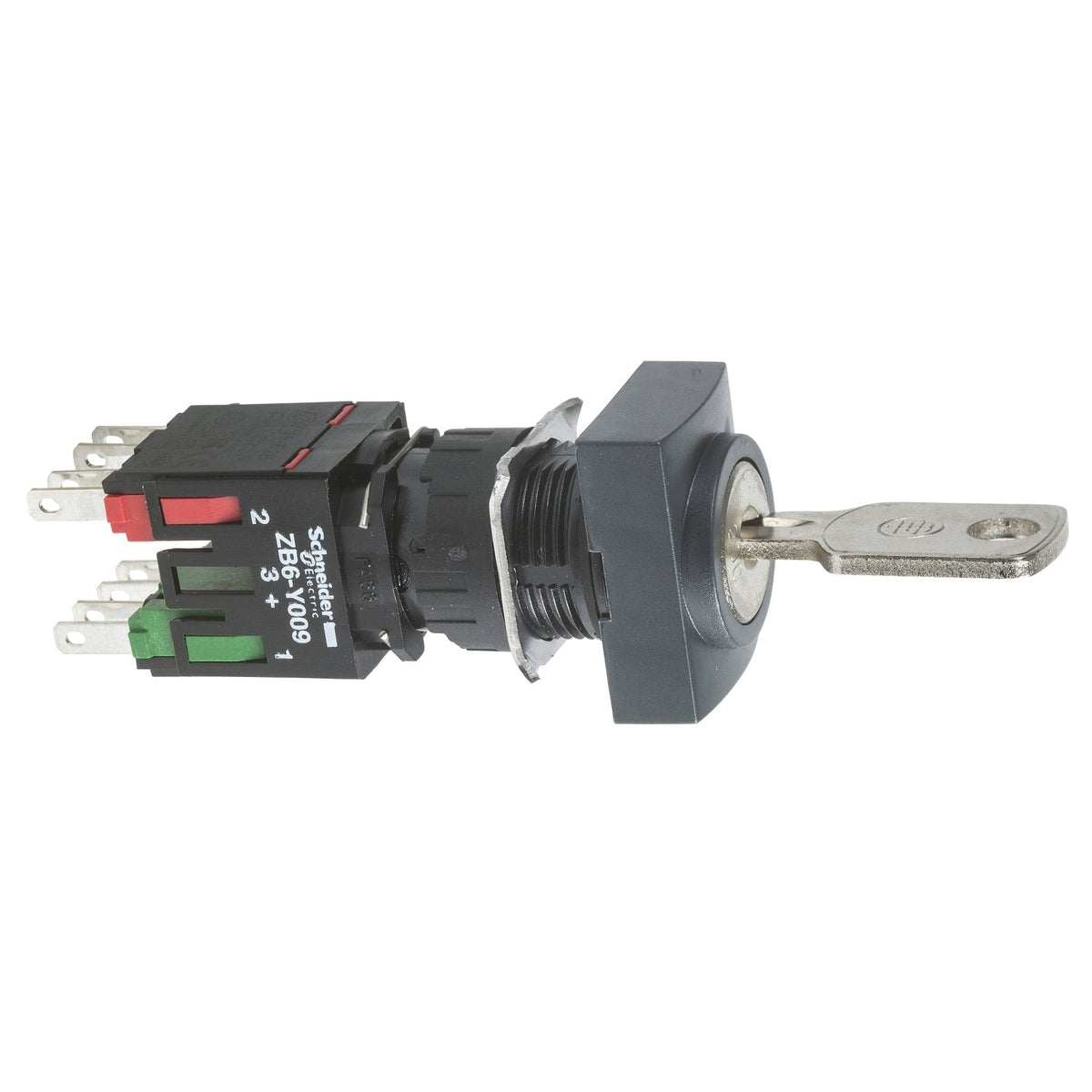

The Schneider Electric XB6DGC5B is a Harmony XB6 complete key selector switch with a rectangular 16 mm plastic bezel, stay-put operator with 2 positions at 70 degrees released by a Ronis No. 200 key, and 1NO+1NC slow-break contacts. It mounts into a 16 mm cut-out to restrict mode changes to key holders.
Certifications & Standards
- CCC
- UL
- CSA
- GOST
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C 852
- UL 508
- IEC 60947-1
- IEC 60947-5-5
- JIS C8201-5-1
- JIS C8201-1
Selection Notes
The Key 200 lock restricts who can change position: the key withdraws in either of the 2 positions, so mode selection stays locked once the operator removes it, unlike the handle-operated XB6DD221B, which anyone can turn. This suits a restricted local/remote or lockout-style mode change where a supervisor should control access. The 1NO+1NC contact pair lets a single switch confirm which position is active and interlock an opposing function.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete selector switch |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Operating position | Any position |
| Shape of signaling unit head | Rectangular |
| Type of operator | stay put |
| Operator profile | key switch |
| Operator position information | 2 positions 70° |
| Type of Keylock | Key 200 |
| Key withdrawal position | In any position |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
Complementary 15
| CAD overall width | 0.9 in (24 mm) |
|---|---|
| CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 3.1 in (80 mm) |
| Terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| Net Weight | 0.079 lb(US) (0.036 kg) |
| Positive opening | With IEC 60947-5-1 appendix K |
| Mechanical durability | 200000 cycles |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
Environment 8
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508, IEC 60947-1, IEC 60947-5-5, JIS C8201-5-1, JIS C8201-1 |
| Product Certifications | CCC, UL, CSA, GOST |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6DGC5B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110764666 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.036 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
