- Part number
- XB6DF4B2B
- Model no
- XB6
- UL
- CSA
- CCC

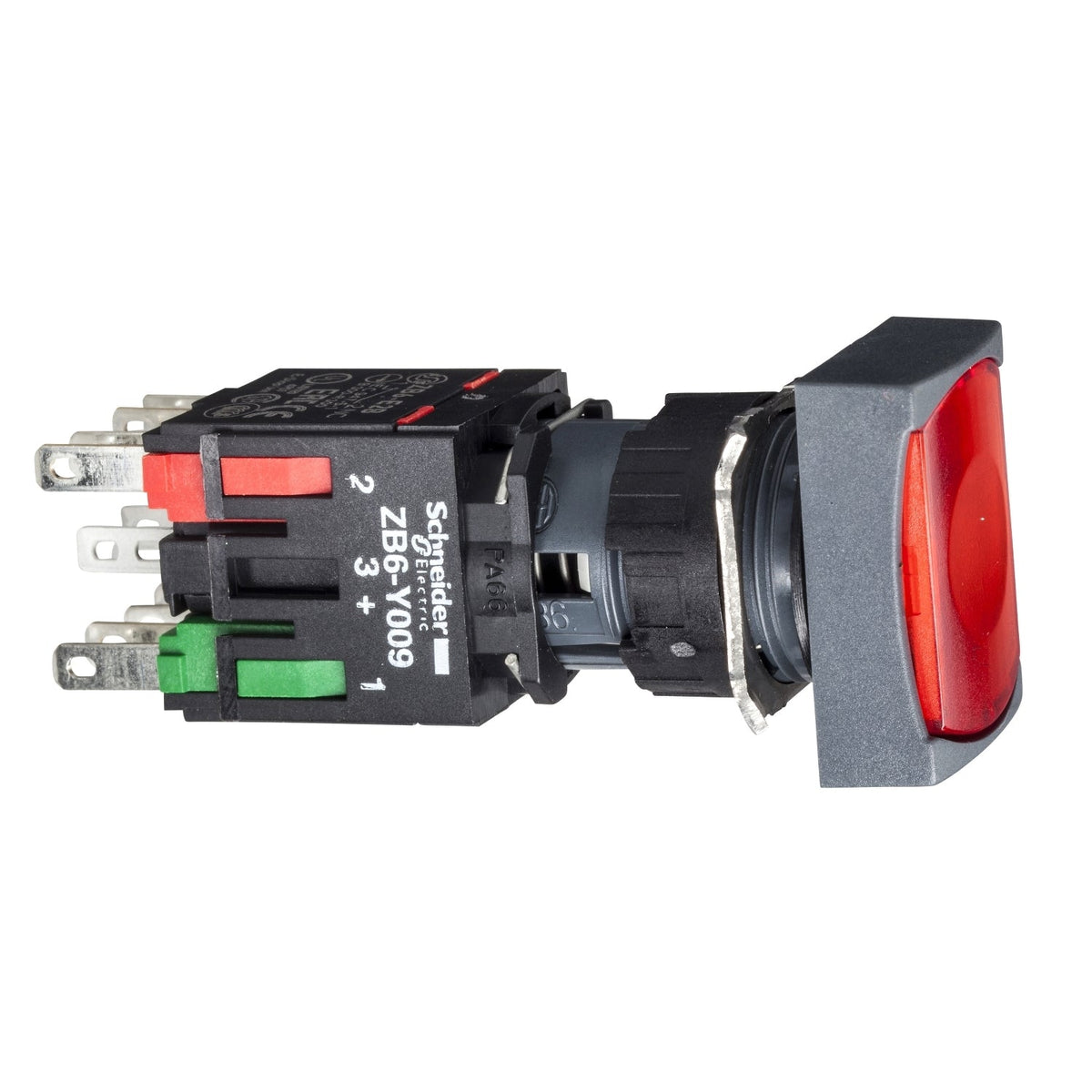

Harmony XB6Schneider Electric XB6DF4B2B Harmony XB6 Illuminated Red Rectangular Flush 16 mm Latching 1NC Push Button
Schneider Electric XB6DF4B2B Harmony XB6 illuminated push button, red rectangular flush, 16 mm, latching, 1NC.
Description
About the XB6
About the XB6
The Schneider Electric XB6DF4B2B is a Harmony XB6 complete illuminated push button with a red flush rectangular head, 16 mm plastic bezel, latching operator, and 1NC slow-break contact, supplied at 12...24 V AC/DC. The rectangular head gives a third shape option alongside the round XB6A and square XB6C families, mounting into the same 16 mm cut-out.
Certifications & Standards
- UL
- CCC
- CSA
- GOST
- EN/IEC 60947-1
- UL 508
- JIS C 852
- CSA C22.2 No 14
- EN/IEC 60947-5-5
- EN/IEC 60947-5-1
- JIS C 4520
Selection Notes
The rectangular head is a third shape-coded option alongside the round XB6AW4B2B and square XB6CW4B2B for the same electrical function. The 1NC contact opens on actuation, so this button suits a stop or interlock-break command rather than a start signal, unlike the 1NO XB6DF1B5B and XB6DF3B1B. Red follows IEC 60073 colour-coding for stop or fault-related commands.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | latching |
| Operator profile | Red flush, unmarked |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
Complementary 20
| Height | 0.7 in (18 mm) |
|---|---|
| Width | 0.9 in (24 mm) |
| Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (21-22)NC |
| Net Weight | 0.049 lb(US) (0.022 kg) |
| Operating position | Any position |
| Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.08 in (2 mm) NC changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 4.5 N NC changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
Environment 13
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | EN/IEC 60947-1, UL 508, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C 4520 |
| Product Certifications | UL, CCC, CSA, GOST |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 73 specifications ↓ Show less ↑25 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6DF4B2B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110764000 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.2 in (3.0 cm) |
| Package 1 Width | 3.9 in (10.0 cm) |
| Package 1 Length | 3.9 in (10.0 cm) |
| Package weight(Lbs) | 0.6 oz (17.0 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 5.9 in (15 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 2.745 lb(US) (1.245 kg) |
| Shipping weight | 0.022 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB6DF4B2B
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CCC
- EN/IEC 60947-1
- UL 508
- JIS C 852
- CSA C22.2 No 14
- EN/IEC 60947-5-5
- EN/IEC 60947-5-1
- JIS C 4520
Quick answers
Questions about the XB6
Which supply voltage is XB6 rated for?
The rated operational voltage of XB6 is 12–24–DC V DC.
What is the HS code of XB6 for customs?
The tariff (HS) code on file for XB6 is 853650.
What is the EAN of XB6?
The EAN (GTIN) of XB6 is 3389110764000.
Where does XB6 ship from, and how fast?
XB6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
