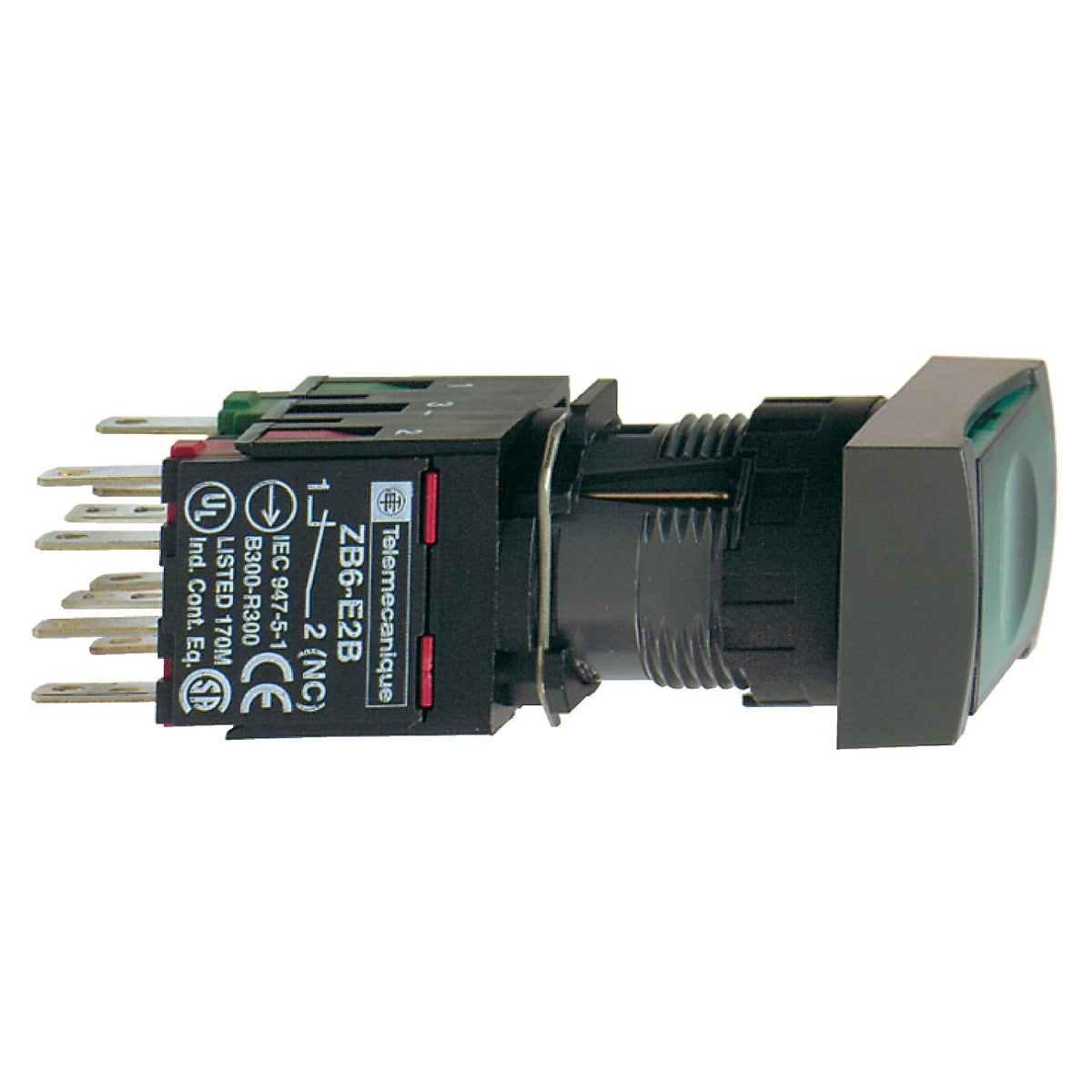

Schneider Electric XB6DF3B1B Harmony XB6 Illuminated Green Rectangular Flush 16 mm Latching 1NO Push Button

% $-25.72
Schneider Electric XB6DF3B1B Harmony XB6 illuminated push button green rectangular flush Push Button
Schneider Electric XB6DF3B1B Harmony XB6 illuminated push button green rectangular flush Push Button

Schneider Electric XB6DF3B1B Harmony XB6 Illuminated Green Rectangular Flush 16 mm Latching 1NO Push Button

Brand: Schneider Electric
Reference No: XB6DF3B1B
Catalog No: XB6DF3B1B
Series: Harmony XB6
Tariff Code (HS): 853650
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6DF3B1B is a Harmony XB6 complete illuminated push button with a green flush rectangular head, 16 mm plastic bezel, latching operator, and 1NO slow-break contact, supplied at 12...24 V AC/DC. The rectangular head gives a third shape option alongside the round XB6A and square XB6C families, mounting into the same 16 mm cut-out.

Technical Specifications

Reference XB6DF3B1B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110763942
Product or Component Type Complete illuminated push-button
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Rectangular
Type of Operator Latching
Operator Profile Green flush, unmarked
Contacts Type and Composition 1 NO, slow-break
Light Source Integral LED
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.022 kg

Certifications & Standards

  • CSA
  • GOST
  • UL
  • CCC
  • CSA C22.2 No 14
  • JIS C 4520
  • UL 508
  • EN/IEC 60947-5-1
  • EN/IEC 60947-5-5
  • EN/IEC 60947-1
  • JIS C 852

Selection Notes

The rectangular head is a third shape-coded option alongside the round XB6AF3B1B and square XB6CF3B1B for the same electrical function. Green follows IEC 60073 colour-coding for start/on commands. The latching operator keeps the button pressed-in until manually released, suiting a maintained mode-select command rather than a momentary pulse.

Technical Details

Short Description
Schneider Electric XB6DF3B1B Harmony XB6 illuminated push button, green rectangular flush, 16 mm, latching, 1NO.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6DF3B1B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
