Schneider Electric XB6DD235B Harmony XB6 Black Rectangular 16 mm 3-Position Stay Put 1NO+1NC Selector Switch

% $-27.53
Schneider Electric XB6DD235B Harmony XB6 selector switch black rectangular 3-position Selector Switch
Schneider Electric XB6DD235B Harmony XB6 selector switch black rectangular 3-position Selector Switch

Schneider Electric XB6DD235B Harmony XB6 Black Rectangular 16 mm 3-Position Stay Put 1NO+1NC Selector Switch

Brand: Schneider Electric
Reference No: XB6DD235B
Catalog No: XB6DD235B
Series: Harmony XB6
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$27.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

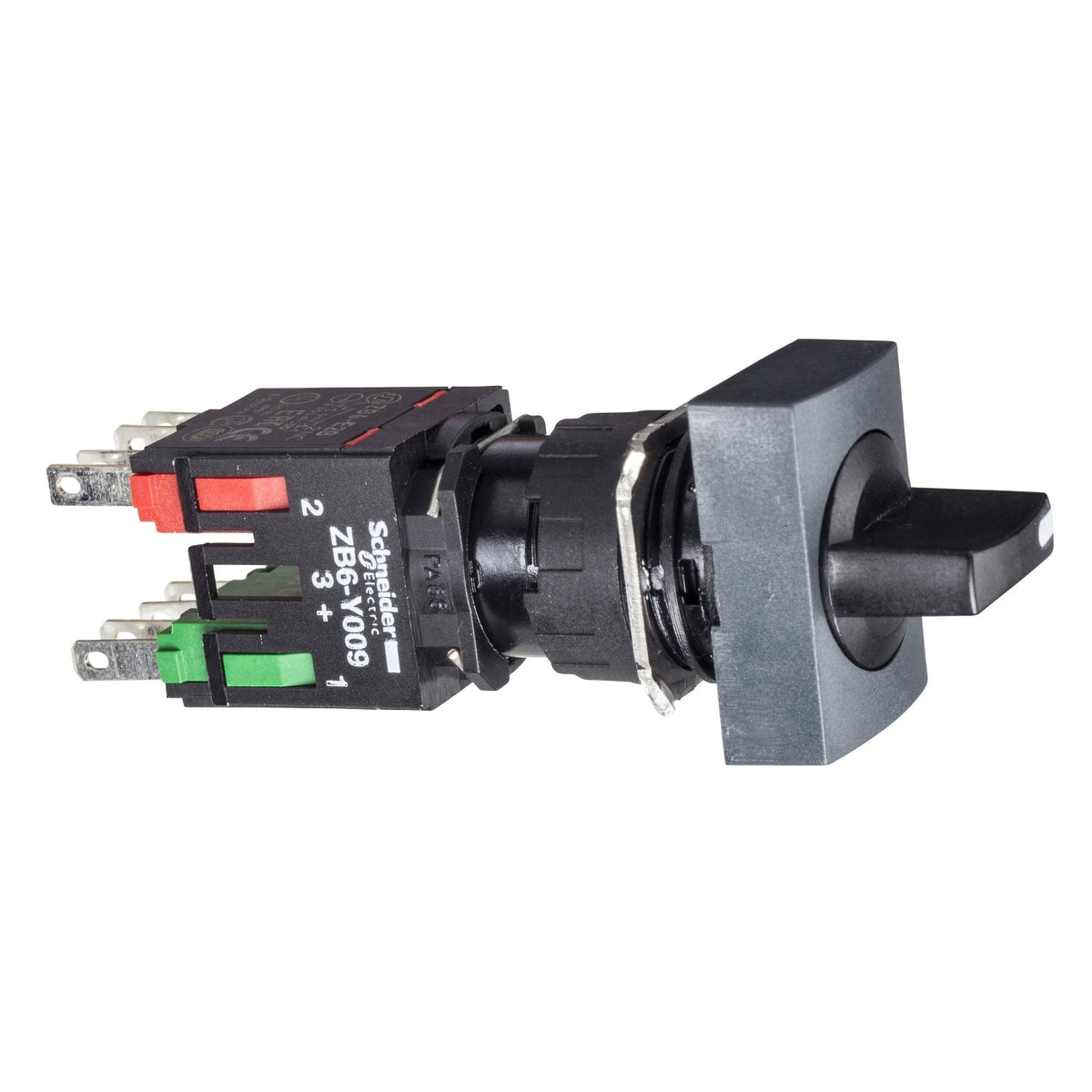

The Schneider Electric XB6DD235B is a Harmony XB6 complete selector switch with a black rectangular handle on a 16 mm plastic bezel, stay-put operator with 3 positions at 60 degrees, and 1NO+1NC slow-break contacts. It mounts into a 16 mm cut-out for compact three-state mode or source selection in small panels.

Technical Specifications

Reference XB6DD235B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110764635
Product or Component Type Complete selector switch
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Rectangular
Type of Operator Stay put
Operator Profile Black standard handle
Operator Position Information 3 positions, 60 degrees
Contacts Type and Composition 1 NO + 1 NC, slow-break
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
Overall Dimensions (W x H x D) 24 x 18 x 68 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.024 kg

Certifications & Standards

  • CCC
  • CSA
  • GOST
  • UL
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-5
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • JIS C 852
  • UL 508
  • JIS C8201-1

Selection Notes

The 3-position stay-put handle adds a centre state to the 2-position XB6DD221B, suiting a hand-off-auto or three-source selection where a neutral middle position is needed. The 1NO+1NC contact pair lets a single switch confirm which position is active and interlock an opposing function. Because the handle has no key, any operator can change position, unlike the key-locked XB6DGC5B.

Technical Details

Short Description
Schneider Electric XB6DD235B Harmony XB6 selector switch, black rectangular, 3-position stay put, 1NO+1NC.
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6DD235B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
