Schneider Electric XB6DA22B Harmony XB6 Black Rectangular Flush 16 mm Spring Return 1NC Push Button

% $-14.29

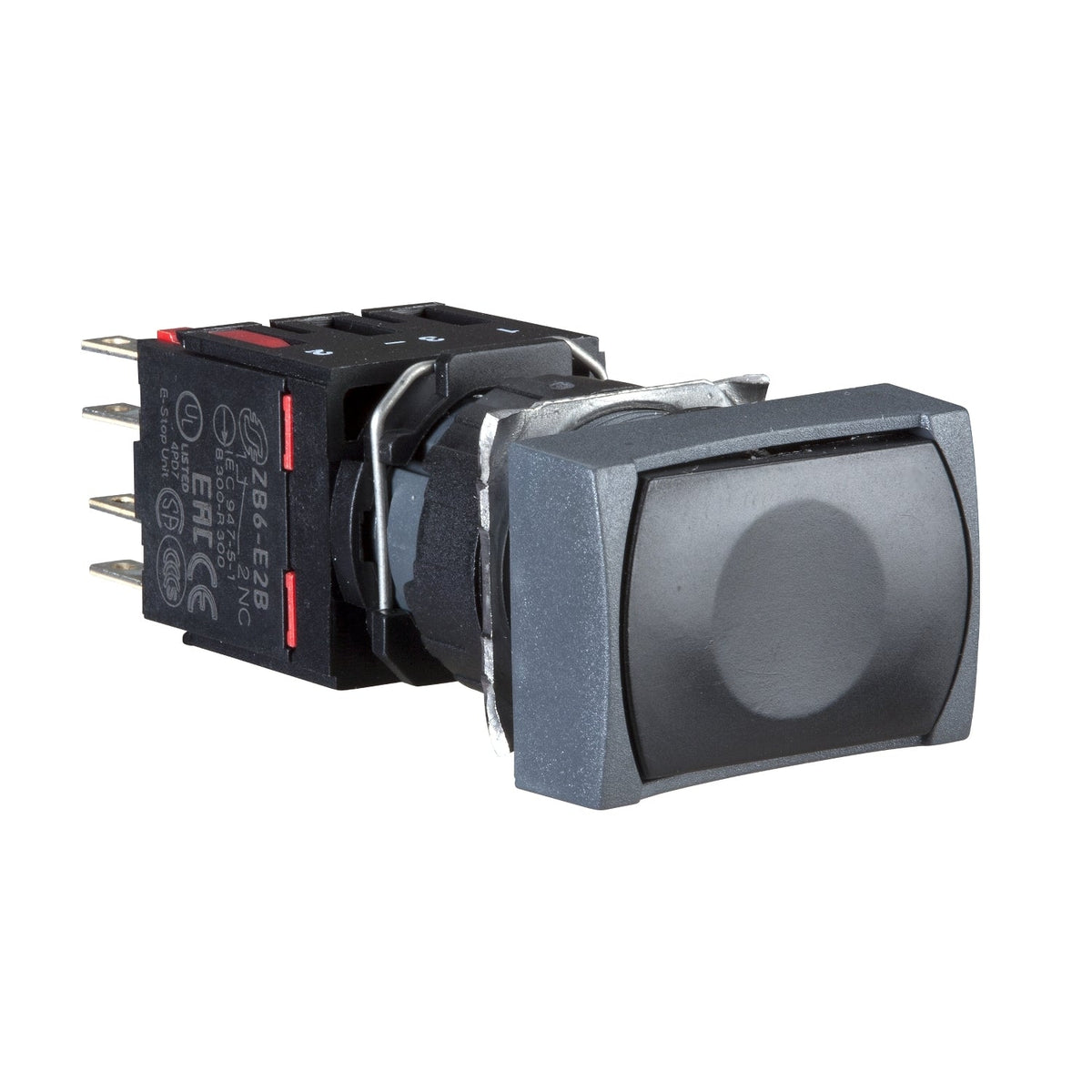

Schneider Electric XB6DA22B Harmony XB6 push button black rectangular flush Push Button
Schneider Electric XB6DA22B Harmony XB6 push button black rectangular flush Push Button

Schneider Electric XB6DA22B Harmony XB6 Black Rectangular Flush 16 mm Spring Return 1NC Push Button

Brand: Schneider Electric
Reference No: XB6DA22B
Catalog No: XB6DA22B
Series: Harmony XB6
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6DA22B is a Harmony XB6 complete push button with a black flush rectangular head, 16 mm plastic bezel, spring-return operator, and 1NC slow-break contact. It has no integral lamp, mounting into a 16 mm cut-out for a compact, non-illuminated momentary command point.

Technical Specifications

Reference XB6DA22B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110764390
Product or Component Type Complete push-button
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Rectangular
Type of Operator Spring return
Operator Profile Black flush, unmarked
Contacts Type and Composition 1 NC, slow-break
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
Overall Dimensions (W x H x D) 24 x 18 x 57 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.019 kg

Certifications & Standards

  • GOST
  • CCC
  • UL
  • CSA
  • UL 508
  • IEC 60947-1
  • IEC 60947-5-1
  • JIS C 852
  • CSA C22.2 No 14
  • JIS C 4520
  • IEC 60947-5-5

Selection Notes

The 1NC contact opens on actuation, so the XB6DA22B suits a stop or interlock-break command rather than a start signal; the 1NO XB6DA11B and XB6DA31B variants cover start-type commands instead. Without an integral LED, it suits a simple momentary command where no backlit status feedback is needed. Black is a neutral, non-alarm colour commonly reserved for general stop or acknowledge functions outside the IEC red/green convention.

Technical Details

Short Description
Schneider Electric XB6DA22B Harmony XB6 push button, black rectangular flush, 16 mm, spring return, 1NC, IP65.
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6DA22B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
