Harmony XB6Schneider Electric XB6DA11B Harmony XB6 White Rectangular Flush 16 mm Spring Return 1NO Push Button
Schneider Electric XB6DA11B Harmony XB6 push button, white rectangular flush, 16 mm, spring return, 1NO, IP65.
Description
About the XB6
About the XB6

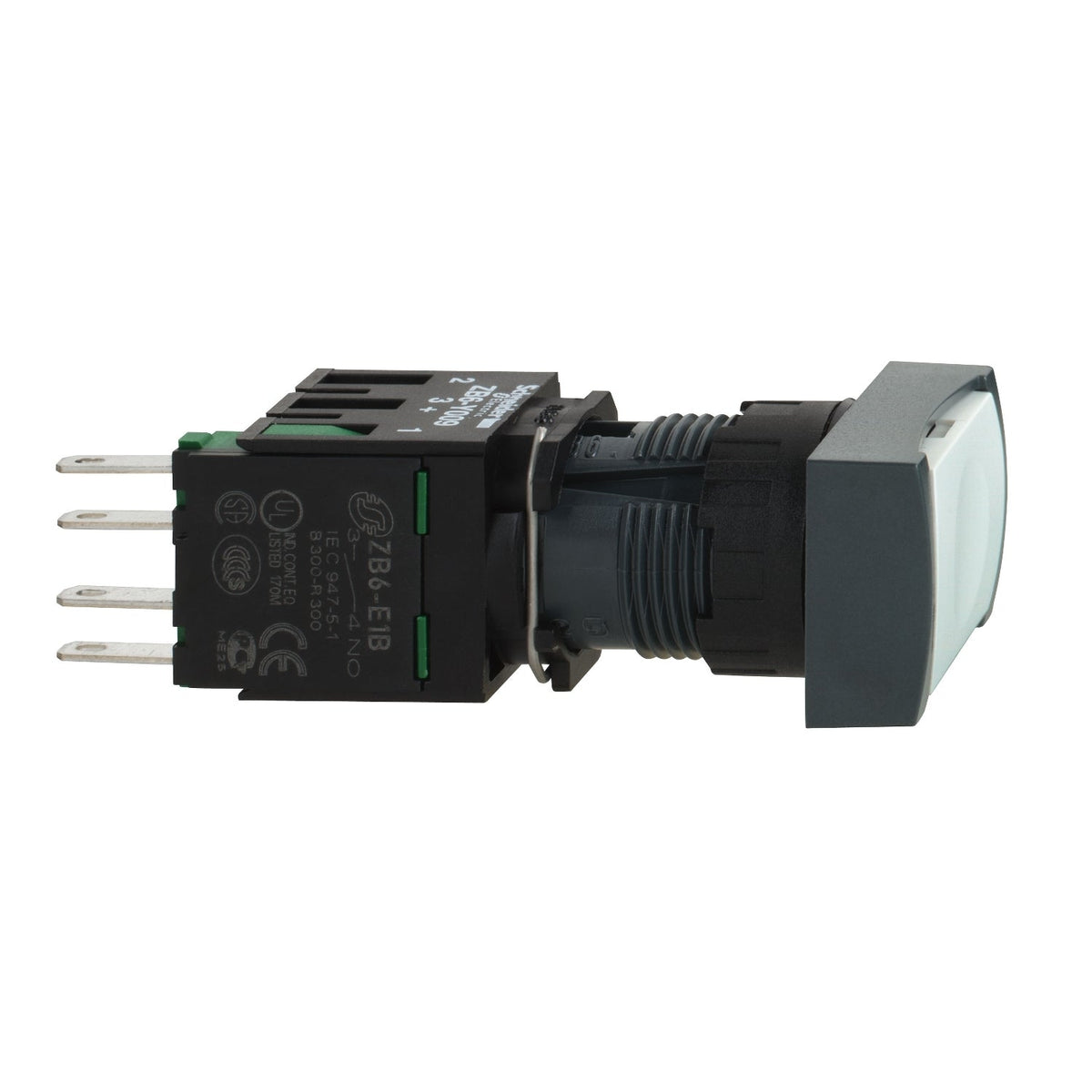

The Schneider Electric XB6DA11B is a Harmony XB6 complete push button with a white flush rectangular head, 16 mm plastic bezel, spring-return operator, and 1NO slow-break contact. It has no integral lamp, mounting into a 16 mm cut-out for a compact, non-illuminated momentary command point.
Certifications & Standards
- CSA
- UL
- CCC
- GOST
- IEC 60947-5-1
- JIS C 4520
- CSA C22.2 No 14
- IEC 60947-1
- JIS C 852
- IEC 60947-5-5
- UL 508
Selection Notes
Without an integral LED, the XB6DA11B suits a simple momentary command where no backlit status feedback is needed, and it skips the low-voltage lamp supply that the illuminated XB6DF1B5B requires. The spring-return operator pulses the contact only while held, matching a start or jog function. The rectangular head gives a third shape option alongside the round XB6A and square XB6C families for panels that code button function by silhouette.
Specification
Full specification
Main 12
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | White flush, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
Complementary 17
| CAD overall width | 0.9 in (24 mm) |
|---|---|
| CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.042 lb(US) (0.019 kg) |
| Operating position | Any position |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NO changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 3.5 N NO changing electrical state |
| Mechanical durability | 2000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
Environment 9
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, IEC 60947-1, JIS C 852, IEC 60947-5-5, UL 508 |
| Product Certifications | CSA, UL, CCC, GOST |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6DA11B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110764215 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.019 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
