Harmony XB6Schneider Electric XB6CW4B2B Harmony XB6 Illuminated Red Square Flush 16 mm Spring Return 1NC Push Button
Schneider Electric XB6CW4B2B Harmony XB6 illuminated push button, red square flush, 16 mm, spring return, 1NC.
Description
About the XB6
About the XB6

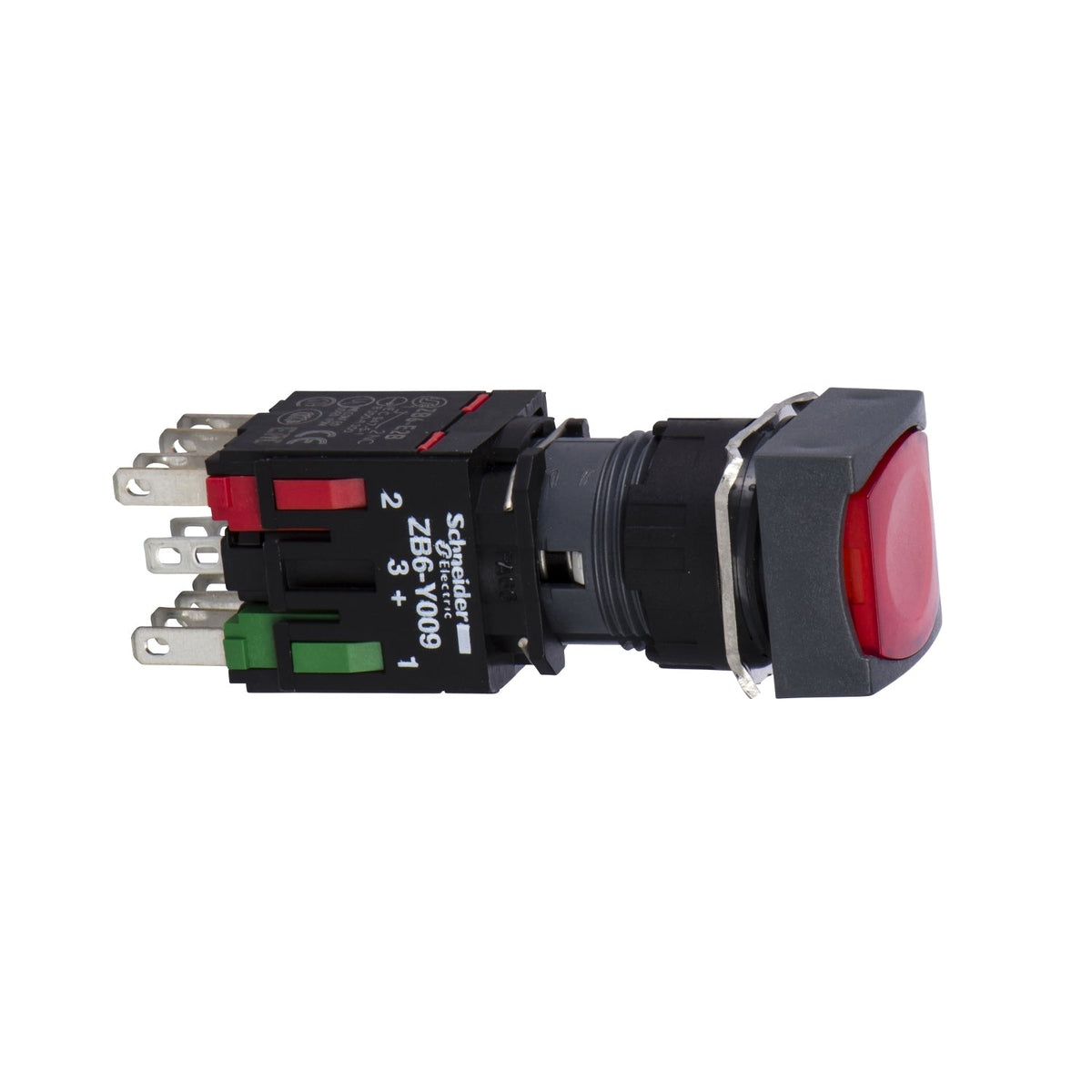

The Schneider Electric XB6CW4B2B is a Harmony XB6 complete illuminated push button with a red flush square head, 16 mm plastic bezel, spring-return operator, and 1NC slow-break contact, supplied at 12...24 V AC/DC. The square head distinguishes it visually from the round XB6AW4B2B on the same panel, mounting into the same 16 mm cut-out.
Certifications & Standards
- CSA
- GOST
- UL
- CCC
- IEC 60947-5-1
- JIS C 4520
- CSA C22.2 No 14
- IEC 60947-5-5
- JIS C 852
- IEC 60947-1
Selection Notes
The square head is a shape-coded alternative to the round XB6AW4B2B for the same electrical function. The 1NC contact opens on actuation, so this button suits a stop or interlock-break command rather than a start signal, unlike the 1NO XB6CW1B1B and XB6CW3B1B. Red follows IEC 60073 colour-coding for stop or fault-related commands. Running on 12...24 V AC/DC with only 15 mA draw, the integral LED shares the same low-voltage control supply as the contact.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square |
| Type of operator | spring return |
| Operator profile | Red flush, unmarked |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
Complementary 20
| CAD overall width | 0.7 in (18 mm) |
|---|---|
| CAD overall height | 0.7 in (18 mm) |
| CAD overall depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (21-22)NC |
| Net Weight | 0.049 lb(US) (0.022 kg) |
| Operating position | Any position |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.08 in (2 mm) NC changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 4.5 N NC changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
Environment 13
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, IEC 60947-5-5, JIS C 852, IEC 60947-1 |
| Product Certifications | CSA, GOST, UL, CCC |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6CW4B2B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110763836 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.022 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
