Schneider Electric XB6CF3B1B Harmony XB6 Illuminated Green Square Flush 16 mm Latching 1NO Push Button

% $-29.45

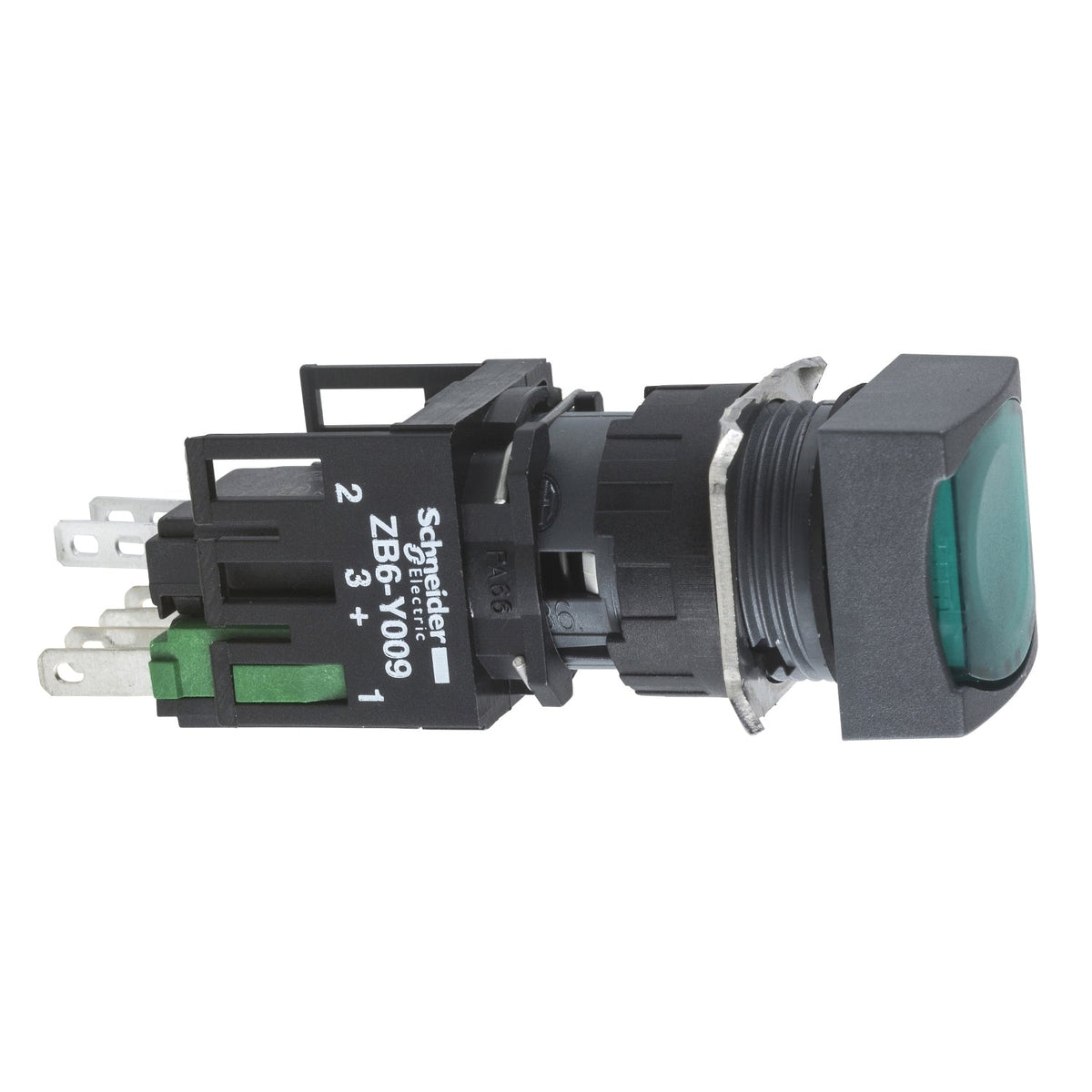

Schneider Electric XB6CF3B1B Harmony XB6 illuminated push button green square flush Push Button
Schneider Electric XB6CF3B1B Harmony XB6 illuminated push button green square flush Push Button

Schneider Electric XB6CF3B1B Harmony XB6 Illuminated Green Square Flush 16 mm Latching 1NO Push Button

Brand: Schneider Electric
Reference No: XB6CF3B1B
Catalog No: XB6CF3B1B
Series: Harmony XB6
Tariff Code (HS): 853650
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$29.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6CF3B1B is a Harmony XB6 complete illuminated push button with a green flush square head, 16 mm plastic bezel, latching operator, and 1NO slow-break contact, supplied at 12...24 V AC/DC. The square head sets it apart visually from round-head XB6A buttons on the same panel, mounting into the same 16 mm cut-out.

Technical Specifications

Reference XB6CF3B1B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110763935
Product or Component Type Complete illuminated push-button
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Square
Type of Operator Latching
Operator Profile Green flush, unmarked
Contacts Type and Composition 1 NO, slow-break
Light Source Integral LED
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.022 kg

Certifications & Standards

  • CSA
  • GOST
  • UL
  • CCC
  • JIS C 852
  • EN/IEC 60947-1
  • CSA C22.2 No 14
  • UL 508
  • EN/IEC 60947-5-5
  • EN/IEC 60947-5-1
  • JIS C 4520

Selection Notes

The square head is a shape-coded alternative to the round XB6AF3B1B for the same electrical function, letting a panel builder distinguish button groups by silhouette as well as colour. Green follows IEC 60073 colour-coding for start/on commands. The latching operator keeps the button pressed-in until manually released, suiting a maintained mode-select command rather than a momentary pulse.

Technical Details

Short Description
Schneider Electric XB6CF3B1B Harmony XB6 illuminated push button, green square flush, 16 mm, latching, 1NO.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6CF3B1B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
