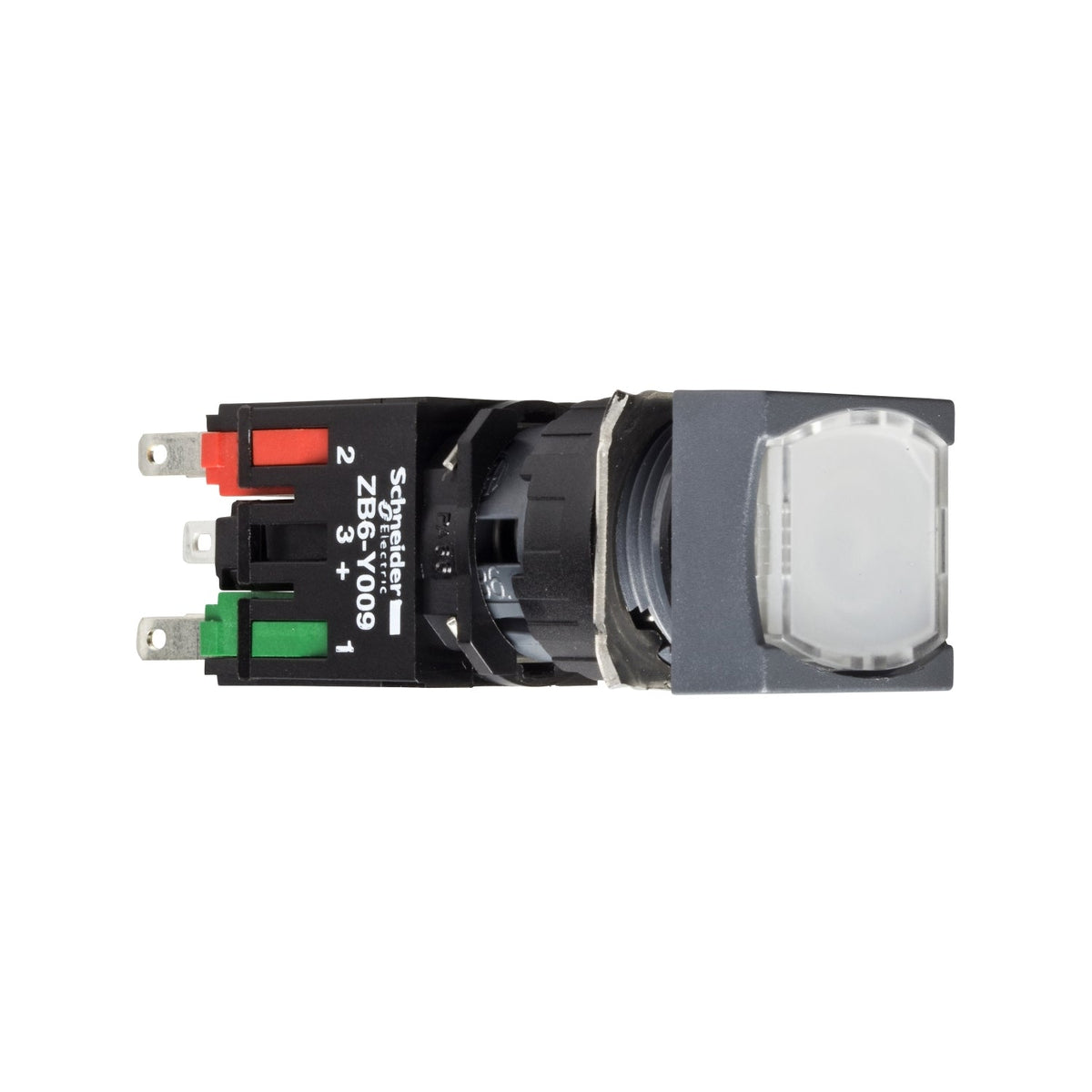

Harmony XB6Schneider Electric XB6CF1B5B Harmony XB6 Illuminated White Square Flush 16 mm Latching 1NO+1NC Push Button
Schneider Electric XB6CF1B5B Harmony XB6 illuminated push button, white square flush, 16 mm, latching, 1NO+1NC.
Description
About the XB6
About the XB6
The Schneider Electric XB6CF1B5B is a Harmony XB6 complete illuminated push button with a white flush square head, 16 mm plastic bezel, latching operator, and 1NO+1NC slow-break contacts, supplied at 12...24 V AC/DC. The square head sets it apart visually from round-head XB6A buttons on the same panel, mounting into the same 16 mm cut-out.
Certifications & Standards
- GOST
- CCC
- CSA
- UL
- EN/IEC 60947-5-5
- EN/IEC 60947-5-1
- JIS C 4520
- UL 508
- CSA C22.2 No 14
- EN/IEC 60947-1
- JIS C 852
Selection Notes
The square head is a shape-coded alternative to the round XB6AF1B5B for the same electrical function, letting a panel builder distinguish button groups by silhouette as well as colour. The latching operator keeps the button pressed-in until manually released, suiting a maintained command rather than a momentary start pulse. The 1NO+1NC contact pair lets one device drive a start confirmation and an interlock signal from a single actuation.
Specification
Full specification
Main 15
| Range of Product | Harmony XB6 |
|---|---|
| Product or Component Type | Complete illuminated push-button |
| Device short name | XB6 |
| Bezel material | Plastic |
| Mounting diameter | 0.6 in (16 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Square |
| Type of operator | latching |
| Operator profile | White flush, unmarked |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Faston connectors 2.8 x 0.5 mm |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 12...24 V AC/DC |
Complementary 20
| Height | 0.7 in (18 mm) |
|---|---|
| Width | 0.7 in (18 mm) |
| Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| Net Weight | 0.055 lb(US) (0.025 kg) |
| Operating position | Any position |
| Positive opening | With EN/IEC 60947-5-1 appendix K |
| Operating travel | 0.04 in (1 mm) NO changing electrical state), 0.08 in (2 mm) NC changing electrical state), 0.1 in (3.5 mm) total travel) |
| Operating force | 3.5 N NO changing electrical state, 4.5 N NC changing electrical state |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 6…30 V AC/DC |
| Current Consumption | 15 mA |
| Surge withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
Environment 13
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 IEC 60529 |
| NEMA degree of protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Standards | EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14, EN/IEC 60947-1, JIS C 852 |
| Product Certifications | GOST, CCC, CSA, UL |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB6CF1B5B |
|---|---|
| Type designation | XB6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110763904 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.025 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
