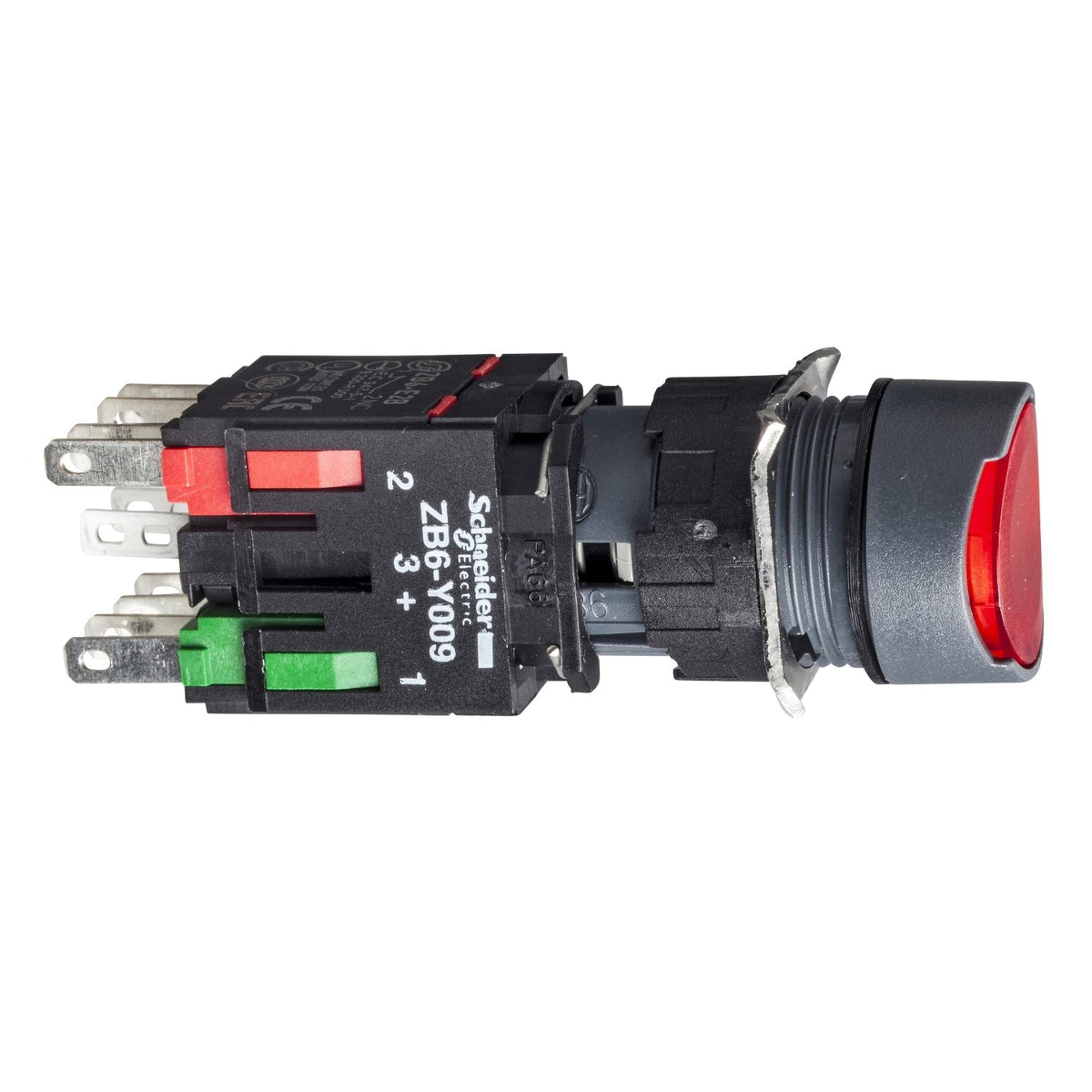

Schneider Electric XB6AW4B2B Harmony XB6 Illuminated Push Button Red Flush 16 mm Spring Return 1NC Push Button

% $-25.47
Schneider Electric XB6AW4B2B Harmony XB6 illuminated push button red flush 16 mm Push Button
Schneider Electric XB6AW4B2B Harmony XB6 illuminated push button red flush 16 mm Push Button

Schneider Electric XB6AW4B2B Harmony XB6 Illuminated Push Button Red Flush 16 mm Spring Return 1NC Push Button

Brand: Schneider Electric
Reference No: XB6AW4B2B
Catalog No: XB6AW4B2B
Series: Harmony XB6
Tariff Code (HS): 853650
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6AW4B2B is a Harmony XB6 complete illuminated push button with a red flush round head, 16 mm plastic bezel, spring-return operator, and 1NC slow-break contact, supplied at 12...24 V AC/DC. It mounts into a 16 mm cut-out, suiting compact panels and small machines where space is limited.

Technical Specifications

Reference XB6AW4B2B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110763829
Product or Component Type Complete illuminated push-button
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Round
Type of Operator Spring return
Operator Profile Red flush, unmarked
Contacts Type and Composition 1 NC, slow-break
Light Source Integral LED
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.022 kg

Certifications & Standards

  • GOST
  • CSA
  • UL
  • CCC
  • CSA C22.2 No 14
  • JIS C 852
  • IEC 60947-5-1
  • JIS C 4520
  • IEC 60947-5-5
  • IEC 60947-1

Selection Notes

The 1NC contact opens on actuation, so this button suits a stop or interlock-break command rather than a start signal; the 1NO XB6AW1B1B and XB6AW3B1B variants are for start-type commands instead. Red follows IEC 60073 colour-coding for stop or fault-related commands. Running on 12...24 V AC/DC with only 15 mA draw, the integral LED shares the same low-voltage control supply as the contact, with no separate lamp transformer needed.

Technical Details

Short Description
Schneider Electric XB6AW4B2B Harmony XB6 illuminated push button, red flush, 16 mm, spring return, 1NC, 12-24V.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6AW4B2B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
