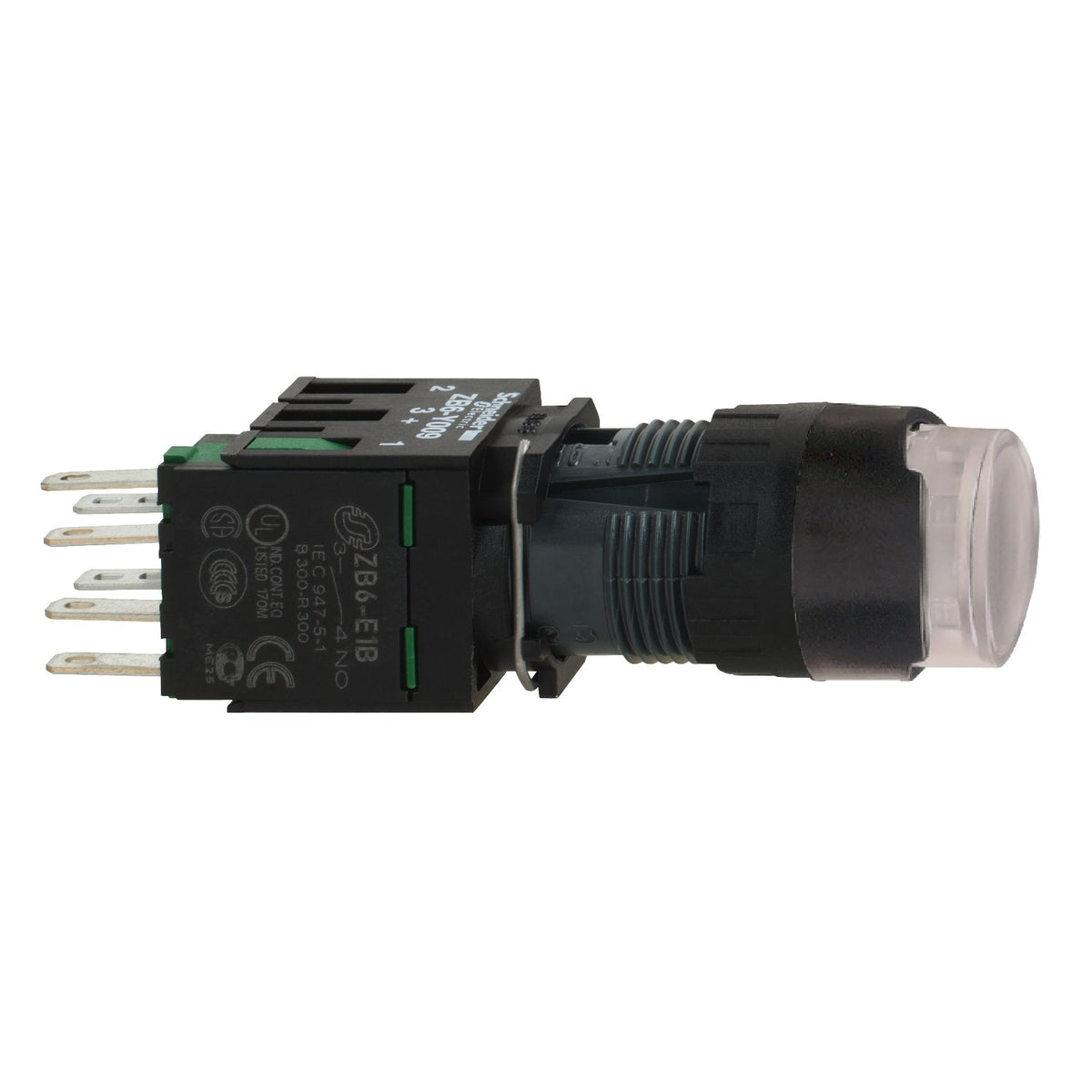

Schneider Electric XB6AW1B1B Harmony XB6 Illuminated White Flush 16 mm Spring Return 1NO Push Button

% $-25.47
Schneider Electric XB6AW1B1B Harmony XB6 illuminated push button white flush 16 mm Push Button
Schneider Electric XB6AW1B1B Harmony XB6 illuminated push button white flush 16 mm Push Button

Schneider Electric XB6AW1B1B Harmony XB6 Illuminated White Flush 16 mm Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB6AW1B1B
Catalog No: XB6AW1B1B
Series: Harmony XB6
Tariff Code (HS): 853650
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6AW1B1B is a Harmony XB6 complete illuminated push button with a white flush round head, 16 mm plastic bezel, spring-return operator, and 1NO slow-break contact, supplied at 12...24 V AC/DC. It mounts into a 16 mm cut-out, suiting compact panels and small machines where space is limited.

Technical Specifications

Reference XB6AW1B1B
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110763706
Product or Component Type Complete illuminated push-button
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Round
Type of Operator Spring return
Operator Profile White flush, unmarked
Contacts Type and Composition 1 NO, slow-break
Light Source Integral LED
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ie] Rated Operational Current 3 A at 120 V AC-15; 1.5 A at 240 V AC-15
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.022 kg

Certifications & Standards

  • GOST
  • CSA
  • UL
  • CCC
  • JIS C 4520
  • IEC 60947-1
  • IEC 60947-5-1
  • JIS C 852
  • IEC 60947-5-5
  • CSA C22.2 No 14

Selection Notes

The spring-return operator pulses the contact only while the button is held, so it suits a momentary start or jog command rather than the maintained state of the latching XB6AF1B5B. The single-NO contact keeps wiring simple where one start confirmation signal is enough. Running on 12...24 V AC/DC with only 15 mA draw, the integral LED shares the same low-voltage control supply as the contact, so no separate lamp transformer is needed.

Technical Details

Short Description
Schneider Electric XB6AW1B1B Harmony XB6 illuminated push button, white flush, 16 mm, spring return, 1NO, 12-24V.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6AW1B1B
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853650
