- Part number
- XB5FW35M5
- Model no
- XB5F
- UL
- CSA

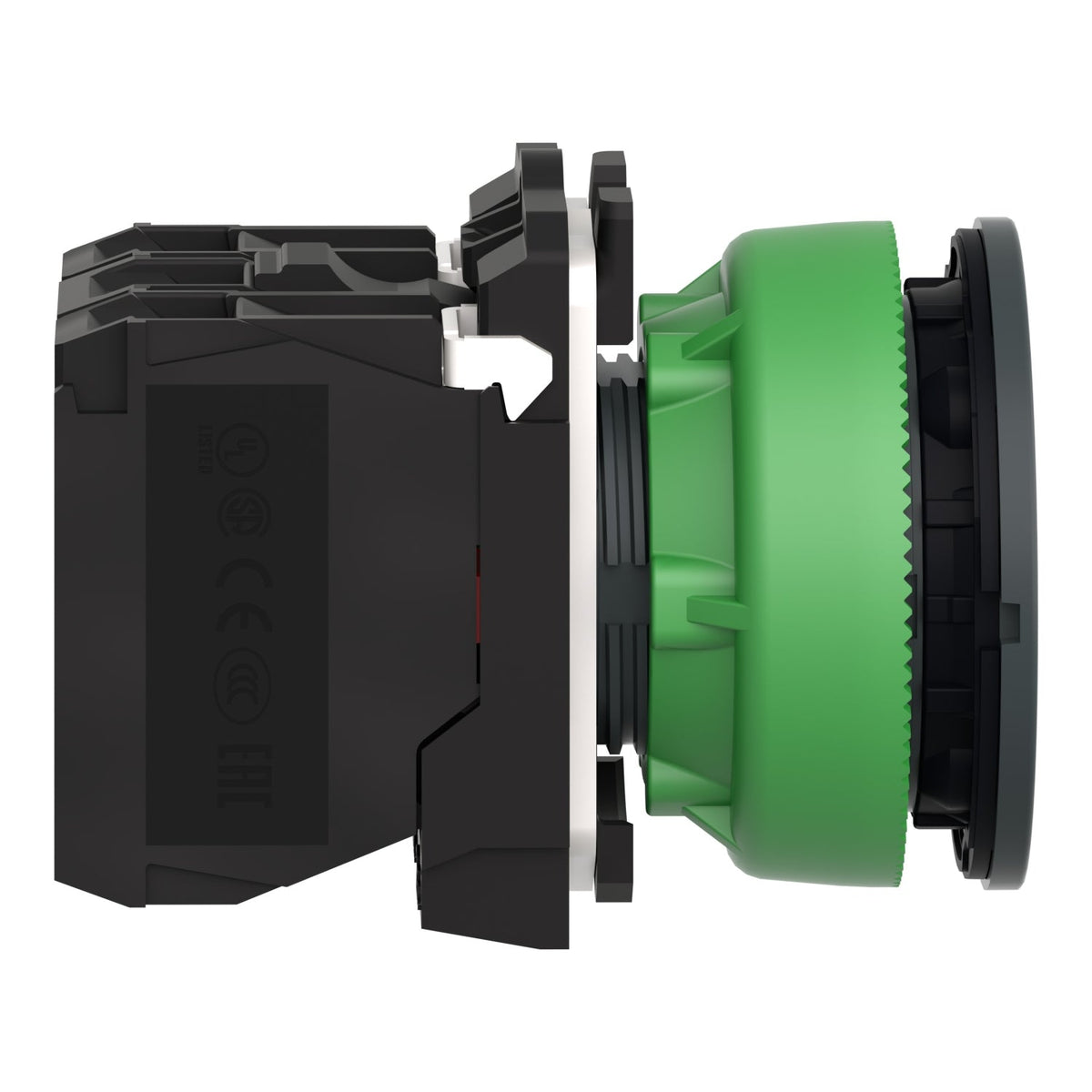

Harmony XB5Schneider Electric XB5FW35M5 Harmony XB5 Illuminated Orange 30 mm Spring Return 1NO+1NC 24V DC/AC Push Button
Schneider Electric XB5FW35M5, Harmony XB5 orange illuminated push button, 1NO+1NC, 230...240 V AC.
Description
About the XB5F
About the XB5F
The Schneider Electric XB5FW35M5 is a orange illuminated push button from the Harmony XB5 range, flush-mounted in a 30.5 mm panel cutout with a spring-return action and an integral universal LED on a 230...240 V AC supply. It switches a 1 NO + 1 NC contact block rated 3 A at 240 V AC-15 through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.
Certifications & Standards
- UL Listed
- CSA
- IEC 60947-1
- UL 508
- JIS C8201-5-1
- IEC 60947-5-1
- ISO 22196:2011
- ISO 21702
Selection Notes
The XB5FW35M5 pairs a momentary 1 NO command contact with a 1 NC monitoring contact in the same spring-return body, so one button can drive a start circuit and feed an interlock or indication loop simultaneously. The integral LED confirms the command was registered without a separate pilot light, and the 230...240 V AC rating should match the control transformer already feeding the panel.
Specification
Full specification
Main 19
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB5F |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Built-in-flush |
| Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Orange flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| Cap/operator or lens colour | Orange |
Complementary 26
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.4 in (36.6 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (21-22)NC, (13-14)NO |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Device presentation | Complete product |
Environment 15
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1, ISO 22196:2011, ISO 21702 |
| Product Certifications | UL Listed, CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 74 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5FW35M5 |
|---|---|
| Type designation | XB5F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481361110 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.06 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5FW35M5
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- IEC 60947-1
- UL 508
- JIS C8201-5-1
- IEC 60947-5-4
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-1
- ISO 22196:2011
- ISO 21702
Quick answers
Questions about the XB5F
Which supply voltage is XB5F rated for?
The rated operational voltage of XB5F is 230–240 V AC.
What is the HS code of XB5F for customs?
The tariff (HS) code on file for XB5F is 853650.
What is the EAN of XB5F?
The EAN (GTIN) of XB5F is 3606481361110.
Where does XB5F ship from, and how fast?
XB5F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
