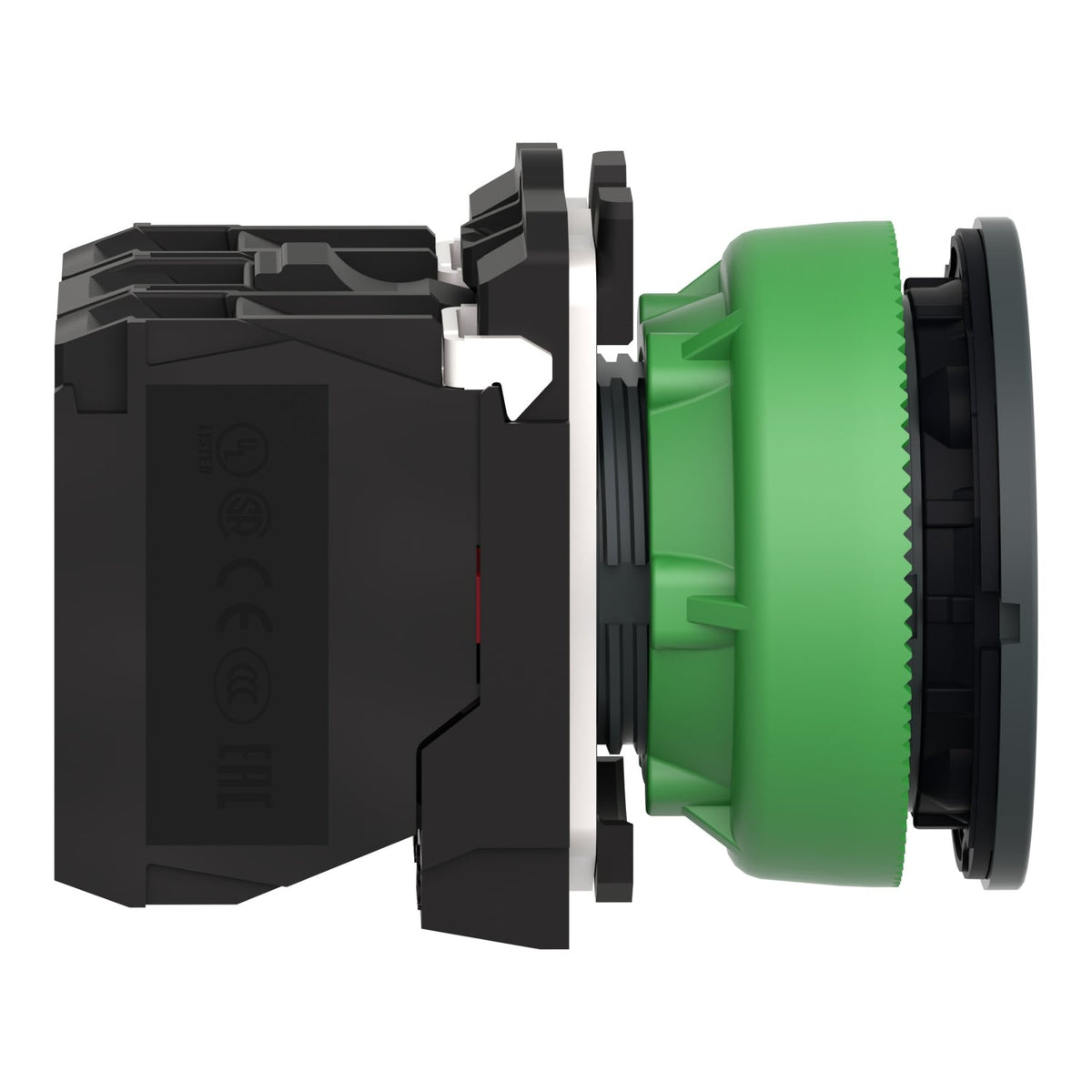

Schneider Electric XB5FW34M5 Harmony XB5 Illuminated Red 30 mm Spring Return 1NO+1NC 24V DC/AC Push Button

% $-27.40
Schneider Electric XB5FW34M5 Harmony XB5 Illuminated Red Push Button – 1NO+1NC 230...240 V AC
Schneider Electric XB5FW34M5 Harmony XB5 Illuminated Red Push Button – 1NO+1NC 230...240 V AC

Schneider Electric XB5FW34M5 Harmony XB5 Illuminated Red 30 mm Spring Return 1NO+1NC 24V DC/AC Push Button

Brand: Schneider Electric
Reference No: XB5FW34M5
Catalog No: XB5FW34M5
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 230...240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$27.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5FW34M5 is a red illuminated push button from the Harmony XB5 range, flush-mounted in a 30.5 mm panel cutout with a spring-return action and an integral universal LED on a 230...240 V AC supply. It switches a 1 NO + 1 NC contact block rated 3 A at 240 V AC-15 through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.

Technical Specifications

SKU / Reference XB5FW34M5
Brand Schneider Electric
Range of Product Harmony XB5
Product Type Illuminated push-button
Device Short Name XB5F
Bezel Material Dark grey plastic
Fixing Collar Material Plastic
Head Type Built-in-flush
Mounting Diameter 30.5 mm
Type of Operator Spring return
Cap/Lens Colour Red
Contacts Type and Composition 1 NO + 1 NC
Contact Operation Slow-break
Light Source Universal LED (integral)
[Us] Rated Supply Voltage 230...240 V AC
Supply Voltage Limits 195…264 V AC
Current Consumption 14 mA
[Ith] Conventional Free Air Thermal Current 10 A
[Ie] Rated Operational Current 3 A 240 V AC-15 | 0.1 A 600 V DC-13
Dimensions (H x W x D) 42 mm x 36.6 mm x 55 mm
Net Weight 52 g
IP Degree of Protection IP66 | IP67 | IP69 | IP69K
Enclosure Type UL type 4X/13

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1
  • ISO 22196:2011
  • ISO 21702

Selection Notes

The XB5FW34M5 pairs a momentary 1 NO command contact with a 1 NC monitoring contact in the same spring-return body, so one button can drive a start circuit and feed an interlock or indication loop simultaneously. The integral LED confirms the command was registered without a separate pilot light, and the 230...240 V AC rating should match the control transformer already feeding the panel.

Technical Details

Short Description
Schneider Electric XB5FW34M5, Harmony XB5 red illuminated push button, 1NO+1NC, 230...240 V AC.
Rated Voltage (VAC)
230...240 V AC
Mounting Type
Panel flush mount, 30.5 mm cutout
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XB5FW34M5
Delivery Date (Days)
30 days
Model Number
XB5F
Tariff Code
853650
