- Part number
- XB5FK135M5
- Model no
- XB5F
Description
About the XB5F
About the XB5F

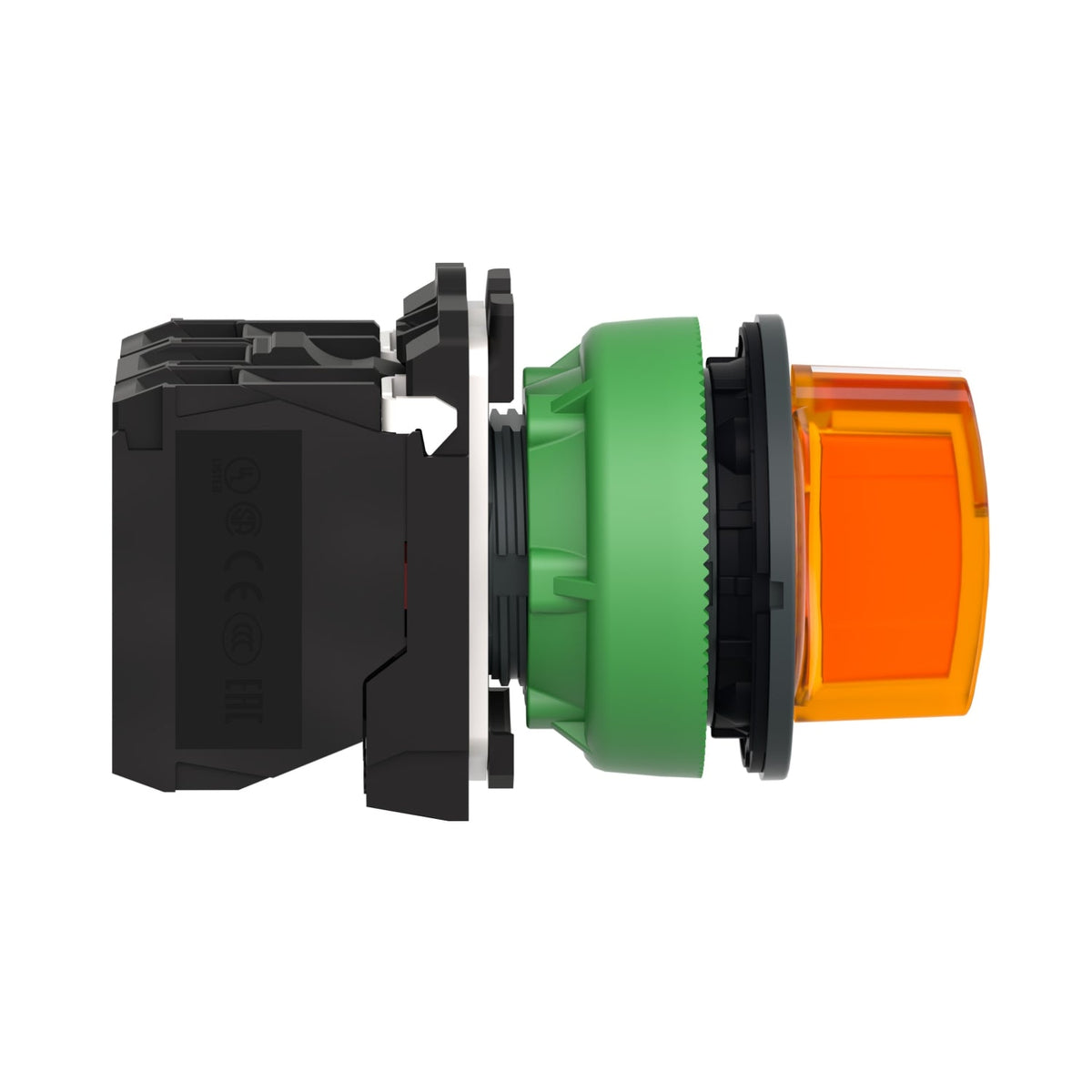

The Schneider Electric XB5FK135M5 is a 3-position stay-put illuminated selector switch from the Harmony XB5 range, with a orange handle lit by an integral universal LED on a 230...240 V AC supply. Flush-mounted in a 30.5 mm cutout, it switches a 1 NO + 1 NC contact block rated 3 A at 240 V AC-15 through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.
Certifications & Standards
- UL Listed
- CSA
- IEC 60947-1
- UL 508
- JIS C8201-5-1
- IEC 60947-5-1
Selection Notes
The XB5FK135M5's integral LED gives a positive lit confirmation of the selected mode at a glance, which a non-illuminated handle cannot — useful on panels where the operator needs to see at distance which of the 3 stay-put positions is active. Match the 230...240 V AC supply rating to the control transformer already in the cabinet rather than adding a separate supply for this one indicator.
Specification
Full specification
Main 16
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Illuminated selector switch |
| Device short name | XB5F |
| Bezel material | Dark grey plastic |
| Head type | Built-in-flush |
| Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Orange standard handle, unmarked |
| Operator position information | 3 positions +/- 45° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
Complementary 22
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.4 in (36.6 mm) |
| Depth | 2.8 in (71 mm) |
| Terminals description ISO n°1 | (21-22)NC, (13-14)NO |
| Net Weight | 0.126 lb(US) (0.057 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With NC contact IEC 60947-5-1 appendix K |
| Mechanical durability | 500000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Light source | Universal LED |
| Supply voltage limits | 195…264 V AC |
| Device presentation | Complete product |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Product Certifications | UL Listed, CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5FK135M5 |
|---|---|
| Type designation | XB5F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481360823 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.057 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5FK135M5
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- IEC 60947-1
- UL 508
- JIS C8201-5-1
- IEC 60947-5-4
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-1
Quick answers
Questions about the XB5F
Which supply voltage is XB5F rated for?
The rated operational voltage of XB5F is 230–240 V AC.
What is the HS code of XB5F for customs?
The tariff (HS) code on file for XB5F is 853650.
What is the EAN of XB5F?
The EAN (GTIN) of XB5F is 3606481360823.
Where does XB5F ship from, and how fast?
XB5F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
