Part number
XB5FK133M5
Model no
XB5F
$36.37 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5

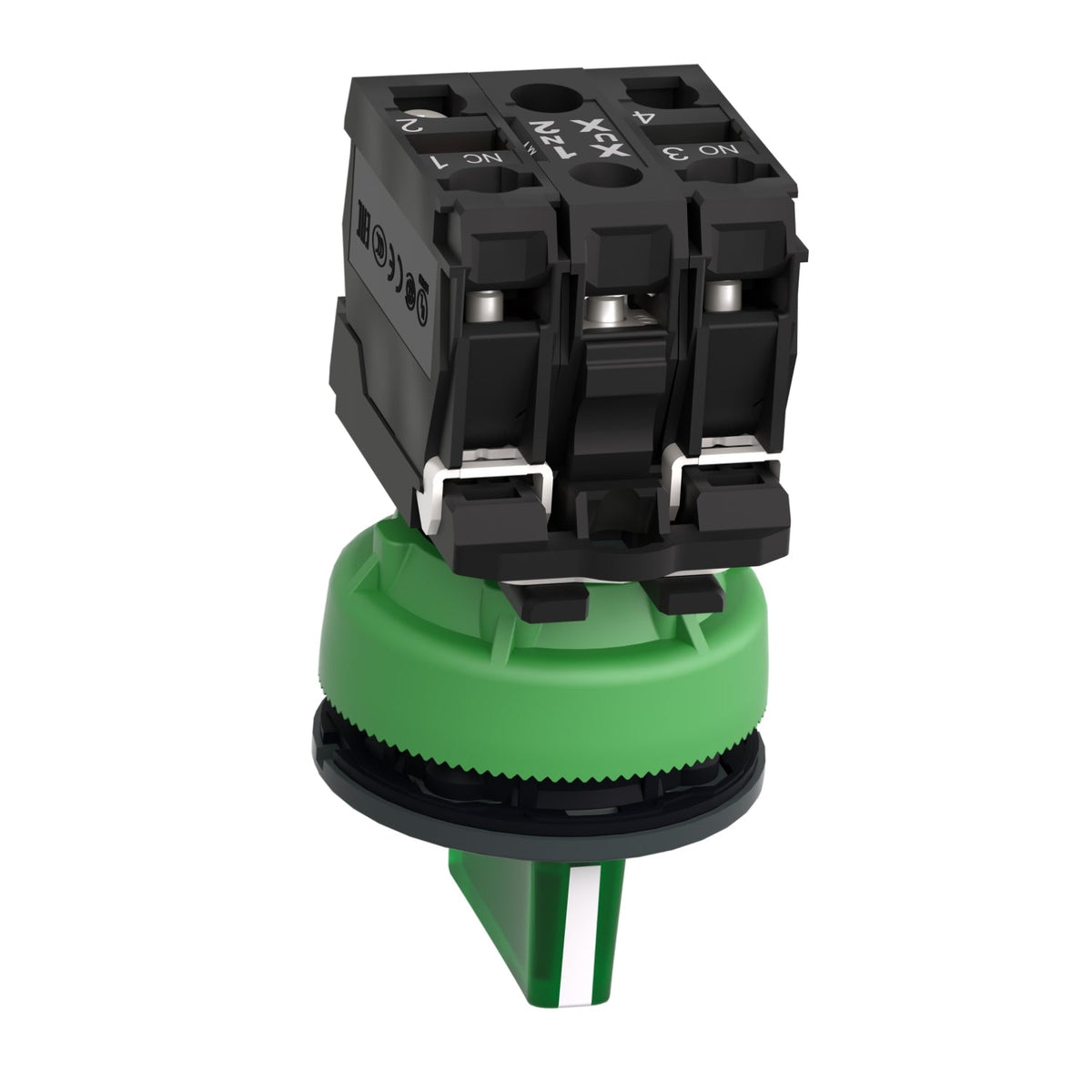

Schneider Electric XB5FK133M5 Harmony XB5 Illuminated Green 3-Position 1NO+1NC 24V DC/AC Selector Switch

Schneider Electric XB5FK133M5, Harmony XB5 illuminated 3-position selector switch, Green, 230...240 V AC.

Rated operational voltage
230–240 V AC
EAN
3606481360786
Description

About the XB5F

The Schneider Electric XB5FK133M5 is a 3-position stay-put illuminated selector switch from the Harmony XB5 range, with a green handle lit by an integral universal LED on a 230...240 V AC supply. Flush-mounted in a 30.5 mm cutout, it switches a 1 NO + 1 NC contact block rated 3 A at 240 V AC-15 through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1

Selection Notes

The XB5FK133M5's integral LED gives a positive lit confirmation of the selected mode at a glance, which a non-illuminated handle cannot — useful on panels where the operator needs to see at distance which of the 3 stay-put positions is active. Match the 230...240 V AC supply rating to the control transformer already in the cabinet rather than adding a separate supply for this one indicator.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 16

Range of Product Harmony XB5
Product or Component Type Illuminated selector switch
Device short name XB5F
Bezel material Dark grey plastic
Head type Built-in-flush
Mounting diameter 1.2 in (30.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator stay put
Operator profile Green standard handle, unmarked
Operator position information 3 positions +/- 45°
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Bulb base Integral LED
[Us] rated supply voltage 230...240 V AC 50/60 Hz

Complementary 21

Height 1.7 in (42 mm)
Width 1.4 in (36.6 mm)
Depth 2.8 in (71 mm)
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening With NC contact IEC 60947-5-1 appendix K
Mechanical durability 500000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Light source Universal LED
Supply voltage limits 195…264 V AC
Device presentation Complete product

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Electrical shock protection class Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Product Certifications UL Listed, CSA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5FK133M5
Type designation XB5F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481360786

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.064 kg
Ships from Türkiye
Dispatch —
Stock On request
