Schneider Electric XB5FK123M5 Harmony XB5 Illuminated Green 2-Position 1NO+1NC 24V DC/AC Selector Switch

% $-30.88

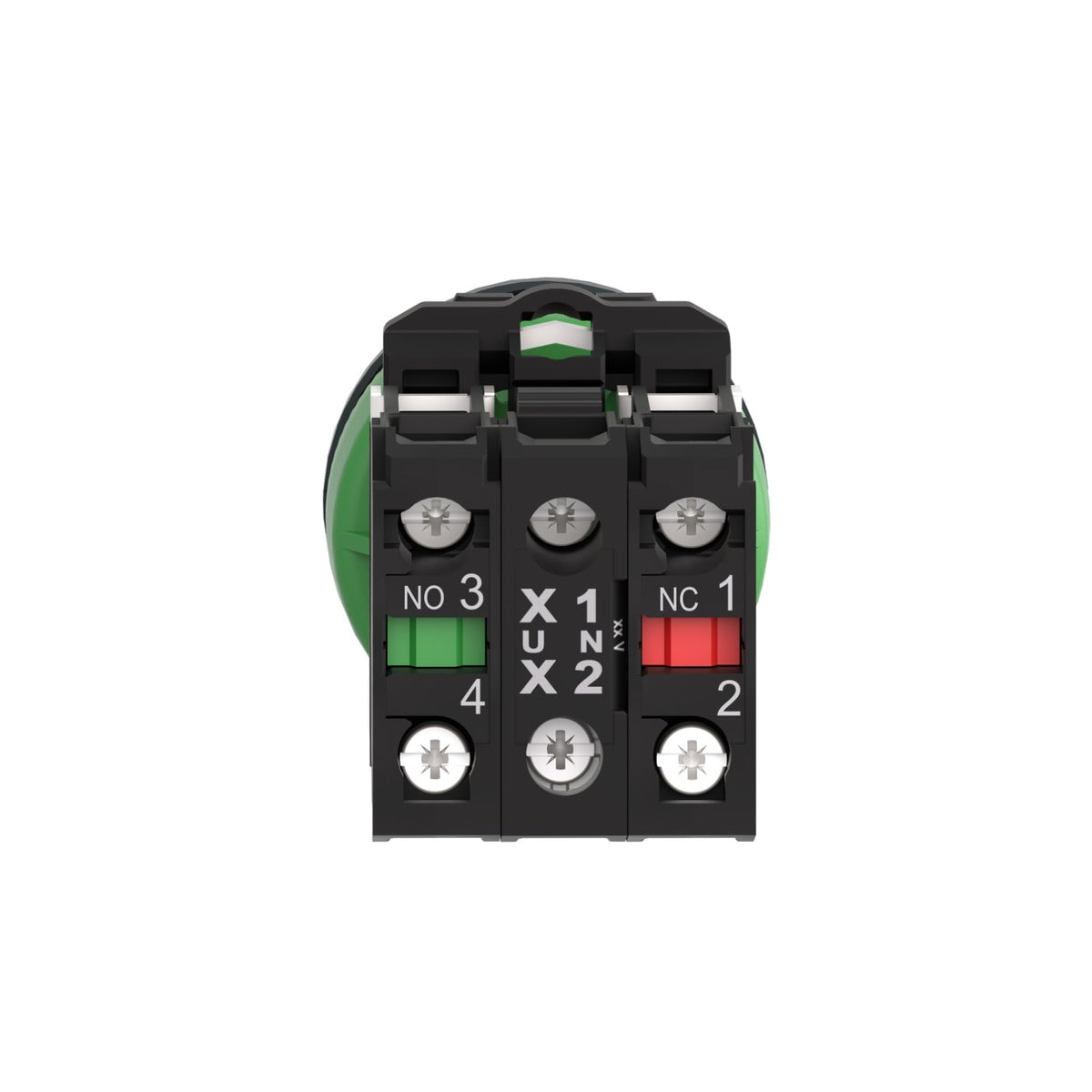

Schneider Electric XB5FK123M5 Harmony XB5 Illuminated Green Selector Switch – 230...240 V AC
Schneider Electric XB5FK123M5 Harmony XB5 Illuminated Green Selector Switch – 230...240 V AC

Schneider Electric XB5FK123M5 Harmony XB5 Illuminated Green 2-Position 1NO+1NC 24V DC/AC Selector Switch

Brand: Schneider Electric
Reference No: XB5FK123M5
Catalog No: XB5FK123M5
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 230...240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$30.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5FK123M5 is a 2-position stay-put illuminated selector switch from the Harmony XB5 range, with a green handle lit by an integral universal LED on a 230...240 V AC supply. Flush-mounted in a 30.5 mm cutout, it switches a 1 NO + 1 NC contact block rated 3 A at 240 V AC-15 through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.

Technical Specifications

SKU / Reference XB5FK123M5
Brand Schneider Electric
Range of Product Harmony XB5
Product Type Illuminated selector switch
Device Short Name XB5F
Bezel Material Dark grey plastic
Head Type Built-in-flush
Mounting Diameter 30.5 mm
Operator Profile Green standard handle, stay put
Operator Position Information 2 positions 90°
Contacts Type and Composition 1 NO + 1 NC
Contact Operation Slow-break
Light Source Universal LED (integral)
[Us] Rated Supply Voltage 230...240 V AC
Supply Voltage Limits 195…264 V AC
Current Consumption 14 mA
[Ith] Conventional Free Air Thermal Current 10 A
[Ie] Rated Operational Current 3 A 240 V AC-15 | 0.1 A 600 V DC-13
Dimensions (H x W x D) 42 mm x 36.6 mm x 71 mm
IP Degree of Protection IP66 | IP67 | IP69 | IP69K
Enclosure Type UL type 4X/13
Net Weight 56 g

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1

Selection Notes

The XB5FK123M5's integral LED gives a positive lit confirmation of the selected mode at a glance, which a non-illuminated handle cannot — useful on panels where the operator needs to see at distance which of the 2 stay-put positions is active. Match the 230...240 V AC supply rating to the control transformer already in the cabinet rather than adding a separate supply for this one indicator.

Technical Details

Short Description
Schneider Electric XB5FK123M5, Harmony XB5 illuminated 2-position selector switch, Green, 230...240 V AC.
Rated Voltage (VAC)
230...240 V AC
Mounting Type
Panel flush mount, 30.5 mm cutout
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XB5FK123M5
Delivery Date (Days)
30 days
Model Number
XB5F
Tariff Code
853650
