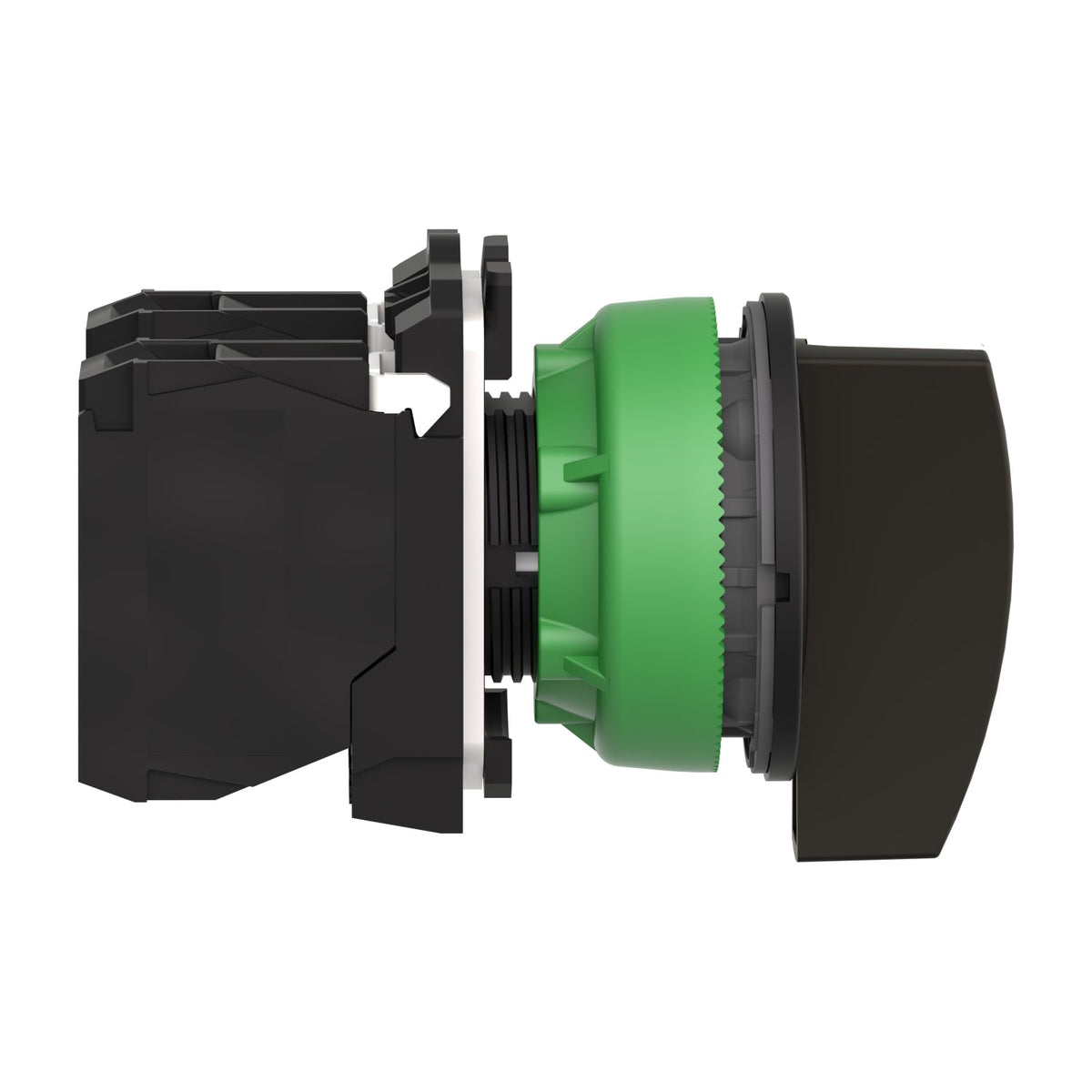

Schneider Electric XB5FJ53 Harmony XB5 Long Handle 3-Position Selector Switch – 2 NO

Schneider Electric XB5FJ53 Harmony XB5 Long Handle 3-Position Spring-Return-to-Center 2NO Selector Switch

Name: Schneider Electric XB5FJ53 Harmony XB5 Long Handle 3-Position Spring-Return-to-Center 2NO Selector Switch
Brand: Schneider Electric
SKU: XB5FJ53
Price: 19.45 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XB5FJ53

Catalog No: XB5FJ53

Series: Harmony XB5

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$19.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric XB5FJ53 is a 3-position spring-return-to-center selector switch from the Harmony XB5 plastic range, flush-mounted in a 30.5 mm panel cutout with a black long handle. It carries a 2 NO contact block rated 3 A at 240 V AC-15 and 0.1 A at 600 V DC-13, wired through screw-clamp terminals, and is sealed to IP66/IP67/IP69/IP69K for washdown duty.

Technical Specifications

SKU / Reference	XB5FJ53
Brand	Schneider Electric
Range of Product	Harmony XB5
Product Type	Selector switch
Device Short Name	XB5F
Bezel Material	Dark grey plastic
Head Type	Built-in-flush
Mounting Diameter	30.5 mm
Type of Operator	To centre spring return
Operator Profile	Black long handle
Operator Position Information	3 positions ± 45°
Contacts Type and Composition	2 NO
Contact Operation	Slow-break
Connections - Terminals	Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end
[Ith] Conventional Free Air Thermal Current	10 A
[Ie] Rated Operational Current	3 A 240 V AC-15 \| 0.1 A 600 V DC-13
[Ui] Rated Insulation Voltage	600 V
Dimensions (H x W x D)	42 mm x 36.6 mm x 73 mm
IP Degree of Protection	IP66 \| IP67 \| IP69 \| IP69K
Enclosure Type	UL type 4X/13
Ambient Operating Temperature	-40…+70 °C
Net Weight	43 g

Certifications & Standards

UL Listed
CSA
IEC 60947-1
UL 508
JIS C8201-5-1
IEC 60947-5-1

Selection Notes

The XB5FJ53 springs back to its center position as soon as it is released, which suits momentary jog or inch commands that must not stay latched — choose the stay-put variant instead where the selected mode needs to hold without the operator maintaining pressure.

Technical Details

Short Description

Schneider Electric XB5FJ53, Harmony XB5 3-position spring-return-to-center selector switch, 2 NO, IP66/IP69K.

Mounting Type

Panel flush mount, 30.5 mm cutout

Protection Type

IP66/IP67/IP69/IP69K

Catalog No

XB5FJ53

Delivery Date (Days)

30 days

Model Number

XB5F

Tariff Code

853650
