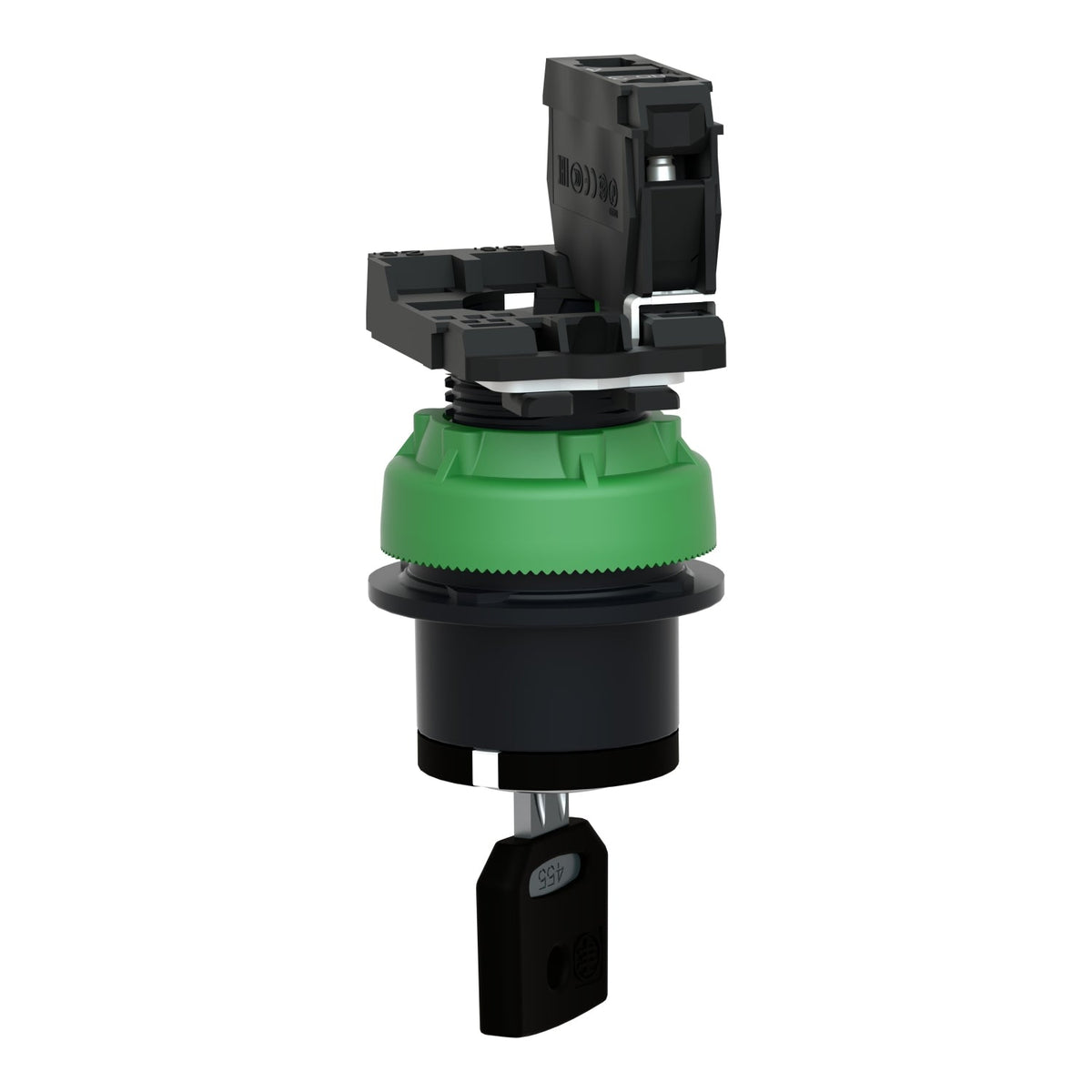

Schneider Electric XB5FG21 Harmony XB5 Key Switch Key 455 2-Position Stay-Put 1NO Selector Switch

% $-29.20
Schneider Electric XB5FG21 Harmony XB5 Key Switch Key 455 2-Position Selector Switch – 1 NO
Schneider Electric XB5FG21 Harmony XB5 Key Switch Key 455 2-Position Selector Switch – 1 NO

Schneider Electric XB5FG21 Harmony XB5 Key Switch Key 455 2-Position Stay-Put 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB5FG21
Catalog No: XB5FG21
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$29.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5FG21 is a 2-position stay-put key-operated selector switch from the Harmony XB5 plastic range, flush-mounted in a 30.5 mm panel cutout and keyed to key number 455. It carries a 1 NO contact block rated 3 A at 240 V AC-15, wired through screw-clamp terminals, and is sealed to IP66/IP67/IP69/IP69K for washdown environments.

Technical Specifications

SKU / Reference XB5FG21
Brand Schneider Electric
Range of Product Harmony XB5
Product Type Selector switch
Device Short Name XB5F
Bezel Material Dark grey plastic
Head Type Built-in-flush
Mounting Diameter 30.5 mm
Type of Operator Stay put
Operator Profile Black key switch
Operator Position Information 2 positions 90°
Type of Keylock Key 455
Key Withdrawal Position Left
Contacts Type and Composition 1 NO
Contact Operation Slow-break
Connections - Terminals Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end
[Ith] Conventional Free Air Thermal Current 10 A
[Ie] Rated Operational Current 3 A 240 V AC-15 | 0.1 A 600 V DC-13
[Ui] Rated Insulation Voltage 600 V
Dimensions (H x W x D) 42 mm x 36.6 mm x 98.5 mm
IP Degree of Protection IP66 | IP67 | IP69 | IP69K
Enclosure Type UL type 4X/13
Ambient Operating Temperature -40…+70 °C
Net Weight 83 g

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1

Selection Notes

The XB5FG21's key-left-withdrawal action on key 455 means the switch can only be left in the position where the key is removable, so it doubles as a physical access lock for the 2-position function it controls — pick this key variant over a plain handle when the mode selection must be restricted to authorized personnel.

Technical Details

Short Description
Schneider Electric XB5FG21, Harmony XB5 2-position stay-put selector switch, 1 NO, IP66/IP69K.
Mounting Type
Panel flush mount, 30.5 mm cutout
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XB5FG21
Delivery Date (Days)
30 days
Model Number
XB5F
Tariff Code
853650
