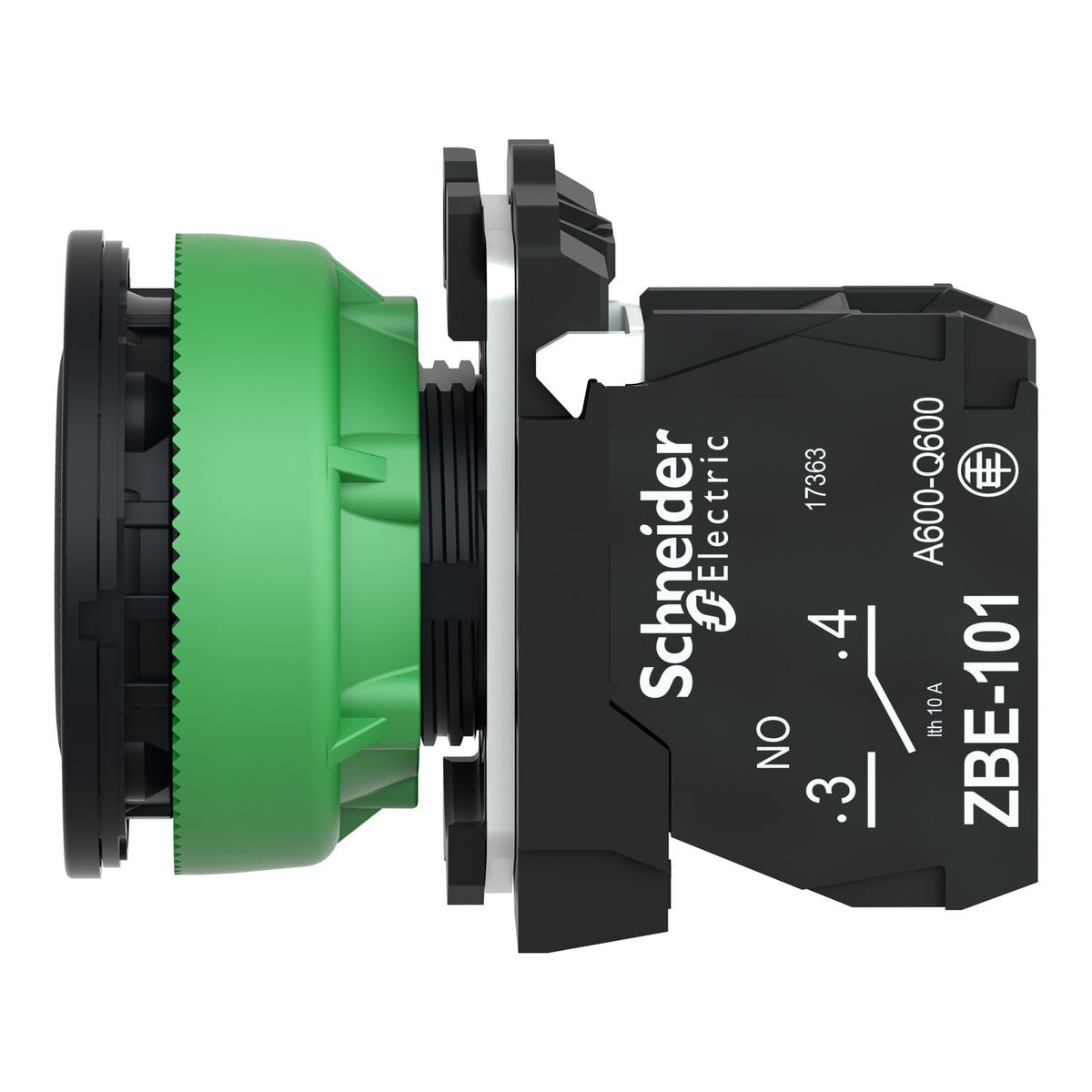

Schneider Electric XB5FA3351 Harmony XB5 Black Flush Marked Down Arrow 30 mm Spring Return 1 NO Push Button

% $-13.74
Schneider Electric XB5FA3351 Harmony XB5 Push Button Black – 30 mm 1 NO
Schneider Electric XB5FA3351 Harmony XB5 Push Button Black – 30 mm 1 NO

Schneider Electric XB5FA3351 Harmony XB5 Black Flush Marked Down Arrow 30 mm Spring Return 1 NO Push Button

Brand: Schneider Electric
Reference No: XB5FA3351
Catalog No: XB5FA3351
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.74

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5FA3351 is a Harmony XB5 flush-mounted push button for 30.5 mm panel cut-outs, with a black cap that is marked 'down arrow' in white. It is a spring-return, 1 NO device with screw-clamp terminals, rated IP66/IP67/IP69/IP69K and built with an antimicrobial surface treatment that resists common bacteria on the plastic bezel and cap.

Technical Specifications

Reference XB5FA3351
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3606481360496
Product or Component Type Push-button
Device short name XB5F
Mounting diameter 30.5 mm
Head type Built-in flush
Operator profile Black flush, 'down arrow' marking in white
Type of operator Spring return
Contacts type and composition 1 NO
Contact operation Slow-break
Connections Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end
Rated insulation voltage [Ui] 600 V
Rated impulse withstand voltage [Uimp] 6 kV
Rated operational current [Ie] 3 A at 240 V AC-15 / 0.1 A at 600 V DC-13
Short-circuit protection 10 A cartridge fuse, type gG
Bezel material Plastic
Height x Width x Depth 42 x 36.6 x 55 mm
Net weight 0.037 kg
Country of origin FR
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK06

Certifications & Standards

  • UL Listed
  • CSA
  • CE
  • CCC
  • EAC
  • ISO 22196:2011

Selection Notes

Pick the black cap when panel colour-coding calls for a general-purpose indication with no colour-coded meaning; the 'down arrow' marking identifies the function directly on the cap, avoiding a separate legend plate. XB5FA3351 uses a 1 NO block, so confirm the contact arrangement against the control circuit before ordering a sibling variant with the opposite configuration.

Technical Details

Short Description
Harmony XB5 flush push button, black, marked 'down arrow' in white, 1 NO, 30 mm, spring return.
Mounting Type
Panel, 30.5 mm cut-out
Protection Type
IP69K
Catalog No
XB5FA3351
Delivery Date (Days)
30 days
Model Number
XB5F
Tariff Code
853650
