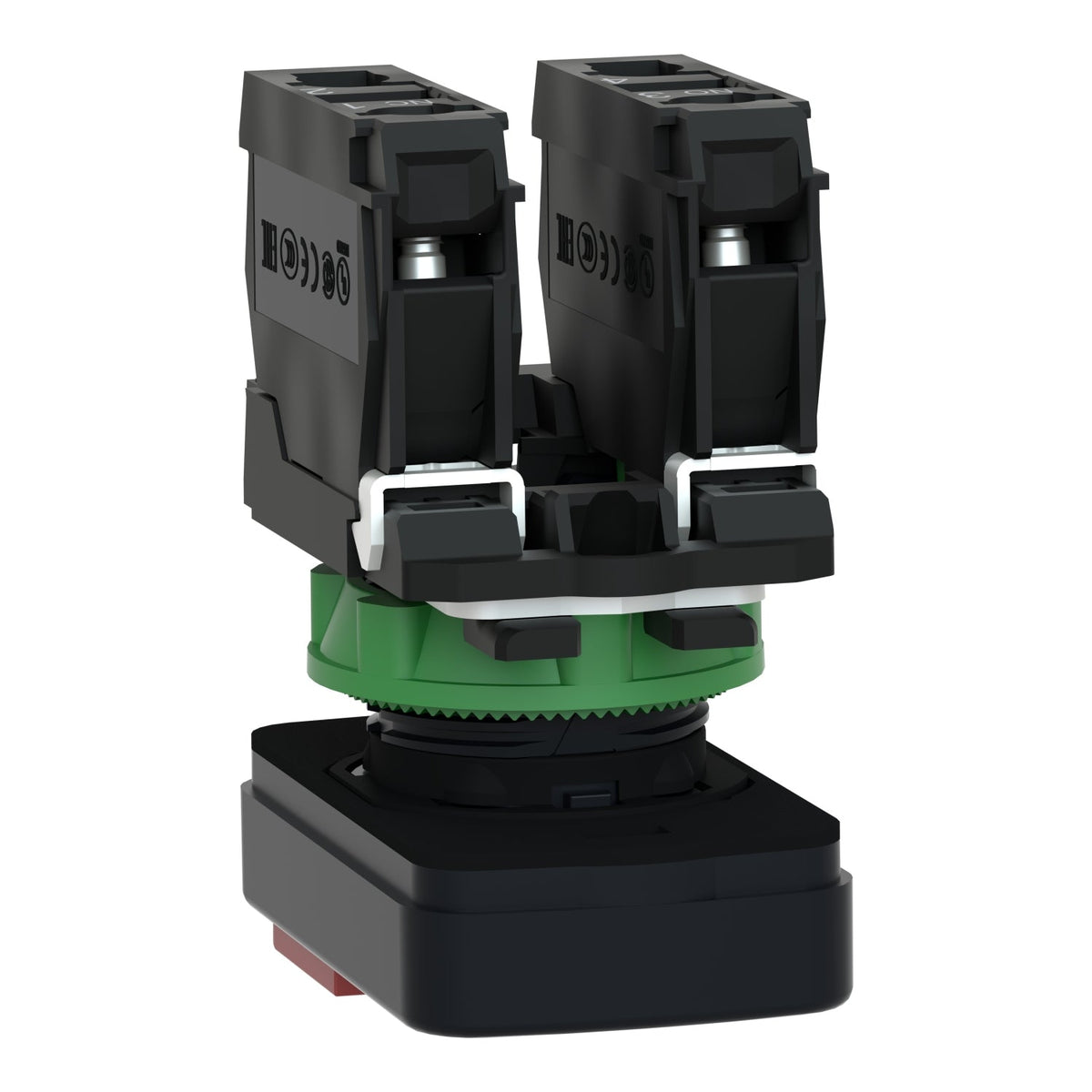

Schneider Electric XB5AW73731M5 Harmony XB5 Double Headed Green I Red O 24V AC/DC Push Button

% $-25.17
Schneider Electric XB5AW73731M5 Harmony XB5 Double Headed Push Button – Green I Red O, 230...240 V AC
Schneider Electric XB5AW73731M5 Harmony XB5 Double Headed Push Button – Green I Red O, 230...240 V AC

Schneider Electric XB5AW73731M5 Harmony XB5 Double Headed Green I Red O 24V AC/DC Push Button

Brand: Schneider Electric
Reference No: XB5AW73731M5
Catalog No: XB5AW73731M5
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 230-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$25.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AW73731M5 is a Harmony XB5 double-headed push button for 22 mm panel cut-outs, combining a green flush 'I' button, a red projecting 'O' button and a central pilot light lit by a protected LED. Supplied at 230...240 V AC through screw-clamp terminals, it is a spring-return, 1 NO + 1 NC device sealed to IP66/IP67/IP69/IP69K.

Technical Specifications

Reference XB5AW73731M5
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389119043564
Product or Component Type Illuminated double-headed push-button
Device short name XB5
Mounting diameter 22.5 mm
Operator profile Green flush 'I' (white) + red projecting 'O' (white)
Type of operator Spring return
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Light source Protected LED (central pilot light)
Rated supply voltage [Us] 230...240 V AC, 50/60 Hz
Rated operational current [Ie] 3 A at 240 V AC-15 / 0.1 A at 600 V DC-13
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 59 mm
Net weight 0.066 kg
Country of origin FR
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • DNV
  • BV

Selection Notes

The green flush 'I' button and red projecting 'O' button give start/stop control from a single 22 mm cut-out, with the central pilot light confirming status without a third hole in the panel. Choose XB5AW73731M5 over separate single-function XB5 buttons when panel space is limited and a start-stop-indicate function needs to live in one mounting position.

Technical Details

Short Description
Harmony XB5 double-headed push button, green I + red O, pilot light, 230...240 V AC, 22 mm.
Rated Voltage (VAC)
230-240 V AC
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AW73731M5
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853650
