Schneider Electric XB5AW36B5 Harmony XB5 Blue Illuminated 22 mm LED 24 V AC/DC 1NO+1NC Push Button

% $-12.91
Schneider Electric XB5AW36B5 Harmony XB5 Illuminated Push Button Blue – LED 24 V AC/DC
Schneider Electric XB5AW36B5 Harmony XB5 Illuminated Push Button Blue – LED 24 V AC/DC

Schneider Electric XB5AW36B5 Harmony XB5 Blue Illuminated 22 mm LED 24 V AC/DC 1NO+1NC Push Button

Brand: Schneider Electric
Reference No: XB5AW36B5
Catalog No: XB5AW36B5
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

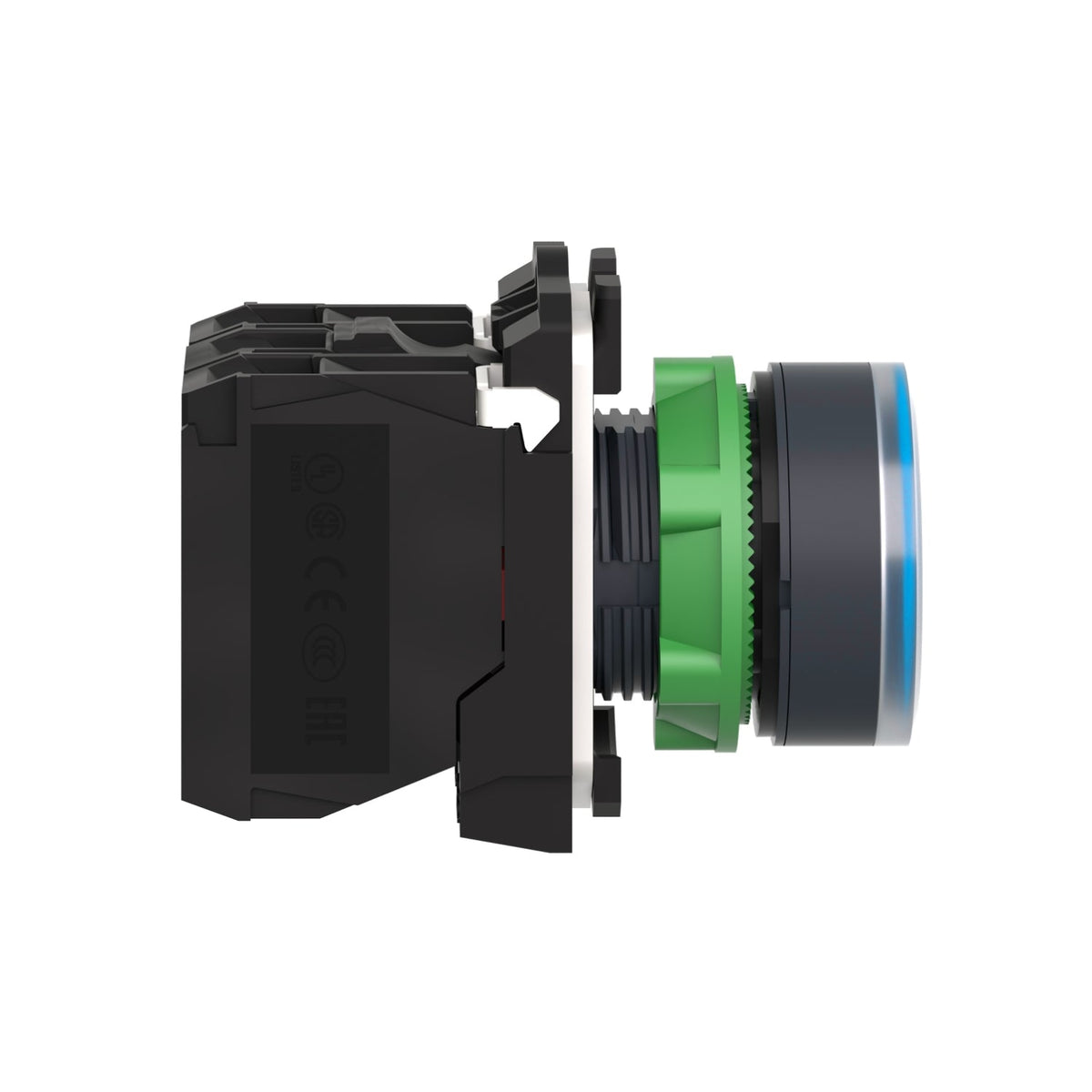

The Schneider Electric XB5AW36B5 is a Harmony XB5 illuminated push button for 22 mm panel cut-outs, with a blue flush unmarked cap lit by an integral LED. It is a spring-return, 1 NO + 1 NC device supplied at 24 V AC/DC through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K, and draws only 18 mA at rated voltage.

Technical Specifications

Reference XB5AW36B5
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110136944
Product or Component Type Illuminated push-button
Device short name XB5
Mounting diameter 22.5 mm
Operator profile Blue flush, unmarked
Type of operator Spring return
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Light source Universal LED (integral)
Rated supply voltage [Us] 24 V AC/DC, 50/60 Hz
Supply voltage limits 19.2-30 V DC / 21.6-26.4 V AC
Current consumption 18 mA
Rated operational current [Ie] 3 A at 240 V AC-15 / 0.1 A at 600 V DC-13
Short-circuit protection 10 A cartridge fuse, type gG
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 57 mm
Net weight 0.056 kg
Country of origin FR
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • DNV
  • BV

Selection Notes

Pick the blue cap when panel colour-coding calls for a mandatory-action or reset indication; every colour in the XB5 AWB illuminated series keeps the same 1 NO + 1 NC block and 24 V AC/DC LED circuit. Choose XB5AW36B5 over the BA9s-bulb AW6 variants when the panel runs 24 V control power and a sealed LED is preferred over a replaceable bulb.

Technical Details

Short Description
Harmony XB5 illuminated push button, blue flush, LED, 24 V AC/DC, 1 NO + 1 NC, 22 mm.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AW36B5
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853650
