- Part number
- XB5AW33M5
- Model no
- XB5
Description
About the XB5
About the XB5

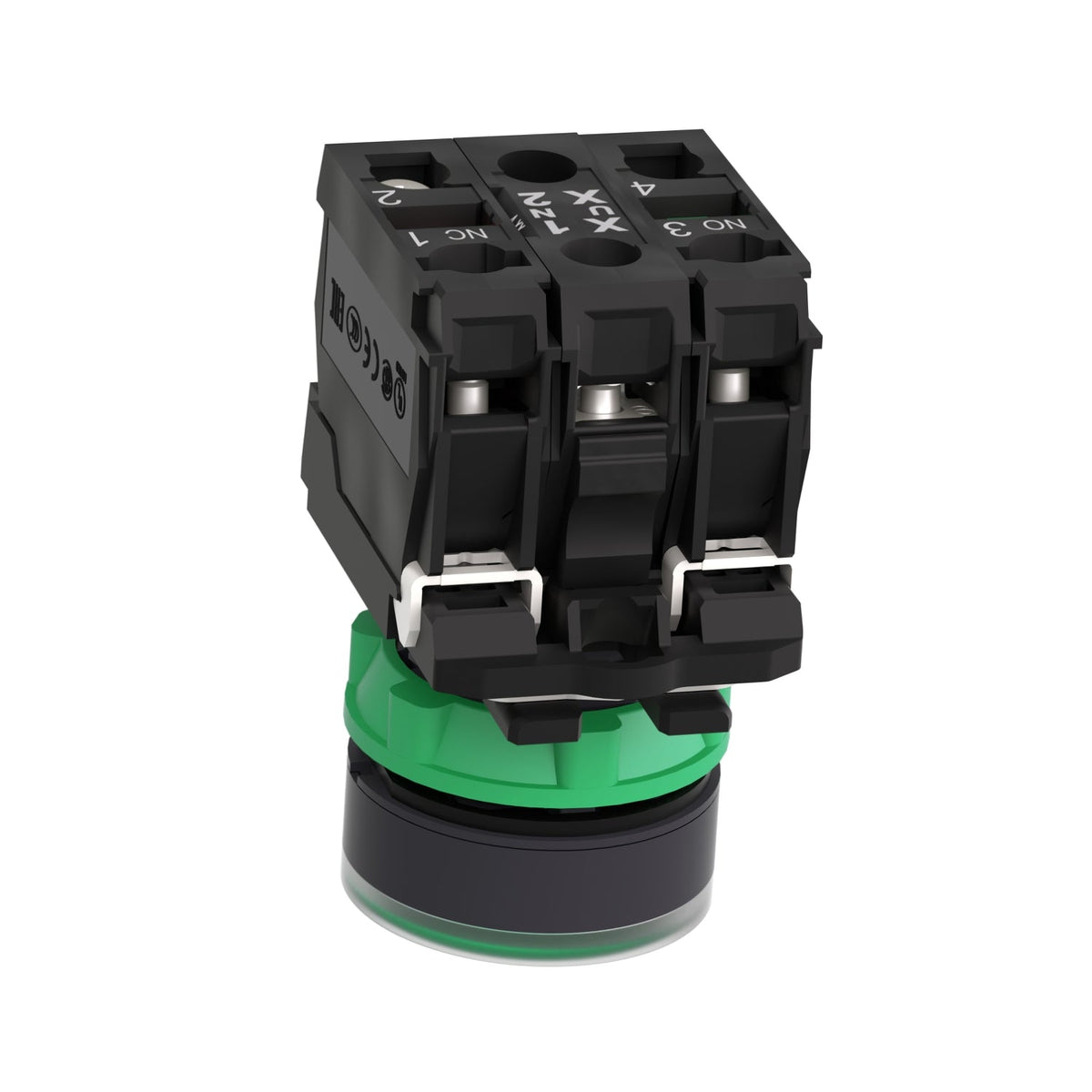

The Schneider Electric XB5AW33M5 is a Harmony XB5 illuminated push button for 22 mm panel cut-outs, with a green flush unmarked cap lit by an integral LED. It is a spring-return, 1 NO + 1 NC device supplied directly at 230...240 V AC through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K, and draws only 14 mA at rated voltage.
Certifications & Standards
- UL Listed
- CSA
- IEC 60947-1
- IEC 60947-5-1
- DNV
- BV
Selection Notes
Pick the green cap when panel colour-coding calls for a start or run/safe-condition indication; every colour in the XB5 AWM illuminated series keeps the same 1 NO + 1 NC block and 230...240 V AC LED circuit. Choose XB5AW33M5 over the 24 V AWB variants when the pushbutton is wired straight off the 230 V control supply without a separate low-voltage source.
Specification
Full specification
Main 19
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB5 |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Cap/operator or lens colour | Green |
Complementary 27
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Device presentation | Complete product |
Environment 15
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP69, IP69K, IP67 |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 92 specifications ↓ Show less ↑31 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AW33M5 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110904086 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.465 in (8.800 cm) |
| Package 1 Width | 1.339 in (3.400 cm) |
| Package 1 Length | 2.126 in (5.400 cm) |
| Package weight(Lbs) | 1.940 oz (55.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 13.164 lb(US) (5.971 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 130.082 lb(US) (59.004 kg) |
| Shipping weight | 0.056 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5AW33M5
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- IEC 60947-5-4
- IEC 60947-1
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-5-1
- UL 508
- JIS C8201-1
Quick answers
Questions about the XB5
Which supply voltage is XB5 rated for?
The rated operational voltage of XB5 is 230–240 V AC.
What is the HS code of XB5 for customs?
The tariff (HS) code on file for XB5 is 853650.
What is the EAN of XB5?
The EAN (GTIN) of XB5 is 3389110904086.
Where does XB5 ship from, and how fast?
XB5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
