Schneider Electric XB5AW3165 Harmony XB5 White Illuminated 22 mm BA9s 250 V 1NO+1NC Push Button

% $-11.68
Schneider Electric XB5AW3165 Harmony XB5 Illuminated Push Button White – BA9s 250 V
Schneider Electric XB5AW3165 Harmony XB5 Illuminated Push Button White – BA9s 250 V

Schneider Electric XB5AW3165 Harmony XB5 White Illuminated 22 mm BA9s 250 V 1NO+1NC Push Button

Brand: Schneider Electric
Reference No: XB5AW3165
Catalog No: XB5AW3165
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

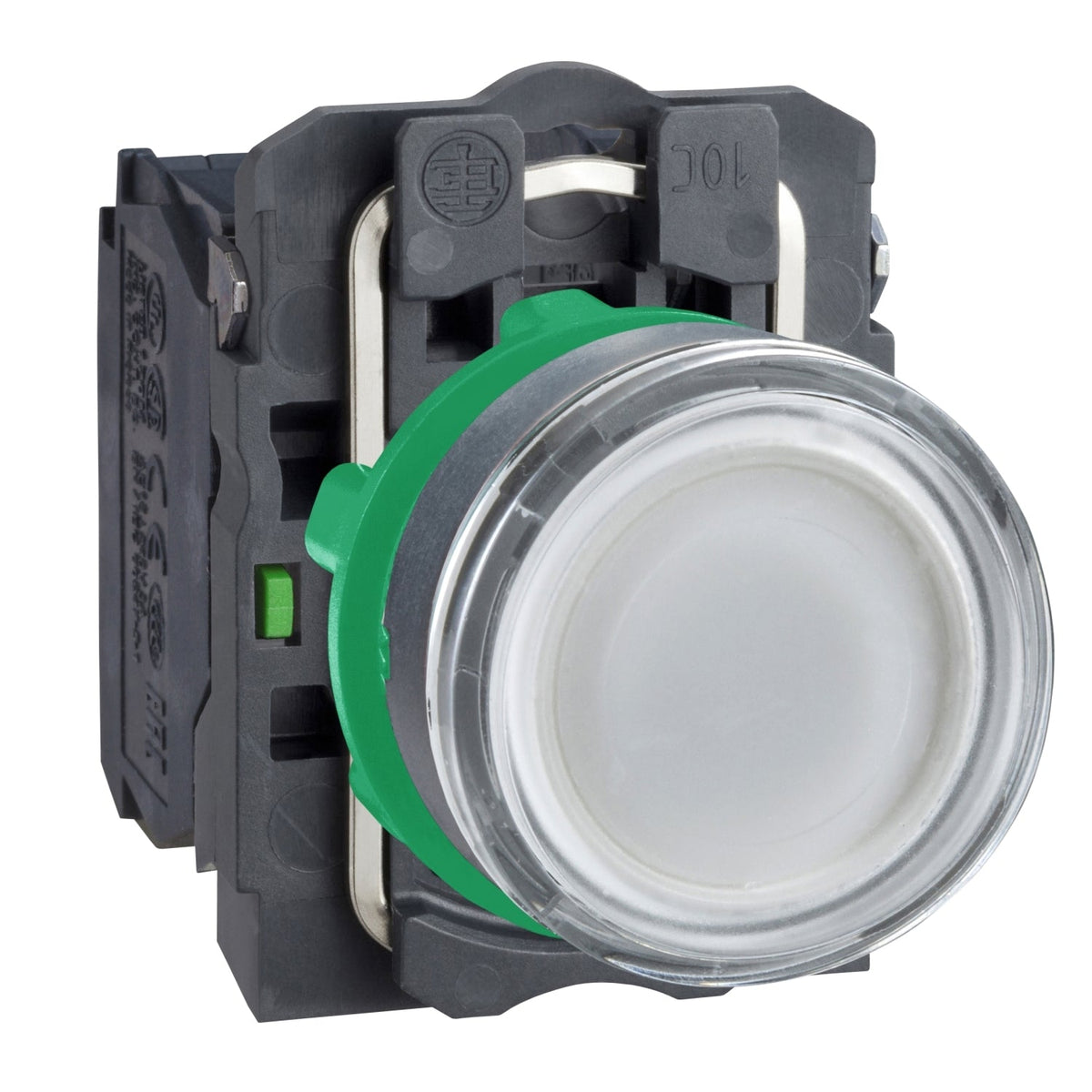

The Schneider Electric XB5AW3165 is a Harmony XB5 illuminated push button for 22 mm panel cut-outs, with a white flush unmarked cap over a BA9s bulb socket (bulb not supplied). It is a spring-return, 1 NO + 1 NC device rated up to 250 V through screw-clamp terminals, sealed to IP66/IP67/IP69/IP69K.

Technical Specifications

Reference XB5AW3165
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3389110904055
Product or Component Type Illuminated push-button
Device short name XB5
Mounting diameter 22.5 mm
Operator profile White flush, unmarked
Type of operator Spring return
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Light source Bulb not included
Bulb base BA 9s
Rated supply voltage [Us] ≤ 250 V
Rated insulation voltage [Ui] 600 V
Rated impulse withstand voltage [Uimp] 6 kV
Rated operational current [Ie] 3 A at 240 V AC-15 / 0.1 A at 600 V DC-13
Short-circuit protection 10 A cartridge fuse, type gG
Bezel material Dark grey plastic
Height x Width x Depth 42 x 30 x 54 mm
Net weight 0.057 kg
Country of origin CZ
IP degree of protection IP66 / IP67 / IP69 / IP69K
IK degree of protection IK05

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • DNV
  • BV

Selection Notes

Pick the white cap when panel colour-coding calls for a general-purpose/neutral indication; every colour in the XB5 AW6 illuminated series keeps the same 1 NO + 1 NC contact block and 250 V BA9s lamp circuit, so the swap is purely cosmetic. Choose XB5AW3165 over the 24 V or 230 V LED variants when the panel already stocks replaceable BA9s lamps for this contact arrangement.

Technical Details

Short Description
Harmony XB5 illuminated push button, white flush, BA9s socket, up to 250 V, 1 NO + 1 NC, 22 mm.
Rated Voltage (VAC)
250 V
Mounting Type
Panel, 22 mm cut-out
Protection Type
IP69K
Catalog No
XB5AW3165
Delivery Date (Days)
30 days
Model Number
XB5
Tariff Code
853650
