Harmony XB5

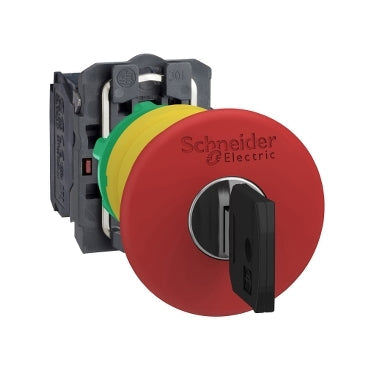

Schneider Electric XB5AS9445 Harmony XB5 40mm Red Mushroom Key-Release Emergency Stop Push Button

Harmony XB5 emergency stop button, 40mm red mushroom, key release, 1NC+1NO, IP66/IP69K.

Range of Product
Harmony XB5
Product or Component Type
Emergency stop push-button, Emergency switching off push-button
Device short name
XB5
Bezel material
Dark grey plastic
Fixing collar material
Plastic
Head type
Standard
EAN
3389110903737
Description

About the XB5

The Schneider Electric XB5AS9445 is a Harmony XB5 emergency stop / emergency switching-off push button with a 40 mm red mushroom head, trigger-action mechanical latching, and key release (key no. 455). It mounts in a 22 mm cutout, carries 1 NC + 1 NO contacts with positive opening, and is sealed to IP66/IP67/IP69/IP69K for washdown environments.

Certifications & Standards

  • CSA
  • LROS (Lloyds Register of Shipping)
  • BV
  • UL Listed
  • DNV
  • IEC 60204-1
  • JIS C8201-5-1
  • IEC 60947-5-4
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60364-5-53
  • ISO 13850
  • IEC 60947-5-5
  • IEC 60947-1
  • JIS C8201-1

Selection Notes

The XB5AS9445 uses trigger-action mechanical latching with key release (key 455), so the stop function stays engaged until a keyholder with the matching key resets it - a step up from plain twist-release e-stops where any operator can reset the circuit. Positive opening on its 1 NC + 1 NO contact block (IEC 60947-5-1 Annex K) guarantees the NC contact opens mechanically even if the contacts weld, which is why it suits safety-stop circuits rather than general switching without positive opening. Its IP66/IP67/IP69/IP69K rating and plastic bezel target high-pressure washdown and chemical-exposure environments specifically, beyond the sealing most panel-mounted e-stops need.

Applications

Emergency stop (E-STOP) and emergency machine-off (EMO) control on machines and panels requiring a key-controlled reset, mounted in a standard 22 mm panel cutout, with washdown-rated sealing for food, beverage, or wash-down process environments.

Specification

Full specification

64 values · Last verified 30 Oct 2026

Main 18

Range of Product Harmony XB5
Product or Component Type Emergency stop push-button, Emergency switching off push-button
Device short name XB5
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator trigger action and mechanical latching
Reset Key release
Operator profile Red mushroom Ø 40 mm, unmarked
Type of Keylock Key 455
Key withdrawal position Center
Contacts type and composition 1 NC + 1 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device presentation Complete product

Complementary 21

Height 1.7 in (43 mm)
Width 1.6 in (40 mm)
Depth 3.9 in (100 mm)
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Net Weight 0.247 lb(US) (0.112 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 44 N
Mechanical durability 300000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60204-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60364-5-53, ISO 13850, IEC 60947-5-5, IEC 60947-1, JIS C8201-1
Product Certifications CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 64 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5AS9445
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110903737

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.112 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
