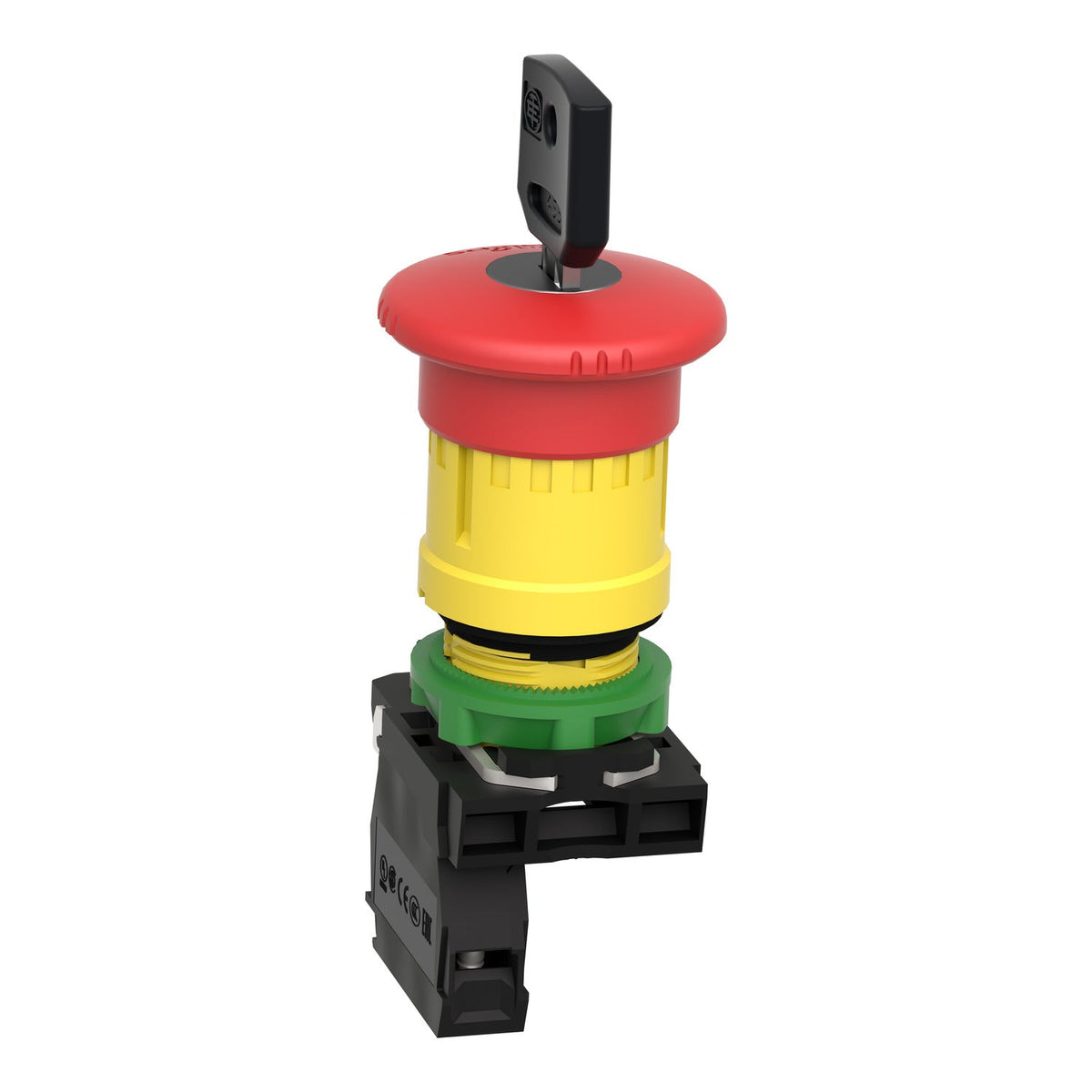

Schneider Electric XB5AS9442 E-Stop Red Mushroom 40mm Key-455 Release 1NC Stop Emergency Stop Push Button

Harmony XB5 emergency stop, red mushroom 40 mm, trigger latching, key 455 release, 1NC.

Range of Product
Harmony XB5
Product or Component Type
Emergency stop push-button, Emergency switching off push-button
Device short name
XB5
Bezel material
Dark grey plastic
Fixing collar material
Plastic
Head type
Standard
EAN
3606480623677
Description

About the XB5

The Schneider Electric XB5AS9442 is a Harmony XB5 emergency stop push button (EMS/EMO) with a 40 mm red mushroom head, trigger-action mechanical latching, key-455 release from the center position, and a single normally-closed (1NC) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out and is sealed to IP66/IP67/IP69/IP69K.

Certifications & Standards

  • CSA
  • Lloyd's Register
  • BV
  • UL Listed
  • DNV
  • ISO 13850
  • IEC 60947-5-5
  • IEC 60204-1

Selection Notes

Key 455 release restricts who can reset the circuit after an emergency stop to whoever holds the matching key, which the turn-to-release XB5AS8442 does not: any operator can clear that one by hand. This suits a machine where a stop event needs a deliberate, authorized reset step, for example after a safety investigation, rather than an immediate restart by anyone nearby. The single NC contact carries positive opening per IEC 60947-5-1 Appendix K, opening mechanically even on a welded contact, meeting ISO 13850's requirement for a dependable stop signal.

Specification

Full specification

63 values · Last verified 30 Oct 2026

Main 18

Range of Product Harmony XB5
Product or Component Type Emergency stop push-button, Emergency switching off push-button
Device short name XB5
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator trigger action and mechanical latching
Reset Key release
Operator profile Red mushroom Ø 40 mm, unmarked
Type of Keylock Key 455
Key withdrawal position Center
Contacts type and composition 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device presentation Complete product

Complementary 20

Height 1.7 in (43 mm)
Width 1.6 in (40 mm)
Depth 3.9 in (100 mm)
Terminals description ISO n°1 (11-12)NC
Net Weight 0.165 lb(US) (0.075 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel)
Mechanical durability 300000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards JIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, ISO 13850, IEC 60204-1, UL 508, IEC 60364-5-53, IEC 60947-5-4, JIS C8201-1
Product Certifications CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5AS9442
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480623677

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.075 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
