Schneider Electric XB5AS84W3B5 Illum. E-Stop Red 32mm 24V AC/DC 1NO+1NC Stop Button Emergency Stop Push Button

Harmony XB5 illuminated emergency stop, red 32 mm, turn to release, 24 V AC/DC, 1NO+1NC.

Rated operational voltage
24–DC V DC
EAN
3606489745615
Description

About the XB5

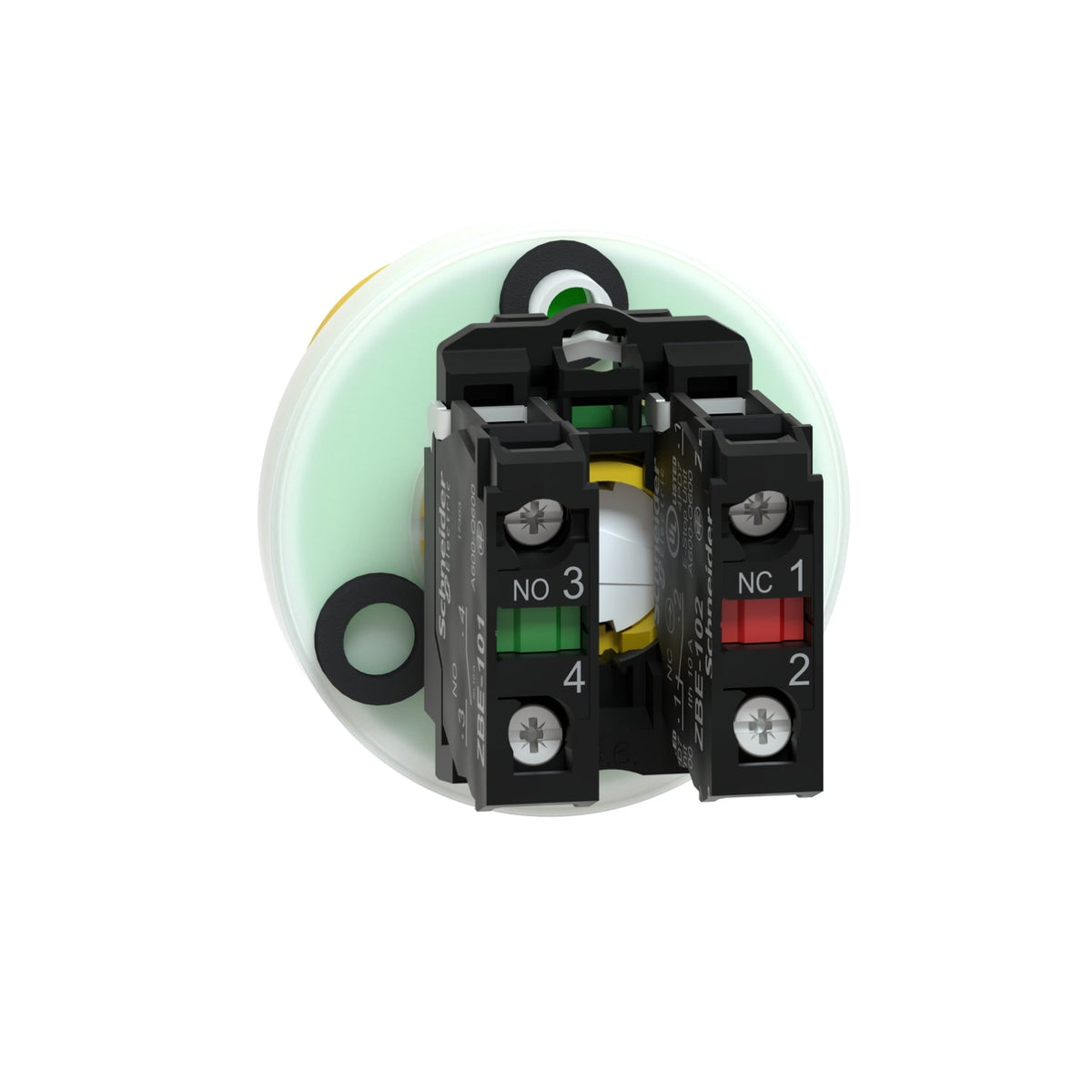

The Schneider Electric XB5AS84W3B5 is a Harmony XB5 illuminated emergency stop push button (EMS/EMO) with a red square 32 mm trigger-action head, mechanical latching, turn-to-release reset, and a 1NO+1NC contact block rated 10 A Ith. The integral white/red protected LED runs from a 24 V AC/DC supply. It operates across an ambient temperature of -40°C to 70°C for continuous industrial duty.

Certifications & Standards

  • UL Listed
  • CSA
  • EAC
  • CCC
  • IEC 60947-5-1
  • IEC 60947-5-5
  • ISO 21702
  • ISO 22196

Selection Notes

The single NC contact carries positive opening per IEC 60947-5-1 Appendix K for the hard-wired safety circuit, while the NO contact gives a separate status or alarm signal without being part of that circuit; the 1NO+2NC XB5AS84W3B41 is the version to specify where the safety architecture needs a second redundant NC channel instead. The protected white/red LED, lit from the 24 V AC/DC supply, confirms the stop is active even across the room, which a non-illuminated mushroom head cannot do. ISO 22196 antimicrobial treatment on the housing suits food, pharma, or other high-touch, hygiene-sensitive panels.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 20

Range of Product Harmony XB5
Product or Component Type Emergency stop push-button, Emergency switching off push-button
Device short name XB5
Bezel material Plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 1
Local signalling Red LED / white LED 24 V AC/DC
Light source Protected LED
[Us] rated supply voltage 24 V
Light source colour White, Red
Shape of signaling unit head Round
Type of operator trigger action and mechanical latching
Reset Turn to release
Operator profile Red square 32 mm, IEC
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw-clamp terminals, <= 2 x 1.5 mm² with or without cable end IEC 60947-1, Screw-clamp terminals, >= 1 x 0.22 mm² with or without cable end IEC 60947-1
Device presentation Complete product

Complementary 25

[Us] rated supply voltage 24 V AC/DC 50/60 Hz
Height 2.4 in (60 mm)
Width 2.4 in (60 mm)
Depth 3.3 in (85 mm)
Terminals description ISO n°1 (1-2)NC, (3-4)NO
Net Weight 0.236 lb(US) (0.107 kg)
Electrical insulation class Class II IEC 61140
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Device mounting Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm, Fixing hole 0.4 in (9 mm) +/- 0.5 mm
Fixing mode Fixing nut +/- 0.2)
Contacts usage Standard
Positive opening With NC contact IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel)
Mechanical durability 300000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
Resistance to electrostatic discharge 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Environment 9

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP degree of protection IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
IK degree of protection IK05 conforming to IEC 50102
Standards IEC 60947-5-1, IEC 60947-5-4, UL 508, ISO 21702, ISO 22196:2011, UL 60947-5-5, IEC 60947-5-5, NISD
Product Certifications UL Listed, CSA, EAC, CCC
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Show all 68 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5AS84W3B5
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489745615

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.107 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
