- Part number
- XB5AS84W3B41
- Model no
- XB5
Description
About the XB5
About the XB5

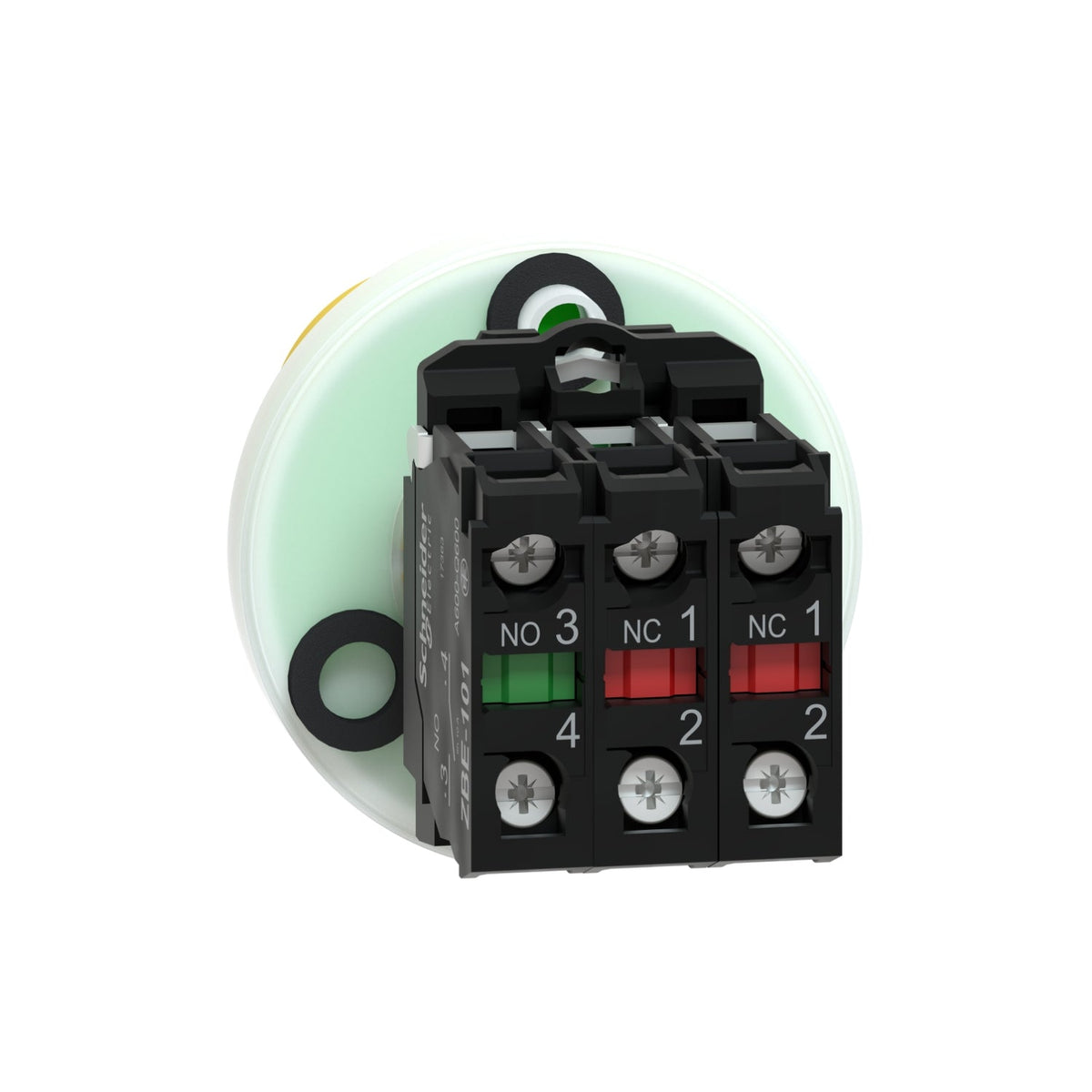

The Schneider Electric XB5AS84W3B41 is a Harmony XB5 illuminated emergency stop push button (EMS/EMO) with a red square 32 mm trigger-action head, mechanical latching, turn-to-release reset, and a 1NO+2NC contact block rated 10 A Ith. The integral white/red protected LED runs from a 24 V AC/DC supply. It operates across an ambient temperature of -40°C to 70°C for continuous industrial duty.
Certifications & Standards
- UL Listed
- CSA
- EAC
- CCC
- IEC 60947-5-1
- ISO 21702
- ISO 22196
Selection Notes
Two independent NC contacts let the safety circuit be wired with redundancy, a common requirement for higher safety-integrity architectures, while the single NO contact feeds a separate status or alarm signal without touching the safety loop; that is one more NC contact than the 1NO+1NC XB5AS84W3B5, which suits a simpler single-channel safety circuit. The protected white/red LED, lit from the 24 V AC/DC supply, confirms the stop is active even across the room, which a non-illuminated mushroom head cannot do. ISO 22196 antimicrobial treatment on the housing is relevant for food, pharma, or other high-touch, hygiene-sensitive panels.
Specification
Full specification
Main 20
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Emergency stop push-button, Emergency switching off push-button |
| Device short name | XB5 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 |
| Local signalling | Red LED / white LED 24 V AC/DC |
| Light source | Protected LED |
| [Us] rated supply voltage | 24 V |
| Light source colour | White, Red |
| Shape of signaling unit head | Round |
| Type of operator | trigger action and mechanical latching |
| Reset | Turn to release |
| Operator profile | Red square 32 mm, IEC |
| Contacts type and composition | 1 NO + 2 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw-clamp terminals, <= 2 x 1.5 mm² with or without cable end IEC 60947-1, Screw-clamp terminals, >= 1 x 0.22 mm² with or without cable end IEC 60947-1 |
| Device presentation | Complete product |
Complementary 25
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
|---|---|
| Height | 2.4 in (60 mm) |
| Width | 2.4 in (60 mm) |
| Depth | 3.3 in (85 mm) |
| Terminals description ISO n°1 | (1-2)NC, (3-4)NO |
| Net Weight | 0.258 lb(US) (0.117 kg) |
| Electrical insulation class | Class II IEC 61140 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Device mounting | Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm, Fixing hole 0.4 in (9 mm) +/- 0.5 mm |
| Fixing mode | Fixing nut +/- 0.2) |
| Contacts usage | Standard |
| Positive opening | With NC contact IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel) |
| Mechanical durability | 300000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| Resistance to electrostatic discharge | 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
Environment 9
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-1, IEC 60947-5-4, UL 508, ISO 21702, ISO 22196:2011 |
| Product Certifications | UL Listed, CSA, EAC, CCC |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Show all 79 specifications ↓ Show less ↑25 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AS84W3B41 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489745622 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.8 in (7.0 cm) |
| Package 1 Width | 2.8 in (7.0 cm) |
| Package 1 Length | 3.9 in (10.0 cm) |
| Package weight(Lbs) | 4.4 oz (124.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 12.128 lb(US) (5.501 kg) |
| Shipping weight | 0.117 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5AS84W3B41
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CCC
- EAC
- IEC 60947-5-1
- IEC 60947-5-4
- UL 508
- ISO 21702
- ISO 22196:2011
Quick answers
Questions about the XB5
Which supply voltage is XB5 rated for?
The rated operational voltage of XB5 is 24–DC V DC.
What is the HS code of XB5 for customs?
The tariff (HS) code on file for XB5 is 853650.
What is the EAN of XB5?
The EAN (GTIN) of XB5 is 3606489745622.
Where does XB5 ship from, and how fast?
XB5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
