- Part number
- XB5AS8442
- Model no
- XB5
Description
About the XB5
About the XB5

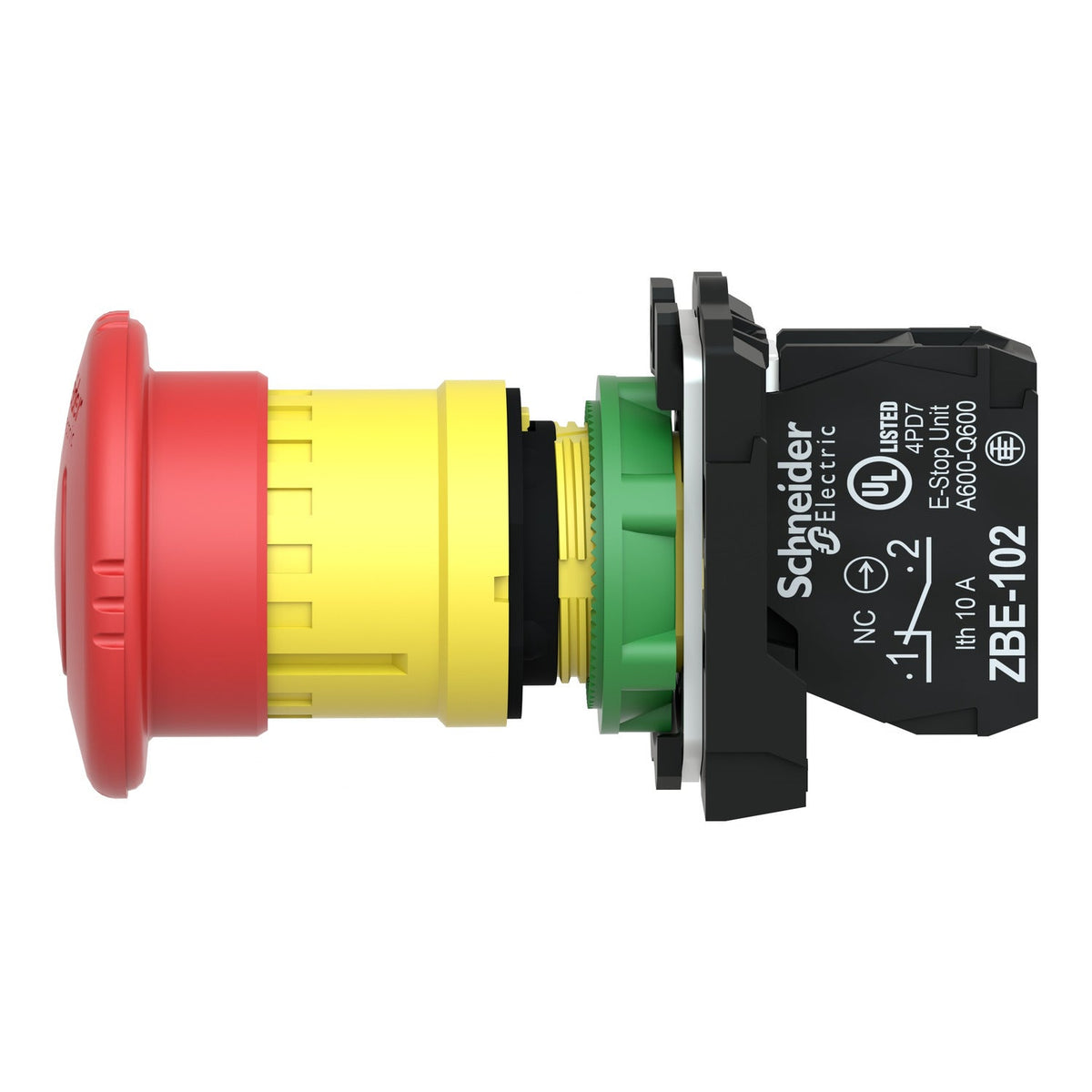

The Schneider Electric XB5AS8442 is a Harmony XB5 emergency stop push button (EMS/EMO) with a 40 mm red mushroom head, trigger-action mechanical latching, turn-to-release reset, and a single normally-closed (1NC) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out and is sealed to IP66/IP67/IP69/IP69K.
Certifications & Standards
- CSA
- Lloyd's Register
- BV
- UL Listed
- DNV
- ISO 13850
- IEC 60947-5-5
- IEC 60204-1
Selection Notes
The trigger-action mechanical latch stays engaged once pressed and only releases on a deliberate quarter-turn, meeting ISO 13850's requirement that an emergency stop cannot reset itself or be released by a second accidental push. The single NC contact carries positive opening per IEC 60947-5-1 Appendix K, so it opens mechanically even if the contact surfaces have welded, guaranteeing the stop signal on demand. With one NC contact only, this unit suits a single safety circuit input; choose the XB5AS8445 (1NC+1NO) where the control system also needs a separate monitoring or status signal.
Specification
Full specification
Main 16
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Emergency switching off push-button, Emergency stop push-button |
| Device short name | XB5 |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | trigger action and mechanical latching |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Device presentation | Complete product |
Complementary 19
| Height | 1.7 in (43 mm) |
|---|---|
| Width | 1.6 in (40 mm) |
| Depth | 3.2 in (82 mm) |
| Terminals description ISO n°1 | (11-12)NC |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.2 in (4.3 mm) total travel) |
| Mechanical durability | 300000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1, IEC 60204-1, IEC 60947-5-1, ISO 13850, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60364-5-53, IEC 60947-5-5, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AS8442 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110575453 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.057 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB5AS8442
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- JIS C8201-5-1
- IEC 60204-1
- IEC 60947-5-1
- ISO 13850
- CSA C22.2 No 14
- IEC 60947-5-4
- IEC 60947-1
- UL 508
- IEC 60364-5-53
- IEC 60947-5-5
- JIS C8201-1
Quick answers
Questions about the XB5
What is the HS code of XB5 for customs?
The tariff (HS) code on file for XB5 is 853650.
What is the EAN of XB5?
The EAN (GTIN) of XB5 is 3389110575453.
Where does XB5 ship from, and how fast?
XB5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
