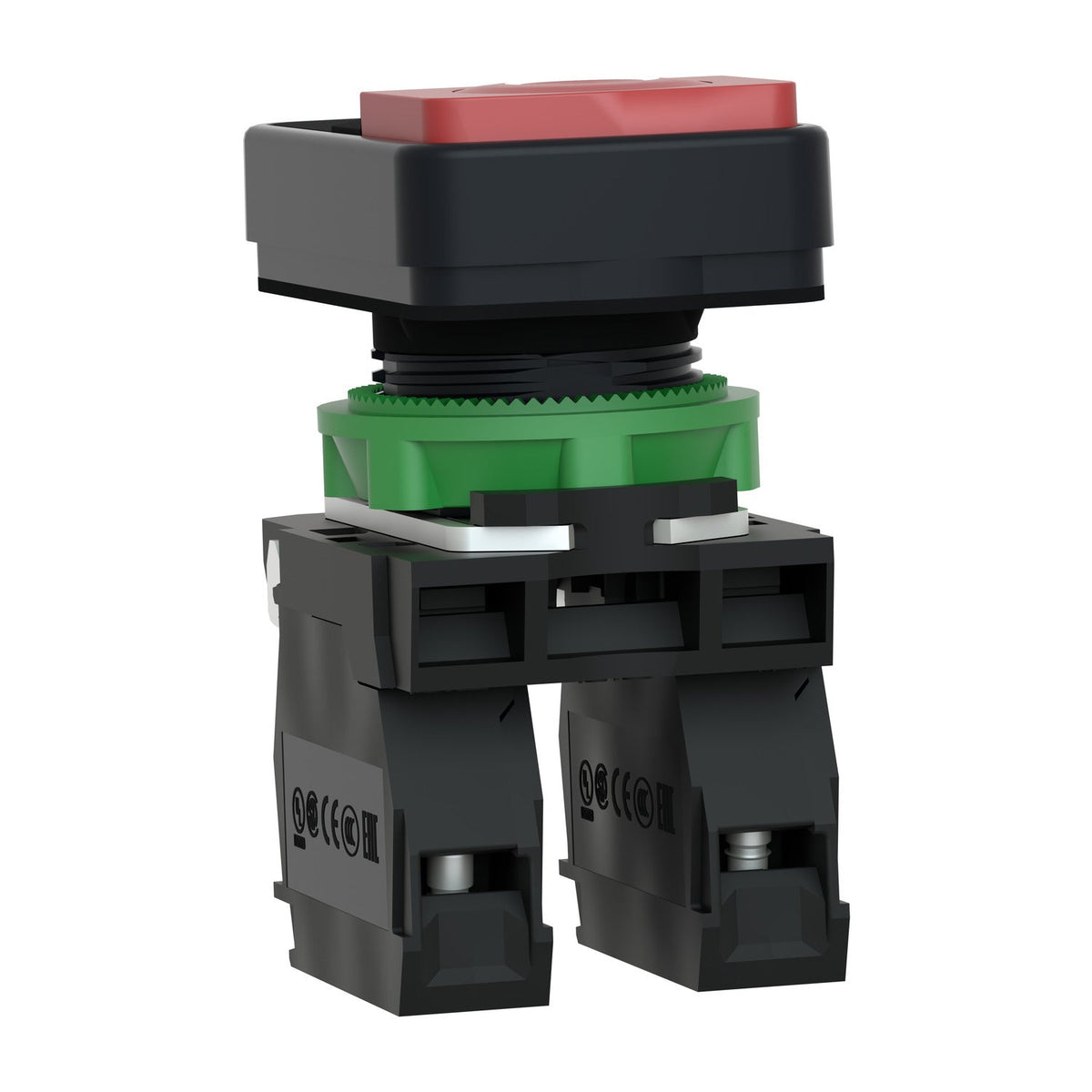

Schneider Electric XB5AL73415 Harmony XB5 Double-Headed Push Button Green I Red O 22 mm 1NO+1NC Push Button

Harmony XB5 double-headed push button, green I + red O, 22 mm, 1NO+1NC.

Range of Product
Harmony XB5
Product or Component Type
Double-headed push-button
Device short name
XB5
Bezel material
Dark grey plastic
Fixing collar material
Plastic
Head type
Standard
EAN
3389119043519
Description

About the XB5

The Schneider Electric XB5AL73415 is a Harmony XB5 double-headed push button combining a green flush head marked I with a red projecting head marked O, in a single 22.5 mm panel cut-out, giving a 1NO+1NC contact set for start and stop commands from one component.

Certifications & Standards

  • CSA
  • Lloyd's Register
  • BV
  • UL Listed
  • DNV
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

Combining the green I start head and red O stop head under one 22.5 mm cut-out saves a panel hole compared with mounting two separate push buttons, which matters on compact local-control stations. The red O head carries the NC contact with positive opening per IEC 60947-5-1 Appendix K, so the stop function fails safe on a welded contact just as a single-headed red XB5AA4x unit would. The green I head's NO contact switches the start command directly into a PLC input or control-relay coil within its 3 A/240 V AC-15 rating.

Specification

Full specification

63 values · Last verified 30 Oct 2026

Main 15

Range of Product Harmony XB5
Product or Component Type Double-headed push-button
Device short name XB5
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Shape of signaling unit head Rectangular
Type of operator spring return
Operator profile 1 flush - 1 projecting push-buttons
Operators description Green ''I'' - red ''O''
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1, Spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Device presentation Complete product

Complementary 23

Height 2.0 in (50 mm)
Width 1.2 in (30 mm)
Depth 2.3 in (59 mm)
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Net Weight 0.117 lb(US) (0.053 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking White marking when green, red or black caps, Black marking when white caps
Operator profile Green flush, I white), Red projecting, O white)
Contacts usage Standard contacts
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 3.5 N NC changing electrical state, 3.8 N NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP67 IEC 60529, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, UL 508, JIS C8201-1
Product Certifications CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
